Equinox HD10 Underwater Housing for Panasonic

Search your instruction manual in PDF to download

User Manual for Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202

Click to enlarge the picture
Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202 Contents of the user manual for the Equinox HD10 Underwater Housing for Panasonic
  • Product category: Camcorders & Housings Equinox
  • Brand: Equinox
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Equinox Camcorders & Housings

Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202 Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202 Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202 Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202 Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202
User manual for the Equinox HD10 Underwater Housing for Panasonic contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Equinox product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Equinox user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Equinox product will considerably shorten its lifespan!



Product description

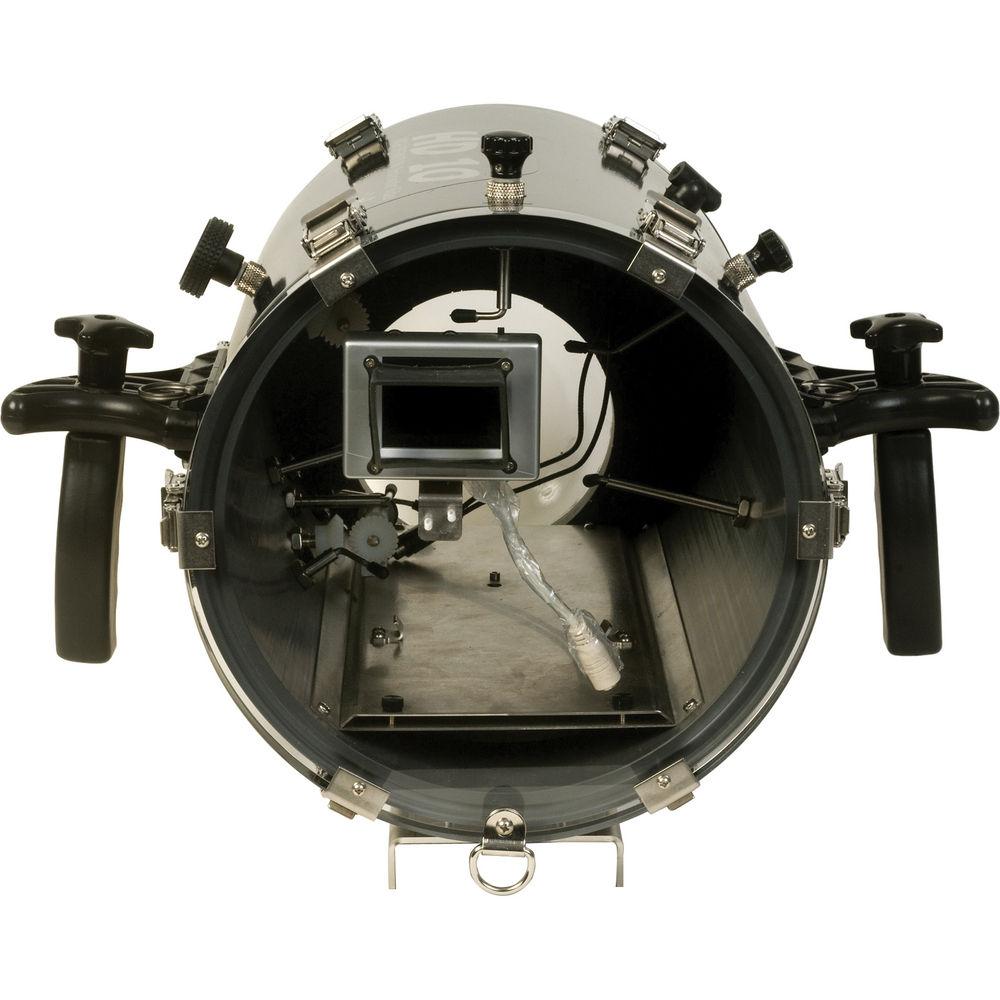

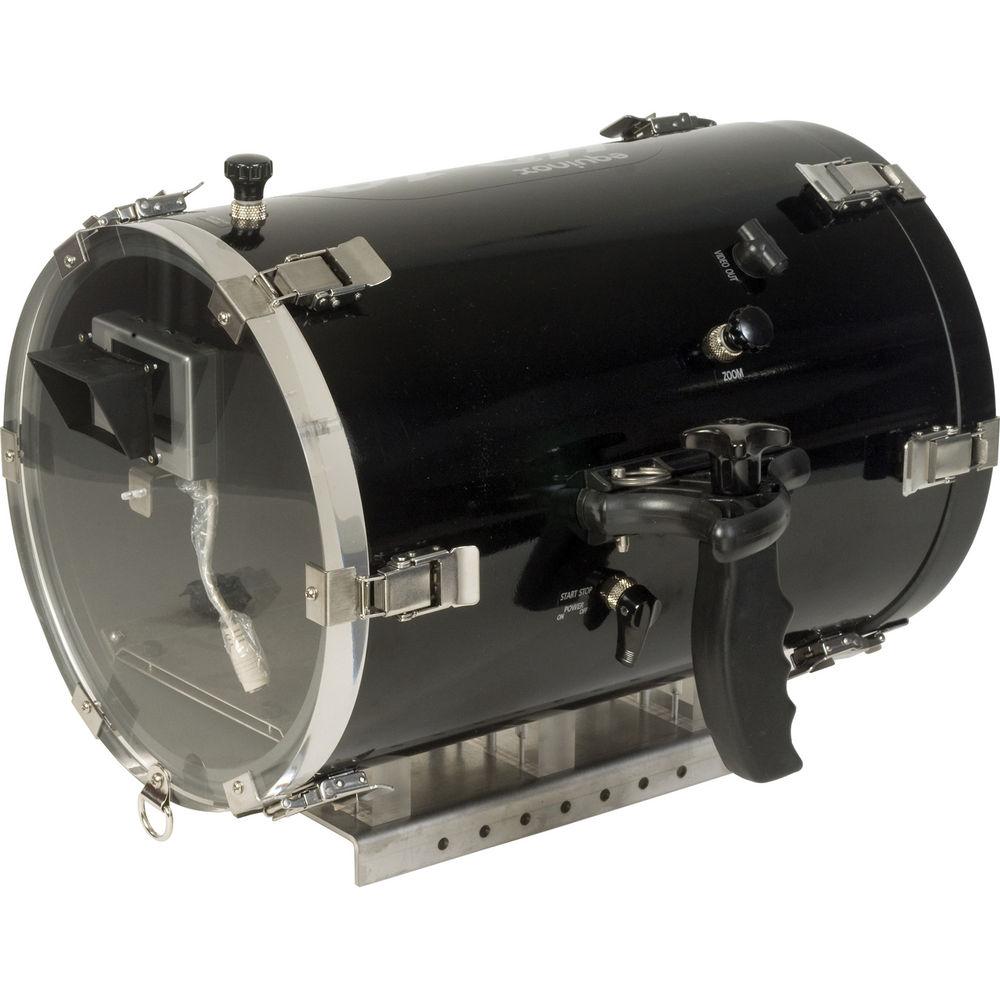

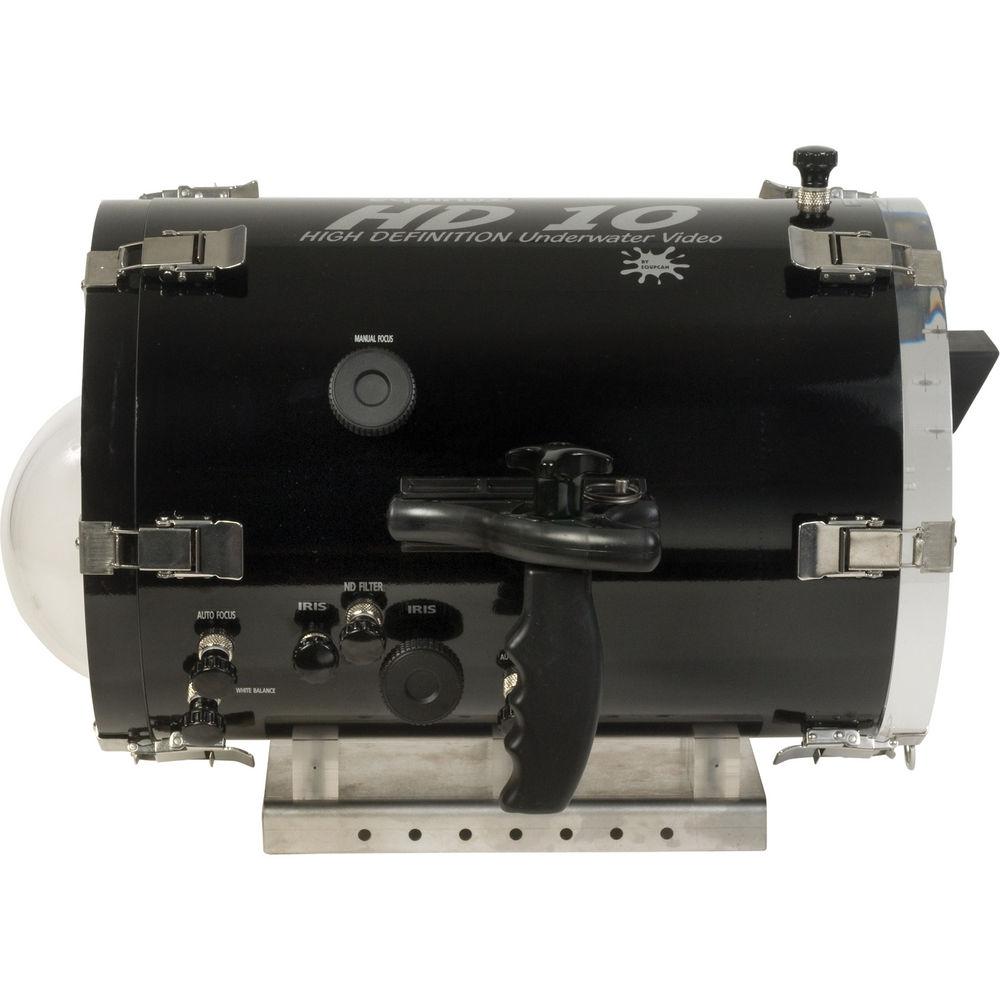

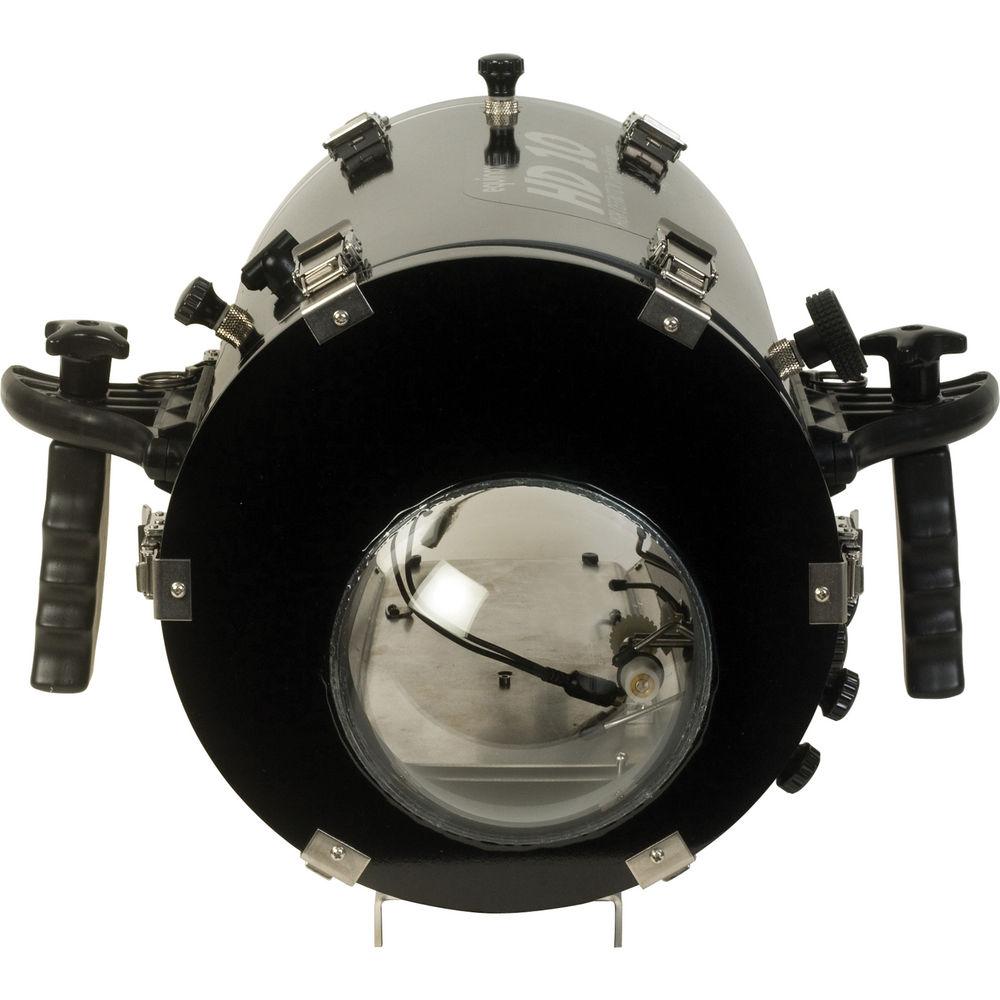

This Equinox HD10 mechanical underwater housing is designed for the Panasonic AG-HVX200 and AG-HVX202 camcorders. The corrosion-resistant housing is constructed with rugged and durable PVC material with 1" cast acrylic face plates and stainless-steel hardware; it is rated down to 200'. The included optical dome port will correct for the size distortion that happens underwater, and will accommodate many wide-angle conversion lenses.Mechanical controls include: Power on/off, Record start/stop, Zoom, ND filter, Auto focus, Iris, White balance, Manual focus gear, Iris gear, Auto/manual, and Power on/off for LCD monitor. The ballast release system, and video out EO bulkhead comes standard. This will allow you to do surface feeds. A 2.5" color LCD monitor with its own rechargeable battery is included with the housing.
    Controls
  • Mechanical and geared controls include:
    • Power on/off
    • Record start/stop
    • Zoom
    • ND filter
    • Auto focus
    • Iris
    • White balance
    • Manual focus gear
    • Iris gear
    • Auto/manual
    • Power on/off for LCD monitor
    BRS (Ballast Release System)
  • For easy travel or if trouble occurs on a dive, simply pull the quick-release pin on the wings in order to release the wings and handle (ballast). The housing now becomes positive and shoots to the surface.
    Lightweight, Durable & Strong
  • Housing body construction is rugged, durable PVC material, with stainless-steel hardware
    Stable
  • Rubber feet for stability even on a rocking boat
    D-Ring
  • D-ring on rear plate for easy hook up to a lanyard
    Depth Rated
  • Maximum depth of 200'
    Easy Mounting
  • Tray slide mounting system for easy removal of camera
In the Box Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202
  • 2.5" Color LCD Monitor w/ Battery and Charger
  • Carrying Strap
  • Spare Parts Kit (Extra O-Ring and Miscellaneous Hardware)
  • 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Equinox HD10 Underwater Housing for Panasonic AG-HVX200 and AG-HVX202 in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Equinox HD10 Specs

    Construction PVC plastic, stainless-steel hardware and 1" cast acrylic front & rear face plates
    Control Type Mechanical
    Controls Power on/off, Record start/stop, Zoom, ND filter, Auto focus, Iris, White balance, Manual focus gear, Iris gear, Auto/manual, Power on/off for LCD monitor
    Depth Rating 200' (60m)
    Buoyancy Neutral
    Port Curved optical dome
    Filter Not included
    Wide Angle Lens Not included
    Microphone Optional (cat #UWMIC)
    Moisture Alarm No
    Camcorder Mounting 2 Stainless-steel tray system
    Pluggable Underwater Connector EO video out bulkhead
    Color Black
    Dimensions (LxWxH) 13 x 11 x 14" (330.2 x 279.40 x 355.60mm)
    Weight (without Camcorder) 55 lbs (24.95kg) with ballast
    Package Weight 65.0 lb
    Box Dimensions (LxWxH) 25.3 x 15.5 x 15.2"
