User Manual for Ergotron LX Dual Desk Mount Stacking Arm for Displays up to 40" Click to enlarge the picture
Contents of the user manual for the Ergotron LX Dual Desk Mount Stacking
- Product category: Monitor Table Top Stand Mounts Ergotron
- Brand: Ergotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ergotron Monitor Table Top Stand Mounts
 |
User manual for the Ergotron LX Dual Desk Mount Stacking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ergotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ergotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ergotron product will considerably shorten its lifespan!
|

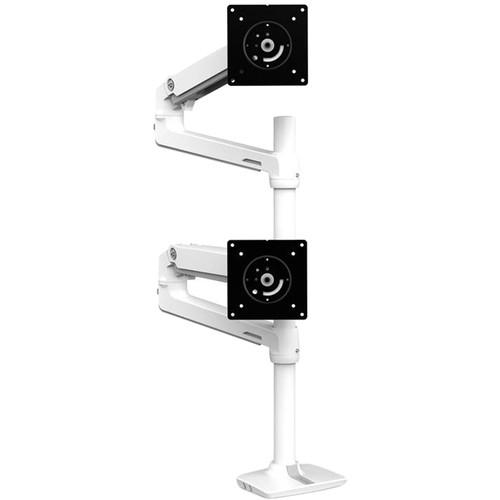

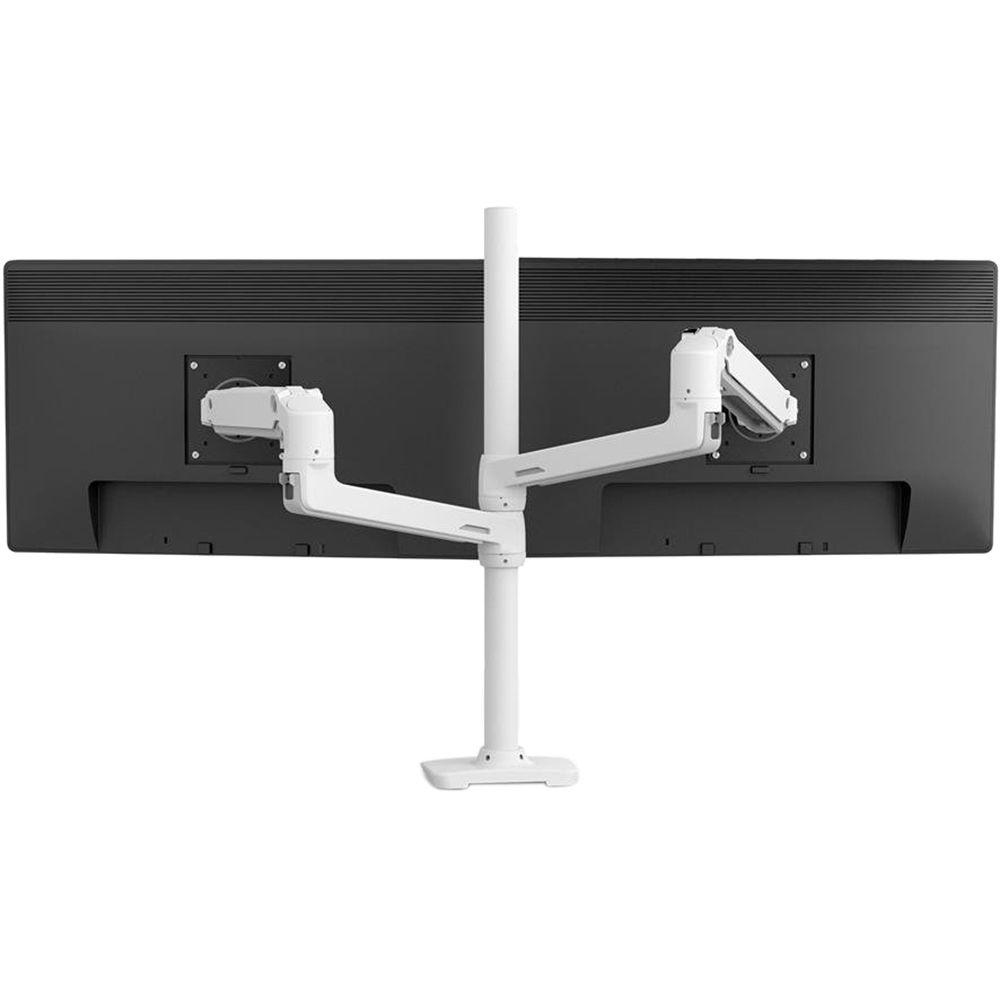

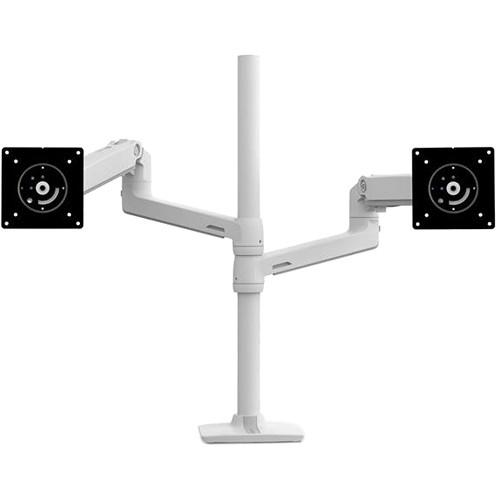

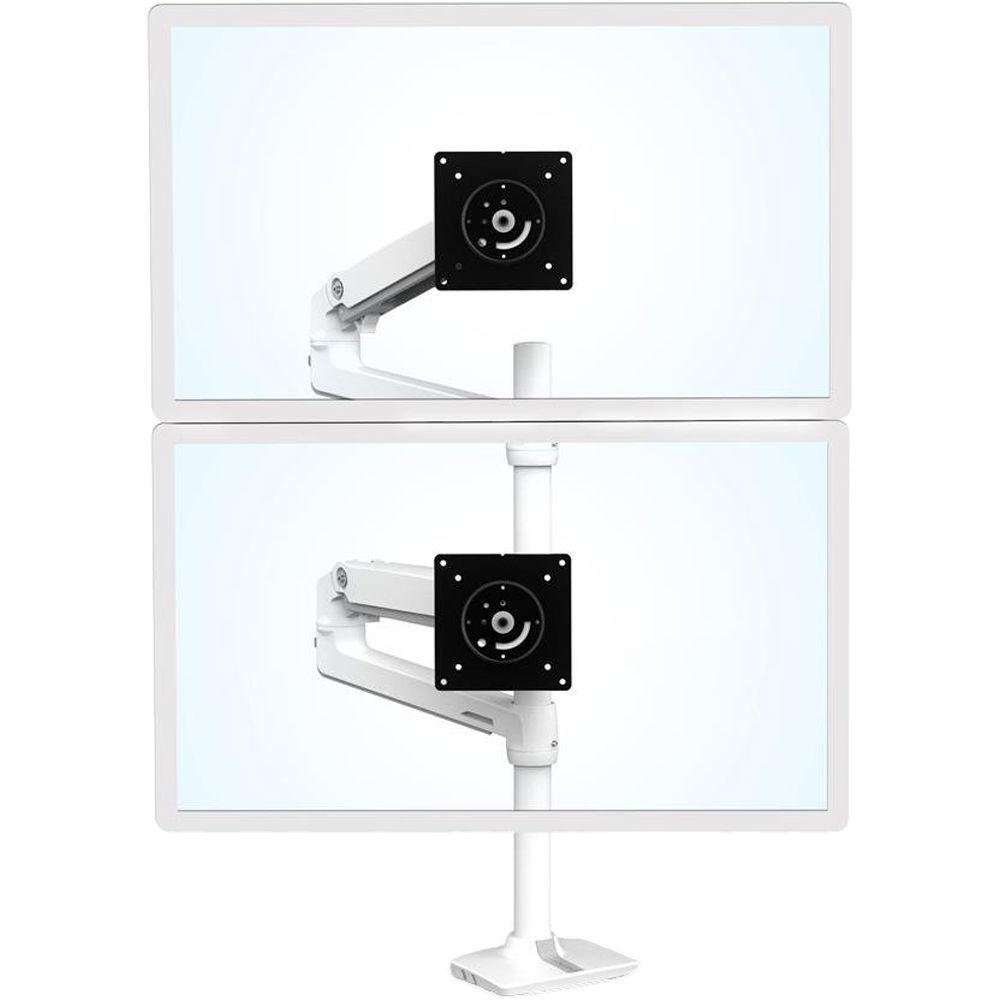

Product description Mount two monitors to your desk using the white Ergotron LX Dual Desk Mount Stacking Arm. Once installed, its Constant Force lift-and-pivot motion technology helps make it easy to manipulate the displays to ensure maximum viewing comfort. The mount is designed to accommodate displays up to 40" with 75 x 75 or 100 x 100mm VESA patterns, weighing from 7 to 20 pounds, and allows them to be lifted up to 13", tilted up to 75°, and panned and rotated up to 360°. -
- 22"-tall pole provides configuration flexibility and accommodates displays up to 40"
- Position displays at your preferred comfort level
- Designed to help reduce eye, back, and neck strain
- Folding arms help free up space in constrained areas
- Two-piece mounting clamp has keyhole-shaped holes to expedite assembly, and two clamping screws for secure installation
- Turn one or both displays from landscape to portrait mode, enabling viewing of entire pages without scrolling
- Constant Force lift-and-pivot motion technology
- Snap-fit cap helps secure interface of arms to extensions for enhanced stability
- Add up to two additional displays with optional accessories
- Can be configured to hold a laptop instead of a display with an optional accessory
UPC: 698833061581 In the Box Ergotron LX Dual Desk Mount Stacking Arm for Displays up to 40" (White) - Assembly Hardware
- Mounting Hardware
- Limited 10-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ergotron LX Dual Desk Mount Stacking Arm for Displays up to 40" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersErgotron 45-509-216 Specs | | | Supported Screen Sizes | Up to 40" / 102.0 cm | | Number of Displays Supported | 1 | | Load Capacity | 20 lb / 9.1 kg (Per Arm) | | Mounting-Hole Pattern | 75 x 75 to 100 x 100 mm | | Orientation | Landscape, Portrait | | Supported Grommet Size | Width: 0.5 to 2.5" / 13 to 64 mm
Depth: 0.8 to 2.2" / 20 to 57 mm | | Clamp Desk Compatibility | 0.5 to 2.6" / 11 to 66 mm | | | | Rotation Adjustment | 360° | | Tilt Adjustment | 75° | | Swivel Adjustment | 360° | | Height Adjustment | 13.0" / 33.0 cm | | | | Material of Construction | Aluminum, Steel | | Pole Height | 22.00" / 55.9 cm | | Weight | 19 lb / 8.6 kg | | | | Package Weight | 23.35 lb | | Box Dimensions (LxWxH) | 18.0 x 13.3 x 7.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
