User Manual for Ergotron LX Wall Mount Keyboard Arm Click to enlarge the picture
Contents of the user manual for the Ergotron LX Wall Mount Keyboard Arm
- Product category: Keyboard Drawers Ergotron
- Brand: Ergotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ergotron Keyboard Drawers
 |
User manual for the Ergotron LX Wall Mount Keyboard Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ergotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ergotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ergotron product will considerably shorten its lifespan!
|

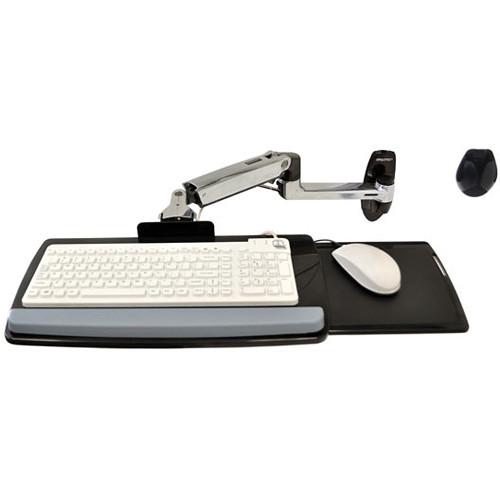

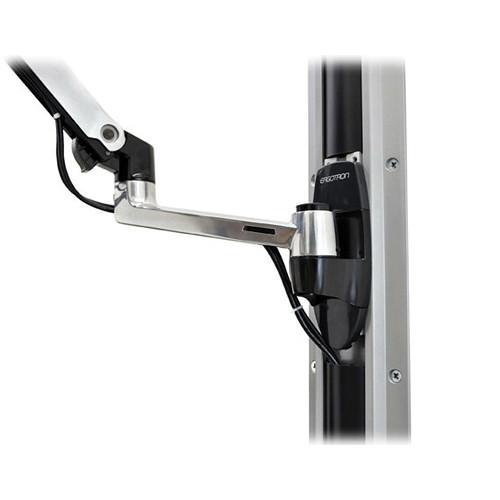

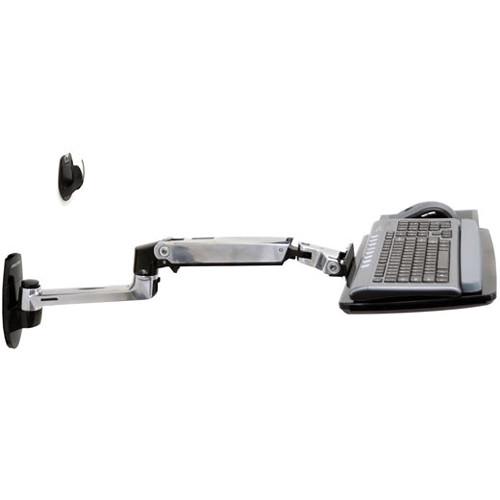

Product description The LX Wall Mount Keyboard Arm from Ergotron helps you to position your keyboard for maximum comfort and productivity. It attaches to sturdy vertical surfaces or wall tracks via a bracket (97-091, sold separately), while providing vertical and side-to-side motion. Constant Force lift-and-pivot motion technology allows you to position your keyboard with just a light touch. The arm extends the keyboard tray up to 35" and you can also adjust height up to 13". It folds straight up at 90° to protrude just 3.5" from the wall. The ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry to avoid repetitive-stress injuries while increasing comfort and productivity. Fasteners for direct attachment to wood and metal studs or concrete surface are not included. - Arm extends keyboard tray out up to 35" and also features height adjustment of 13"
- Creates a complete workstation when paired with the LX LCD arm
- Simple installation and easy operation
- Polished aluminum construction offers better durability and enhanced aesthetics
- Snap-fit cap secures interface of arms to extensions for better stability
- Mouse tray slides out to left or right, depending on user preference
- Folds to within 3.5" of wall in storage position
- Integrated cable management
- Base includes theft deterrent anchor holes for cable locks
- Passes Ergotron's 10,000-cycle motion test
UPC: 698833012040 In the Box Ergotron LX Wall Mount Keyboard Arm 1 x Extension 1 x Wall Mount Base 1 x Keyboard Tray 1 x Mouse Tray 1 x Mouse Holder 1 x Wrist Rest Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ergotron LX Wall Mount Keyboard Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersErgotron 45-246-026 Specs | Weight Capacity | 5.0 lb (2.2 kg) | | Lift | 13.0" / 33.0 cm | | Extension From Wall | 35.0" / 88.9 cm | | Folded Dimensions | 3.5" / 8.9 cm from wall | | Tilt | Backtilt: 5° when in down position
Folded: 90° upright in storage position | | Pan | 360° | | Mounting Options | Attaches directly to sturdy vertical surfaces
Attaches to wall track using bracket 97-091 (sold separately) | | Construction Material | Polished aluminum | | Dimensions | Keyboard Size: 17.5 x 10.1" / 44.5 x 25.7 cm | | Weight | 9.0 lb / 4.1 kg | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 20.2 x 11.3 x 7.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
