User Manual for Ergotron Neo-Flex Extend LCD Arm Click to enlarge the picture
Contents of the user manual for the Ergotron Neo-Flex Extend LCD Arm
- Product category: Monitor Table Top Stand Mounts Ergotron
- Brand: Ergotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ergotron Monitor Table Top Stand Mounts
 |
User manual for the Ergotron Neo-Flex Extend LCD Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ergotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ergotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ergotron product will considerably shorten its lifespan!
|

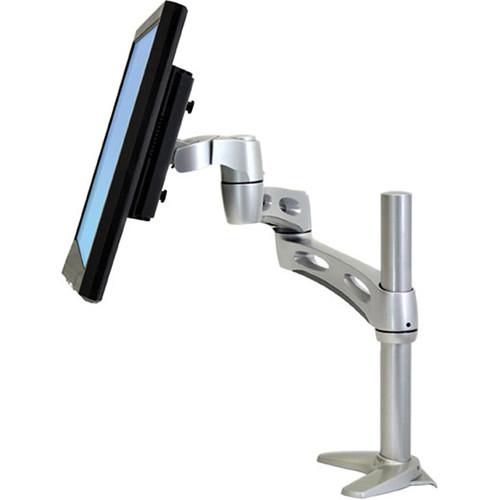

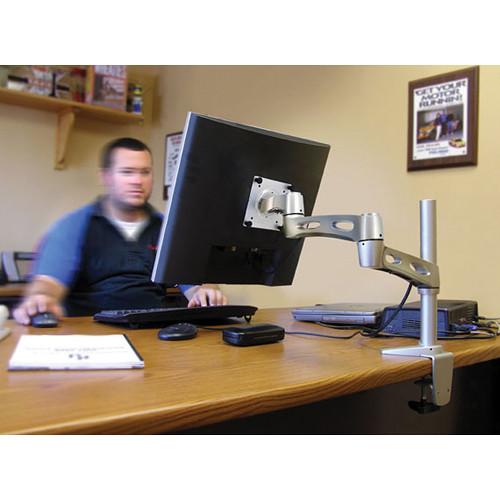

Product description Mount your 7 to 20 lb display to your desktop with the Ergotron Neo-Flex Extend LCD Arm. It supports displays up to 24" with 75 x 75 or 100 x 100mm VESA patterns and will connect via the included edge-of-desk clamp or the included grommet mount. It provides up to 80° of tilt adjustment and 360° of pan and rotation adjustment. Your display can extend up to 22" from the pole, and the height is adjustable up to 9.5". Integrated cable management will help keep your wiring safe and neat. Note: Monitor depth greater than 2" may diminish weight capacity; height adjustment may be limited by display size. - Features 3-point telescoping motion to position your display for your preferred viewing angle and distance
- Compact design helps free up desktop space

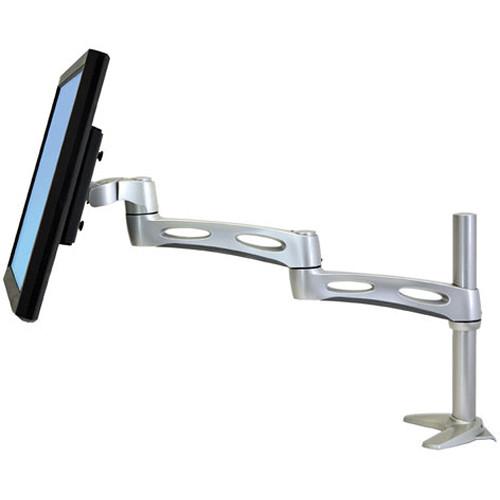

- Extends display out up to 22" and allows you to push it out of the way when not in use
- Designed for easy installation and flexibility

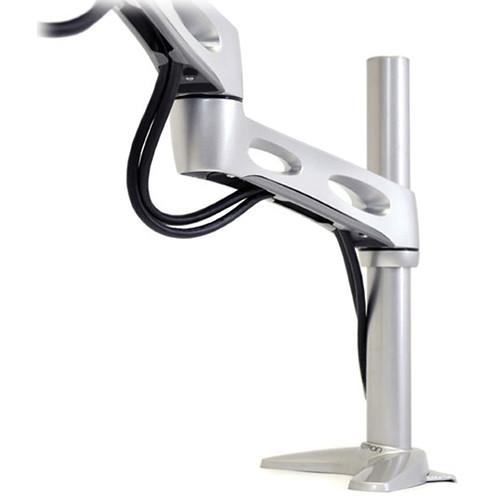

- Cable management feature routes cables under the arm, out of the way
- Provides display position adjustment while maintaining touch-screen stability
- Allows your display to be rotated for portrait or landscape viewing

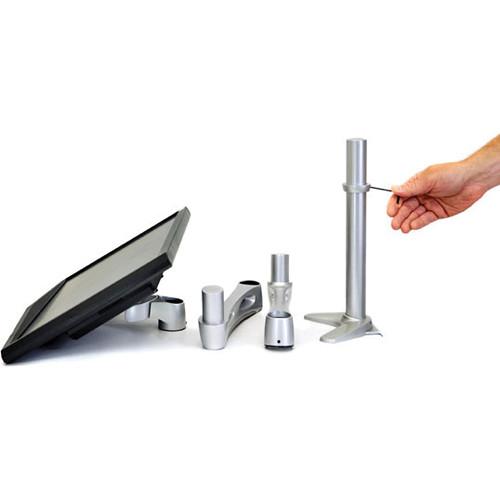

- 9.5" variable height adjustment allows arm installation at different heights on the pole
- Install one or both arm extensions, or only the LCD pivot
- Lock-out feature can be used to prevent portrait-to-landscape rotation
UPC: 698833010664 In the Box Ergotron Neo-Flex Extend LCD Arm Desk Clamp Grommet Mount Assembly Hardware Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ergotron Neo-Flex Extend LCD Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersErgotron 45-235-194 Specs | Weight Capacity | 7 to 20 lb (3.1 to 9.1 kg) | | Supported Screen Sizes | Up to 24" (60.96 cm) | | VESA Pattern | 75 x 75, 100 x 100 mm | | Desk Mounting Configuration | Clamp: 0.5 to 1.875" (13 to 48 mm)
Grommet: 0.3125 to 2" (8 to 51 mm) wide, up to 2.5" (63 mm) thick | | Tilt | 80° | | Pan | 360° | | Rotation | 360° | | Extension | Up to 22" (56 cm) | | Height Adjustment | 9.5" (24 cm) | | Construction Material | Aluminum, plastic, and steel | | Dimensions (W x H x D) | In Low Position: 4.25 x 16.5 x 3.63" (10.8 x 41.9 x 9.2 cm) | | Weight | 8.3 lb (3.8 kg) | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 19.2 x 11.6 x 6.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
