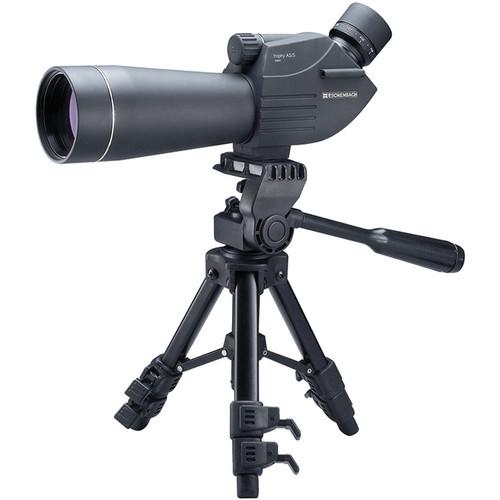

User Manual for Eschenbach Optik 15-45x60 Trophy S Spotting Scope Kit Click to enlarge the picture
Contents of the user manual for the Eschenbach Optik 15-45x60 Trophy S Spotting
- Product category: Spotting Scopes Eschenbach Optik
- Brand: Eschenbach Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eschenbach Optik Spotting Scopes
|
User manual for the Eschenbach Optik 15-45x60 Trophy S Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eschenbach Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eschenbach Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eschenbach Optik product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More Eschenbach combines high magnification and portability in the 15-45x60 Trophy S Spotting Scope Kit. The kit includes a 45° angled-viewing spotting scope with a 60mm objective and portable tabletop tripod. The scope delivers bright and clear images, thanks to the fully multi-coated optics and BAK4 prisms, which maintain true color images. Its large aperture collects enough light to provide great visibility in most lighting conditions, even at dusk or dawn. Together with full fog and waterproofing, it makes an ideal companion for most outdoor hobbies and activities like bird-watching, wildlife observation, or traveling regardless of geographic location or weather conditions.
To provide a stable support for long-duration observations, and to remove jitter at high magnifications, the kit includes a portable tripod with a tilting head. The tripod connects to the scope's built-in tripod socket and features three telescoping legs with flip locks for security and non-slip feet for stability on any terrain. - Optical Performance
- BAK4 prisms
- Fully multi-coated optics
- Wide 60mm objective lens
- 15-45x zoom magnification
- Minimum focus: 16.5'
Use and Handling
- Built-in tripod mount
- Exit pupil 4-1.3mm
- Eye relief 2-12mm
- Zoom eyepiece
Construction Details
- 45° Angled viewing
- Built-in sunshade
- Knurled zoom wheel
- Twist-up rubber eyecup
- Built-in aiming tube on the side
- Built-in tripod socket
- Nitrogen-filled, fog and waterproof
Tripod -
- Portable tabletop configuration
- Three-way pan and locking tilt head
- Three-section telescoping legs
- Flip locks with levers
- Non-slip feet
In the Box Eschenbach Optik 15-45x60 Trophy S Spotting Scope Kit (Angled Viewing) Tabletop Tripod Carry Bag Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eschenbach Optik 15-45x60 Trophy S Spotting Scope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEschenbach Optik 46301 Specs | | | Viewing Angle | Angled | | Prism Type | BAK4 | | | | Magnification | 15 to 45x | | Objective Lens Diameter | 60 mm | | Field of View | 15x: 132.0' @ 1000 yd / 44.0 m @ 1000 m
45x: 66.0' @ 1000 yd / 22.0 m @ 1000 m | | Minimum Focus Distance | 16.5' / 5.0 m | | Exit Pupil Diameter | 15x: 4 mm
45x: 1.3 mm | | Eye Relief | 12.0 to 2.0 mm | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Dimensions | L: 16.5 x H: 4.3 x W: 2.9" / L: 42.0 x H: 11.0 x W: 7.5 cm | | Weight | 35.1 oz / 995.1 g |
