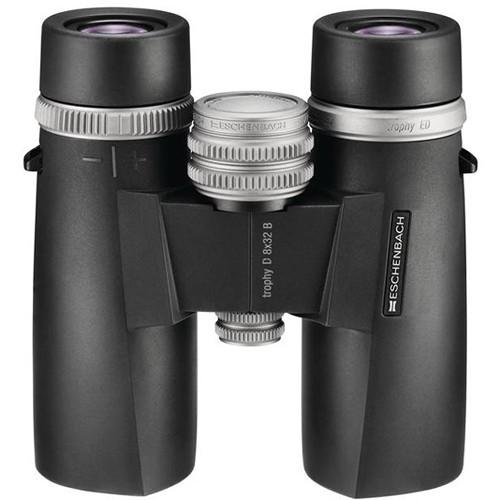

User Manual for Eschenbach Optik 8x32 Trophy D-Series ED Binocular Click to enlarge the picture
Contents of the user manual for the Eschenbach Optik 8x32 Trophy D-Series ED
- Product category: Binoculars Eschenbach Optik
- Brand: Eschenbach Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eschenbach Optik Binoculars
|
User manual for the Eschenbach Optik 8x32 Trophy D-Series ED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eschenbach Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eschenbach Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eschenbach Optik product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More With a bright, sharp image produced by the fully multi-coated, extra-low-dispersion 32mm objective lenses, the 8x32 Trophy D-Series ED Binocular by Eschenbach Optik is suited to birding, hunting, and general all-around use. Adding to the image quality are the Trophy D's phase-corrected BAK4 roof prisms with dielectric coatings. Focusing is easy thanks to the large metal center focus wheel, although if you seek a completely shake-free viewing experience, you can mount it on a tripod. Its field of view is a generous 400 feet at 1,000 yards. The binocular is watertight and nitrogen-filled to prevent fogging. It's equipped with twist-up eyecups to accommodate eyeglasses and an adjustable right-eye diopter to account for prescription eyewear. The Trophy D comes with a padded strap, carry bag, and lens caps. - Optical Performance
-
- 8x magnification
- 32mm objective lenses
- Phase-corrected BAK4 roof prisms with dielectric coating for a sharp image, even in low-light
- Anti-reflection, multi-coated optics improve light transmission, color rendition, and contrast
- 400' field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration
- Metal center focusing wheel
- Twist-up eyecups for use with or without eyewear
- Right-eye diopter adjustment to accommodate prescription eyewear
- 11mm eye relief
- 4.0mm exit pupil
- Construction Details
-
- Impact-resistant magnalium housing
- Watertight and nitrogen-filled to resist fogging
- Tripod mount
- Strap, carry case, and lens caps
In the Box Eschenbach Optik 8x32 Trophy D-Series ED Binocular 2 x Lens Caps Strap with Quick Release Fastener Carry Case Limited 10-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Eschenbach Optik 8x32 Trophy D-Series ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEschenbach Optik 4232832 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 8x: 7.6° (Actual) | | Field of View | 8x: 399.0' @ 1000 yd / 133.0 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 8x: 4 mm | | Eye Relief | 8x: 11 mm | | Interpupillary Adjustment | 54 to 74 mm / 2.1 to 2.9" | | Tripod Mount | Yes | | Dimensions | 4.9 x 4.7 x 2.0" / 125.0 x 118.0 x 50.0 mm | | Weight | 21.16 oz / 600 g | | | | Package Weight | 2.305 lb | | Box Dimensions (LxWxH) | 6.85 x 6.2 x 4.35" |
