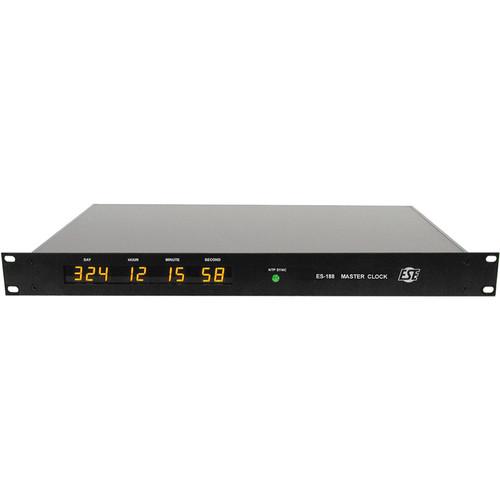

Product description The ES-188 NTP Referenced Master Clock/Time Code Generator by ESE is for generating several types of time code. It is used in various applications to extract time data from a NPR satellite receiver or to update a computer's Windows clock to the time available on the USB or serial port. The time code it generates include SMPTE LTC, ESE-TC89, ESE-TC90, ASCII (RS-232C & USB), EBU, IRIG-B, and a 1PPS signal. These outputs allow the ES-188 to easily interface with new or existing computers, automation and clock systems.The ES-188 is built with a front panel, nine-digit, .56", yellow LED display and a NTP Ethernet port (RJ-45). This unit features automatic, daylight savings time correction and has a time advance/delay feature for synchronization purposes. Configuration is through the RS-232 and USB port. In addition, PC software is included, and the unit has a built-in, 4-hour battery backup. The unit is rack-mountable. - Generates SMPTE LTC, ESE, EBU, IRIG-B, ASCII (RS-232 & USB) time code outputs
- Features a NTP Ethernet port (RJ-45) connection
- Has a front panel, nine-digit, .56", yellow LED display
- Accuracy is network dependent and is generally less than 1 ms
- Automatic, daylight savings time correction
- Can be configured via built-in RS-232 and USB ports
- This unit allows the user to select SMPTE mode (DF, NDF, EBU, Real Time), offset the time zone displayed, and output by the ES-188 and advance or delay the time output for various synchronizing purposes
In the Box ESE ES-188 NTP Referenced Master Clock/Time Code Generator AC Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ESE ES-188 NTP Referenced Master Clock Time Code Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESE ES-188 NTP Specs | Electrical | 117 VAC, 50/60 Hz | | Power | 15 W maximum | | Display | Nine digits, yellow LED, .56" High | | Accuracy | Network dependent, generally less than 1 ms | | Drift | 33 ms/day (if no NTP signal) | | Input | Ethernet: 10/100 Base-T | | Fuse | 1/2 amp | | Battery | 4-Hour back-up (displays are blank) | | Video Input | RS-170 A composite video/blackburst, 1 Vpp, 75 Ω | | Outputs | ESE Time Code: Drives 100 Slaves @ 4000'
USB: Universal serial bus, date & time output
RS-232C: Date & Time Output
SMPTE: 600 Ω balanced or unbalanced
IRIG-B: 3 Vpp (mark amplitude), 600 Ω, AM or TTL selectable
1 PPS: TTL, 50% duty cycle | | Clock | Set-Up: USB, RS-232C, network (Telnet or Windows®) | | Dimensions (H x W x D) | 1.75 x 19 x 10" (44 x 483 x 254 mm) | | Weight | Not listed by manufacturer | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 18.8 x 9.1 x 1.5" |
