User Manual for ESE ES-263 Portable SMPTE Time Code Generator Click to enlarge the picture
Contents of the user manual for the ESE ES-263 Portable SMPTE Time Code
- Product category: Time Code Generators & Readers ESE
- Brand: ESE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESE Time Code Generators & Readers
|
User manual for the ESE ES-263 Portable SMPTE Time Code contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESE product will considerably shorten its lifespan!
|

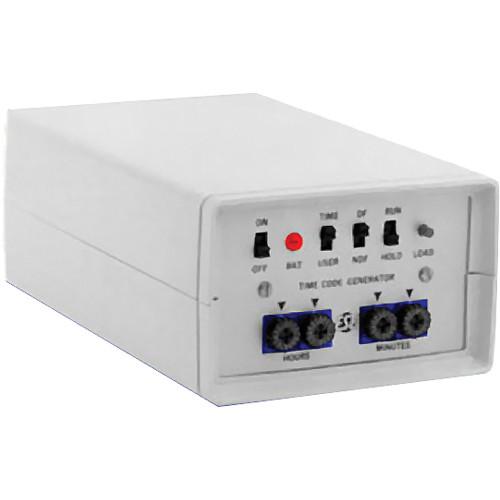

Product description The ES-263 Portable SMPTE Time Code Generator from ESE is a microprocessor-based unit that can be preset using the front panel mounted controls (only hours and minutes are presettable as seconds and frames are automatically set to 00:00). The ES-263 can generate Time Data or User Bits (User Bits are presettable with hexadecimal values "0 - F"). The SMPTE Time Code (unbalanced) is output via a rear mounted RCA and the Video Sync Input (composite video or sync) is via a rear mounted BNC connector. The unit is housed in a small, portable enclosure that includes a convenient belt clip. The internal battery provides up to 10 hours of operation per charge. An AC/wall adapter/charger is also included. PAL and/or EBU operation can be optionally specified. - 2 Vp-p SMPTE time code output (RCA)
- Video input for synchronization (BNC)
- Presettable hours & minutes
- Settable hour and minute user bit groups
- 10-hour rechargeable battery
- AC adapter/charger included
- Drop-Frame/Non-Drop Frame modes
- EBU time code (sold separately)
- Enclosure includes belt clip
In the Box ESE ES-263 Portable SMPTE Time Code Generator AC Charger & Adapter Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ESE ES-263 Portable SMPTE Time Code Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESE ES-263 Specs | Output | Time Code: 2 Vpp, unbalanced | | Video In/Out | 1 to 2 Vpp, unterminated | | Drift | 2 sec/day | | Options | EBU, PAL | | Battery | 1.2 A Gel Cell @ 12 VDC, 120 mA | | Electrical | Internal Battery: 117 VAC adapter/charger | | Dimensions (W x H x D) | 3.6 x 2.3 x 6.0" (9.1 x 5.8 x 15.2 cm) | | Weight | 1.0 lb (0.4 kg) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 6.4 x 6.3 x 2.7" |
