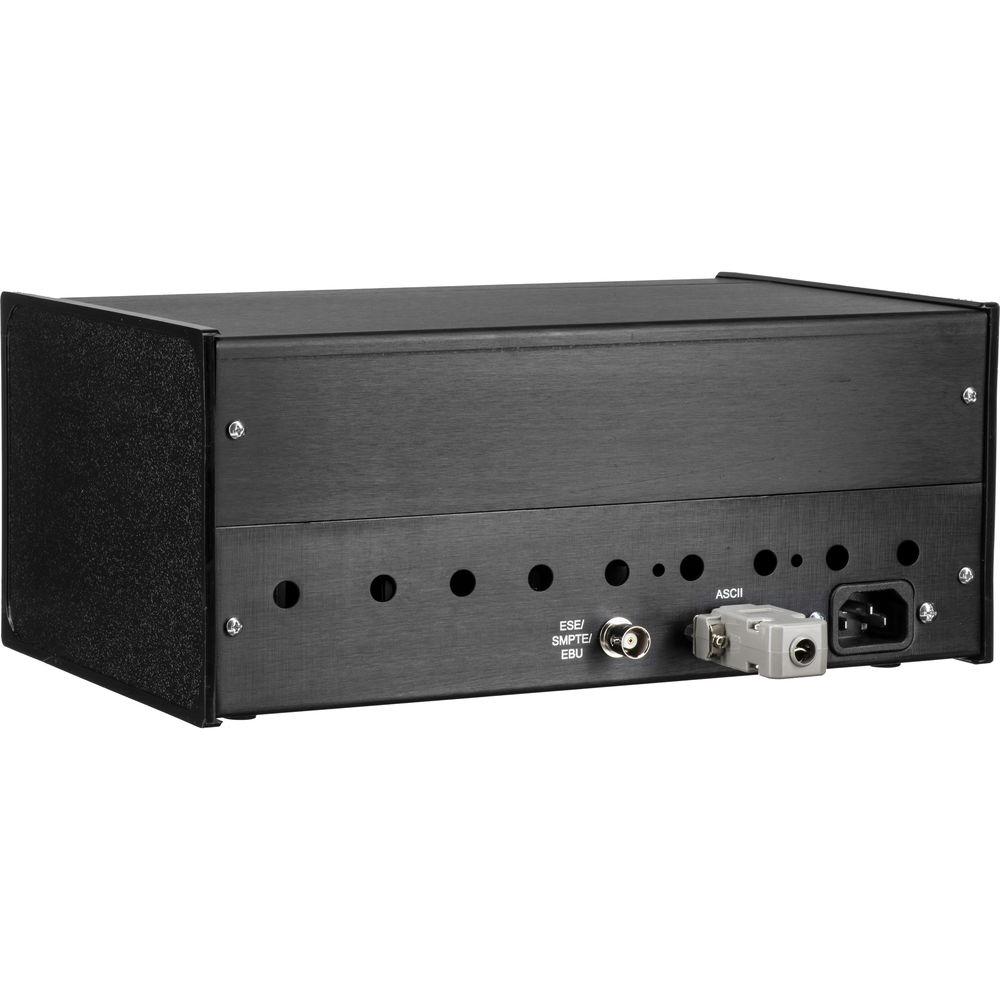

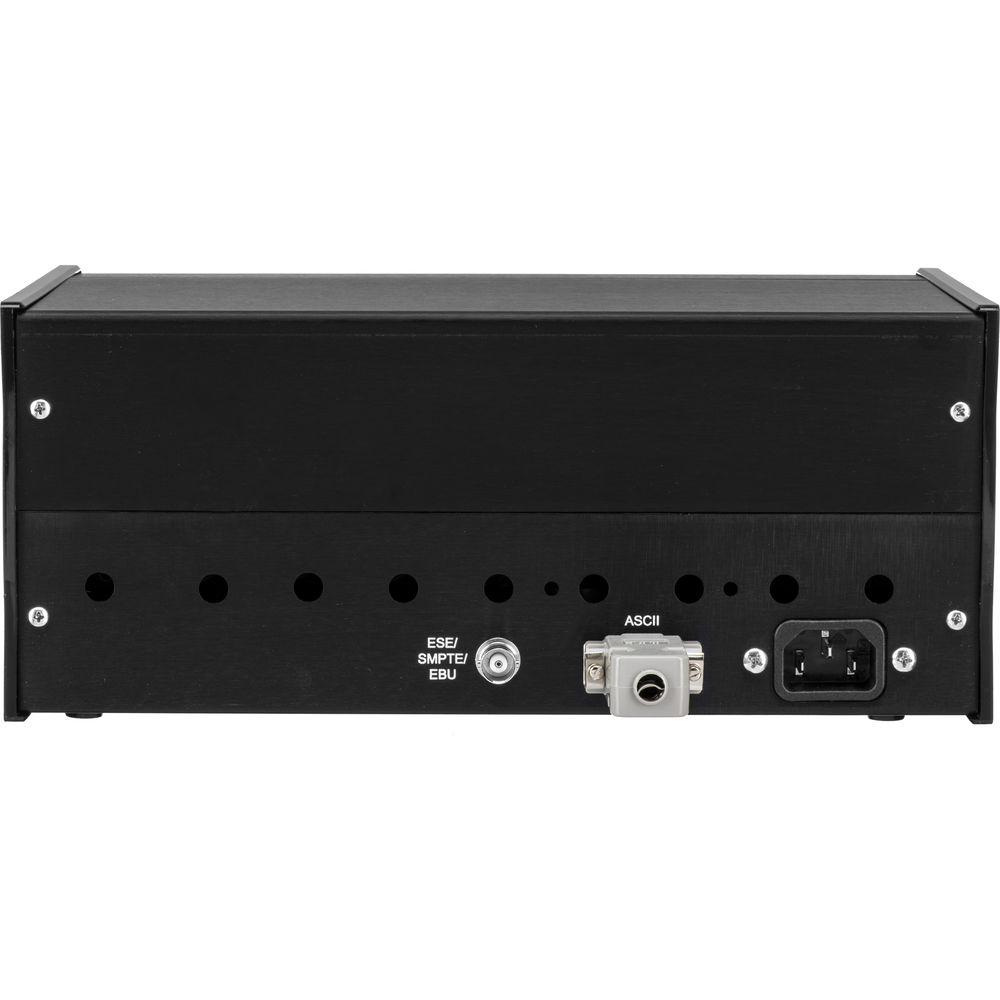

Product description The ES-991U Time Code Remote Display from ESE features four 2.3" amber LED digit displays housed in a desk mount enclosure. It has rear-mounted BNC connector that accepts either ESE timecode (TV76, TC89, or TC90) or SMPTE/EBU timecode. An RS-232C ASCII timecode (format "0", "1", or "A" at 9600 baud) can be input via a rear-mounted 9-pin connector. The ES-991U will automatically determine which code is being received. An internal DIP switch is used to configure the display for 12 or 24-hour format, or to display the date instead of time-of-day if the incoming signal contains date information. If receiving ESE timecode from a timer, the unit will display minutes and seconds. - Reads SMPTE/EBU, ASCII, and ESE timecode
- Four 2.3" amber LED displays
- Switchable between 12 and 24-hour format display
- Switchable to date display (Month-Day)
- Black plastic/aluminum case
In the Box ESE ES-991U Timecode Remote Display (Desk Mount Enclosure) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ESE ES-991U Timecode Remote Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESE ES-991U Specs | Input | 1 x BNC
1 x 9-pin connector | | Time Code Format | SMPTE/EBU
ASCII
ESE timecode | | Display | Four 2.3" (5.8 cm) digit LEDs | | Maximum Viewing Distance | 70' (21.3 m) | | Power | 8 - 10 W, 117 VAC, 50/60 Hz | | Finish | Black plastic/aluminum | | Dimensions | 5.5 x 10.4 x 6.6" (14.0 x 26.4 x 16.8 cm) | | | | Package Weight | 3.91 lb | | Box Dimensions (LxWxH) | 12.2 x 10.4 x 6.8" |
