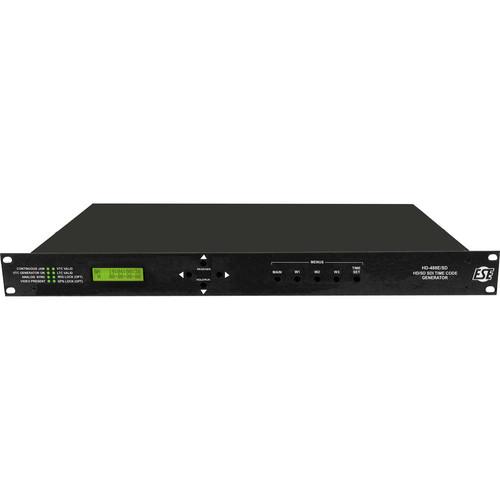

Product description The HD-488 HD-SDI Timecode Reader/Generator/Inserter from ESE is configured for HD-SDI (High Definition Serial Digital Interface) video. Linear Timecode (LTC) and RP-188 Timecode are both read and generated by the HD-488. The unit also accepts a multitude of HD formats. The Inserter mode provides the ability to superimpose time and/or user bits onto video with alphanumeric characters. As many as thirty characters of text can be superimposed onto the video. Flexibility is also provided to the user, allowing for selection of the information to be displayed (time, time, and user bits or text) on up to three different windows which are independent of each other and can be blanked. - Accepts multiple HD formats
- Generates, reads, and inserts LTC/RP188 timecodes
- Universal power supply (90 to 264 VAC)
- Timecode/time of day/user text window burn
- Master timecode generator
- GPS master clock (with GPS option)
- NTP sourced master clock (with NTP-C option)
- GPS sourced NTP server (with NTP & GPS options)
- IRIG-sourced NTP server (with NTP & IRIG options)
- IRIG-B generator (with IRIG option)
- Transcode IRIG A/B/G to IRIG-B or SMPTE codes (with IRIG option)
- Transcode SMPTE codes to IRIG-B (with IRIG option)
- Drive standard ESE remote displays with time of day
In the Box ESE HD-488 HD-SDI Timecode Reader/Generator/Inserter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ESE HD-488 HD-SDI Timecode Reader Generator Inserter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESE HD-488 Specs | HD SDI Capture/Output | 1080i60, 1080i59.94, 1080i/50, 1080p30sF, 1080p29.97sF, 1080p25sF, 1080p24sF, 1080p23.98sF, 720p59.94 | | SD SDI Video Inputs | SMPTE 259M (270 Mb/s) | | Analog Input | 1 Vpp, terminated | | Color | Input: Vertical interval negative TTL/CMOS pulse | | Time | Input: SMPTE (100 mVpp to 10 Vpp; 10 kOhms input impedance) | | Options | ESE, GPS, IRIG, NTP, NTP-C, OCXO, RS, UL | | Status Display | 16 x 2 Character LCD | | Power | 90 to 264 VAC, 47 to 63 Hz, 15 W (maximum) | | Dimensions (H x W x D) | Rackmount Enclosure: 1.8 x 19.0 x 10.0" (4.4 x 48.3 x 25.4 cm) | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 19.0 x 9.0 x 1.7" |
