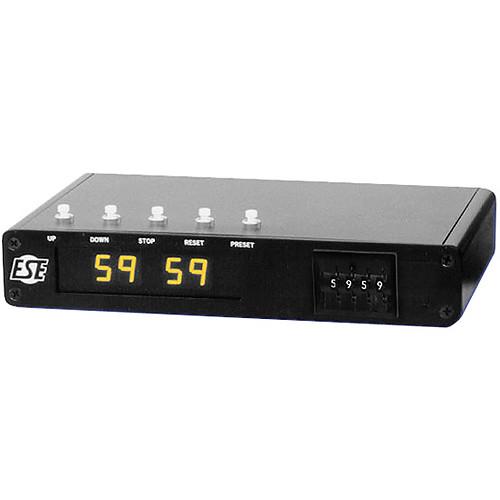

User Manual for ESE LX-362U 100-Minute Up Down Timer Click to enlarge the picture
Contents of the user manual for the ESE LX-362U 100-Minute Up Down Timer
- Product category: Time Code Generators & Readers ESE
- Brand: ESE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESE Time Code Generators & Readers
|
User manual for the ESE LX-362U 100-Minute Up Down Timer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESE product will considerably shorten its lifespan!
|
Product description The black LX-362U 100 Minute Up/Down Timer from ESE is a one-hundred-minute (00:00 - 99:59) timer with an ESE Serial Timer Code output. It is housed in a ruggedized baked powder coat aluminum case, and the timer information is displayed on 0.56” yellow LED displays. It features a four-digit thumbwheel switch that allows the time to be easily preset onto the display. Five front-mounted pushbutton switches allow for simple operation of the Up, Down, Stop, Reset (to 00:00) and Preset (to thumbwheel setting) functions. A rear-mounted BNC connector provides the ESE Timer Code for driving remote slave displays and provides access to these same five functions (via a momentary closure to ground or a logic “0”). Up to 100 slave displays may be driven, using up to 4,000 feet of coaxial cable or twisted pair. If the relay contact closure option is ordered, the contacts are also accessible on this connector. - 100-Minute up/down count range (00:00 to 99:59)
- Thumbwheel preset controls
- Four digits (minutes & seconds)
In the Box ESE LX-362U 100-Minute Up/Down Timer (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ESE LX-362U 100-Minute Up Down Timer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESE LX-362U Specs | Enclosure | Black texture-painted "LX" enclosure | | Connections | 9-pin D-sub
Output: rear-mounted BNC, ESE TC-89 | | Controls | Up, Down, Stop, Reset, Preset | | Display | Height: 0.56" (14.22 mm) Yellow LED | | Maximum Viewing Distance | 20' (6 m) | | Dimensions | 9.5 x 1.7 x 6.0" (24.1 x 4.3 x 15.2 cm) | | Power | 5 W | | Electrical | 117 VAC, 50/60 Hz | | Cord | 3-wire, 6.0' (1.8 m) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
