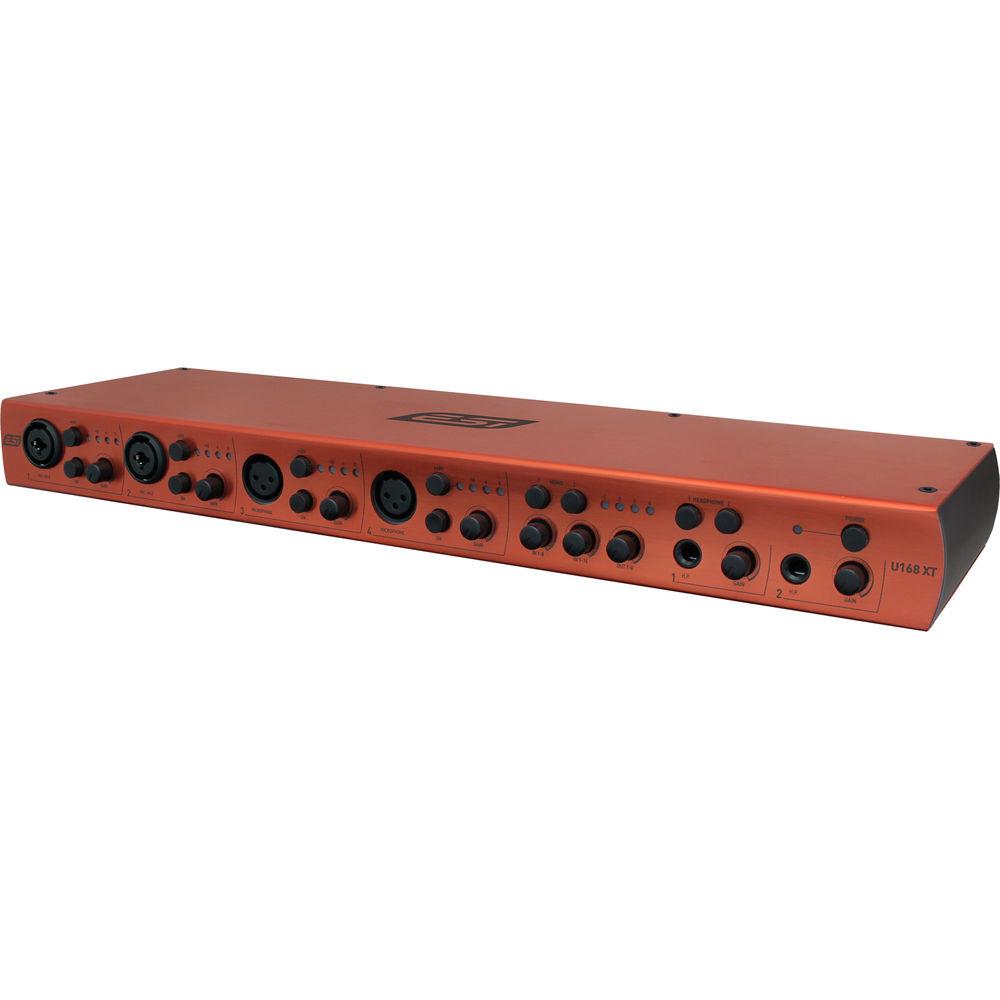

User Manual for ESI 16x8 24-Bit USB Audio Interface Click to enlarge the picture
Contents of the user manual for the ESI 16x8 24-Bit USB Audio Interface
- Product category: Audio Interfaces & Systems ESI
- Brand: ESI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESI Audio Interfaces & Systems
 |
User manual for the ESI 16x8 24-Bit USB Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESI product will considerably shorten its lifespan!
|
Product description The 16x8 24-Bit USB Audio Interface from ESI is a USB 2.0 Hi-Speed audio interface that features 16 input channels and 8 output channels. It is equipped with four integrated microphone-preamp/XLR inputs on the front with switchable 48V phantom power, two Hi-Z instrument inputs for electric guitars, as well as coaxial digital S/PDIF input and output. It is also equipped with two independent headphone outputs on the front, next to an integrated monitoring mixer. You can connect external keyboards, synthesizers, and sound modules via the MIDI input and output on the backside of the unit. Based on EWDM and DirectWIRE technology, low latency drivers support WDM, ASIO 2.0, and CoreAudio technology for both Mac and Windows. - USB 2.0 Hi-Speed audio interface fro Mac and Windows
- 24-bit / 96 kHz solution not only provides balanced 1/4" TRS line connectors
- Four professional microphone preamps with 48V phantom power support
- Two Hi-Z instrument inputs with 1/4" connector
- Digital S/PDIF input and output with RCA connectors
- Separate stereo mix output with integrated monitoring mixer controlled on front panel
- Powered by the included DC power supply
In the Box ESI 16x8 24-Bit USB Audio Interface DC Power Supply License of Deckadance LE from Stanton Bitwig 8-Track Digital Audio Workstation Software License of inTone 2 ESI Edition from Audified User Manual PDF 399.1kbcffwrbxvfcdacfyfdffeduzffu Table of Contents
|
Upload User Manual
Have you got an user manual for the ESI 16x8 24-Bit USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESI ESI-U168XT Specs | Input | 4 x professional microphone preamps with +48V phantom power support
16 x line inputs with balanced 1/4" TRS connectors
2 x Hi-Z instrument inputs with 1/4" connector
1 x digital S/PDIF input with RCA connector | | Output | 8 x line outputs with balanced 1/4" TRS connectors
2 x independent headphone outputs with 1/4" stereo phone connector | | Dynamic Range | ADC with 107 dBA
DAC with 112 dBA | | OS Supported | Windows Vista, 7, 8.1, and 10 with ASIO 2.0, MME, WDM, and DirectSound including DirectWIRE support
Mac OS X (10.7 and later) via CoreAudio USB audio driver | | Dimensions | 17.7 x 5.7 x 1.8" (45 x 14.5 x 4.5 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 22.7 x 6.8 x 3.4" |
