User Manual for ESI Dr. DAC nano - USB Digital to Analog Converter Click to enlarge the picture
Contents of the user manual for the ESI Dr. DAC nano - USB
- Product category: AD/DA Converters ESI
- Brand: ESI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESI AD/DA Converters
 |
User manual for the ESI Dr. DAC nano - USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESI product will considerably shorten its lifespan!
|

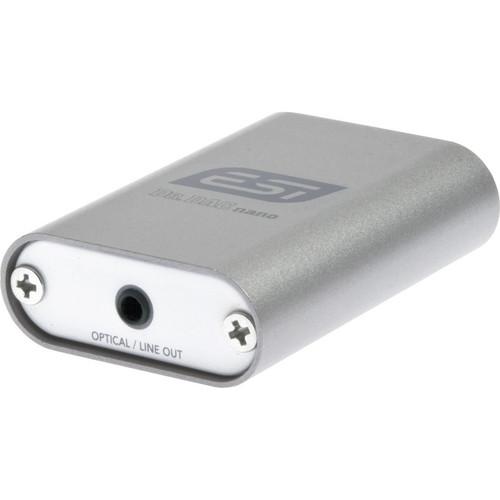

Product description The Dr. DAC nano from ESI is a 2 channel digital to analog (DAC) converter that connects to the USB port of a computer. The DAC is perfect for Windows and Mac OS X users who want better sound output over what their computer's internal converter offers. The digital source can have up to 24-bit/96kHz resolution, while the output of the unit can be either analog line level, or optical S/PDIF via a mini plug optical transmitter. The analog output can also power most consumer headphones. - Digital to analog converter

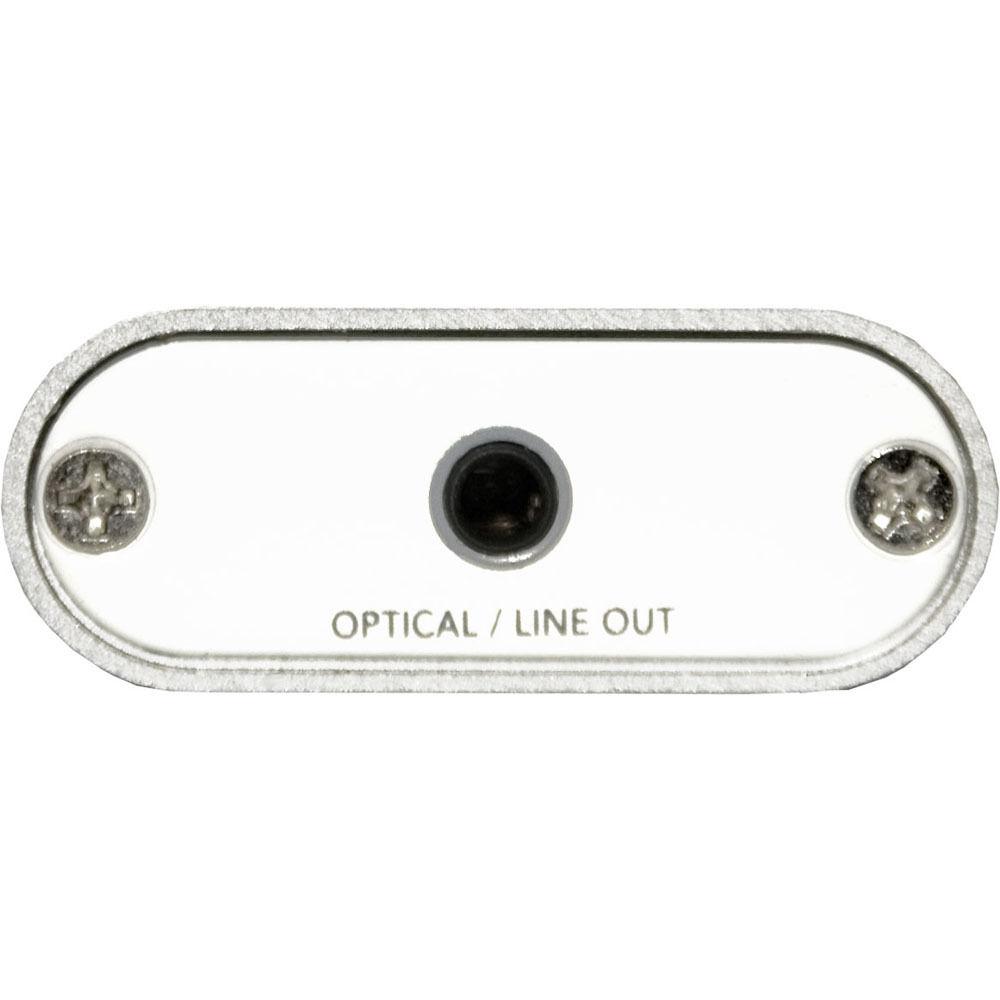

- Optical S/PDIF output via 3.5mm mini plug optical transmitter (up to 24bit/96kHz)
- Headphone amplifier that can power 16 to 300Ω headphones
- Non PCM (Dolby Digital, dts) pass through support
- Analog Devices AD8397 high output current amplifier
- Plug and play under Windows XP, Vista, Windows 7, or Mac OS X
In the Box ESI Dr. DAC nano - USB Digital to Analog Converter USB Cable 3.5mm Mini Plug to TOSLink Optical Converter One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ESI Dr. DAC nano - USB Digital to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

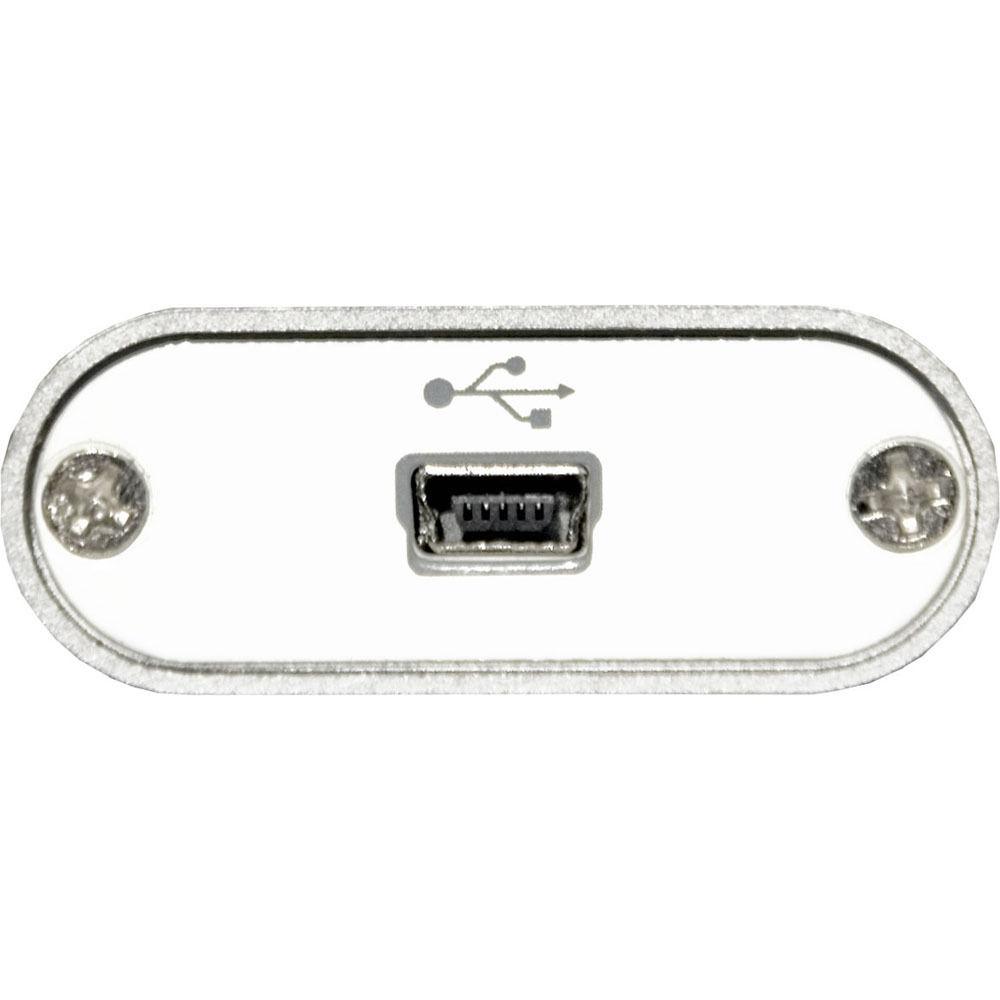

Technical parametersESI DR.DAC NANO Specs | ADC | Not applicable | | DAC | 16-/24-bit | | Sample Rates | 44.1, 48 and 96kHz | | Analog In | Not applicable | | Analog Outputs | 1 x 1/8" TRS mini | | Digital Input Connectors | USB | | Digital Output Connectors | 1 x 1/8" TRS mini shared with analog output 3.5mm mini plug to TOSLink optical converter included | | Word Clock | Not applicable | | Maximum Output Level | 3VRMS | | Dynamic Range | 103dB | | Frequency Response | Not specified by manufacturer | | THD + N | Not specified by manufacturer | | Power Requirements | USB bus | | Dimensions (WxDxH) | 1.8 x 2.4 x 0.7" (45 x 60 x 17mm) | | Specialties | Tenor TE7022L USB streaming audio controller with 12MHz USB full speed operation
National Semiconductor LM2663M switched Ccpacitor voltage converter
Precision +/-5ppm 12.000MHz TCXO for lowest clock jitter
Low ESR Tantal capacitor
High quality 4 layer PCB board | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.5 x 5.6 x 1.3" |
