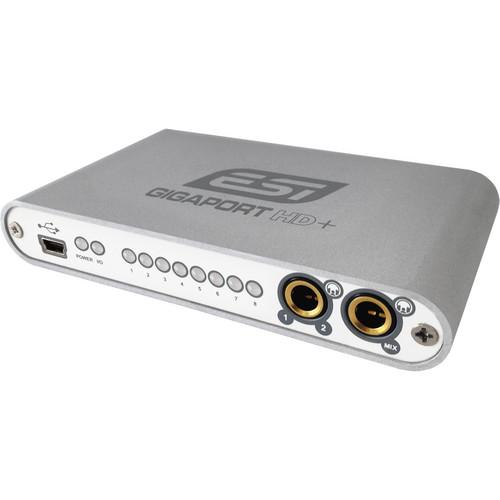

Product description The Gigaport HD+ 8-Output USB Audio Interface from ESI/Ego Sys is a multichannel playback solution, offering full 7.1 surround sound support as well as 2 independent stereo headphone outputs and resolutions up to 24-bit/96 kHz.
The Gigaport HD+ is especially useful for digital DJs using notebook computers; the eight outputs can be configured as 4 stereo channels, enabling you to mix, cue and add effects. It is also suited for use with desktop computers and offers compatibility with professional audio software applications. Gigaport HD+ also works with consumer programs such as DVD playback software.
The Gigaport HD+ is a USB bus-powered interface, housed within a hearty aluminum case. It is compatible with both Mac and Windows computers and comes bundled with a license of Deckadance LE DJ software. - Playback Modes
- Up to 8 channels of playback @ 16-bit/44.1kHz
Up to 6 channels of playback @ 24-bit/44.1kHz
Up to 6 channels of playback @ 24-bit/48kHz
Up to 2 channels of playback @ 24-bit/96kHz - Two Independent Headphone Outputs

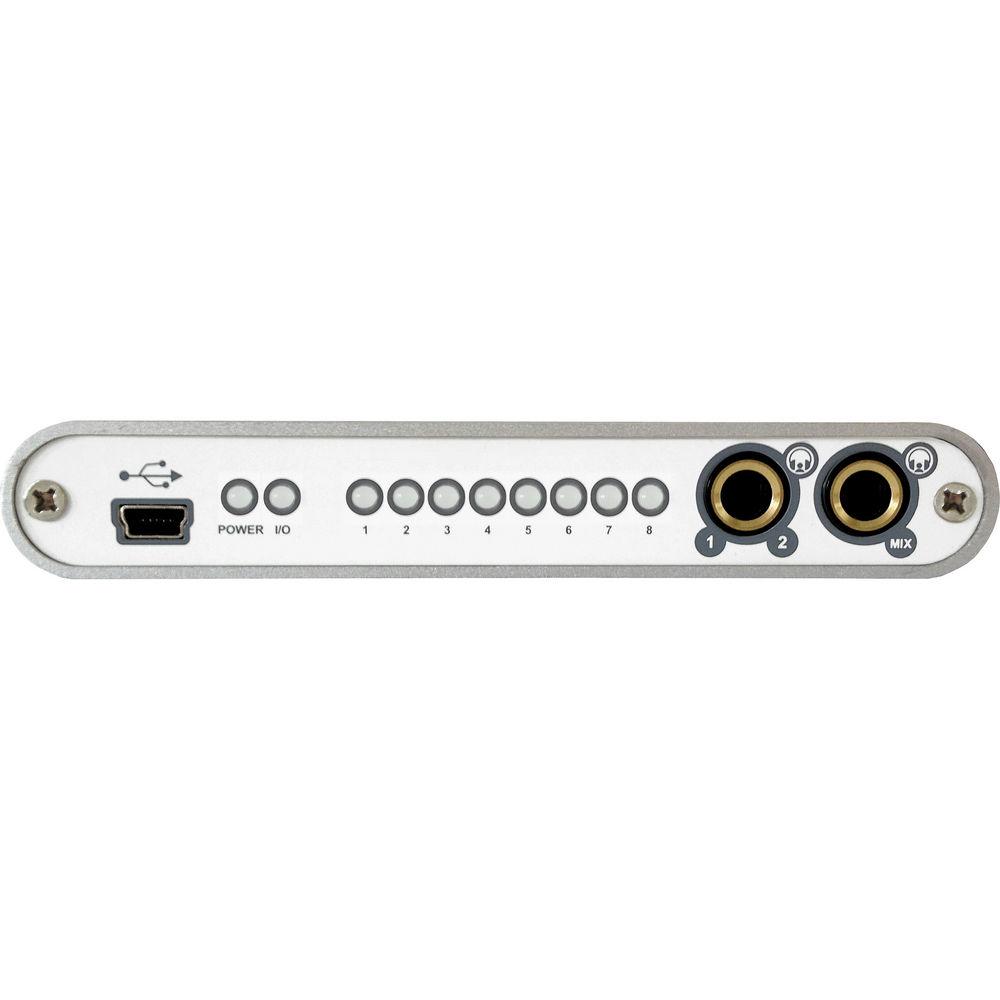

- Headphone Output 1 sends out mixed signal of all playback channels
Headphone Output 2 mirrors playback from RCA output channels 1 and 2 In the Box ESI Gigaport HD+ 8-Output USB Audio Interface USB Cable Deckadance LE License Limited 1-Year Warranty User Manual PDF 886.5kbrvbeuyvcdqefeywxbvtbyqetefvysy Table of Contents
|
Upload User Manual
Have you got an user manual for the ESI Gigaport HD 8-Output USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

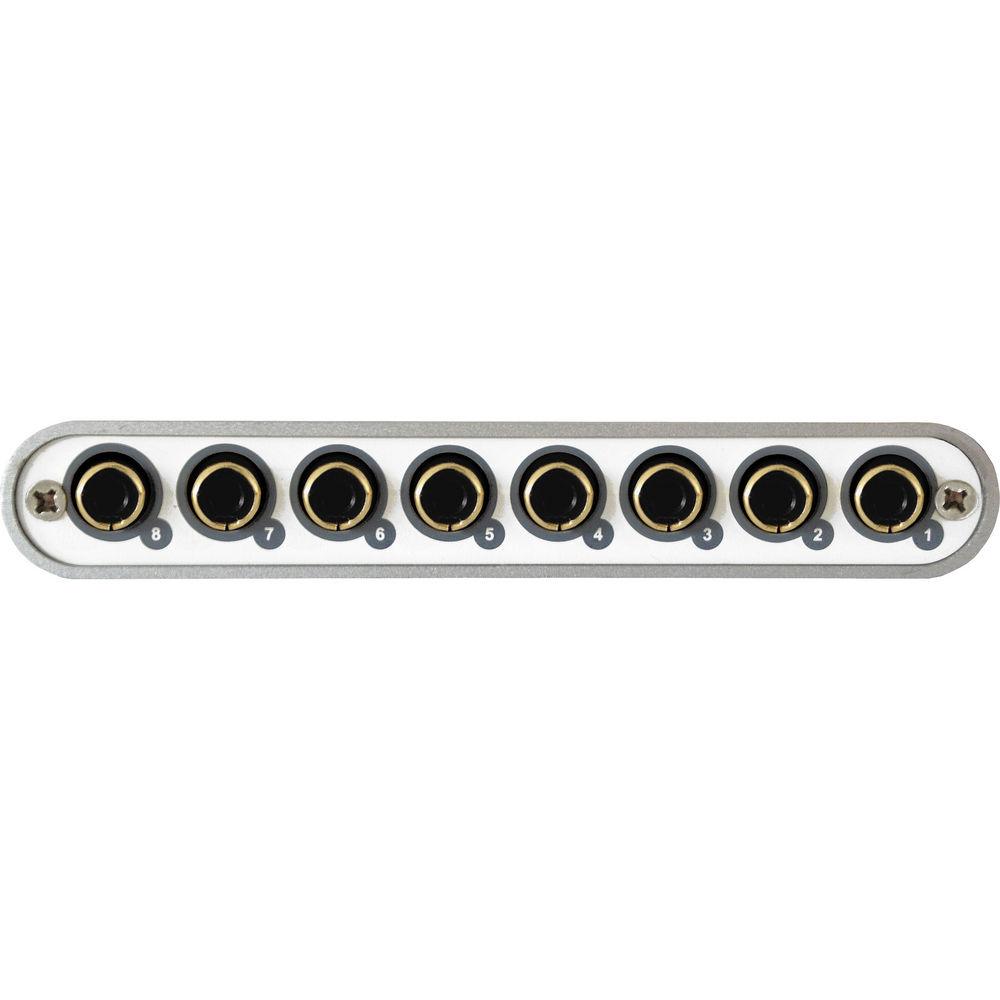

Technical parametersESI Gigaport HD+ Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | 1 x Mini-USB (USB 1.1) Fully compatible with USB 2.0 host controllers. | | Analog I/O | 8 x RCA Line Output
1 x 1/4" (6.3 mm) TRS Output
1 x 1/4" (6.3 mm) TRS Output | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | D/A Converters:
20 Hz to 22 kHz (at 48 kHz) | | Max Output Level | Outputs:
+0.5 dBV | | Headphone Output Power | 60 mW (Max) | | Dynamic Range | D/A Converters:
112 dBA | | Impedance | Outputs:
100 Ohms | | THD+N | D/A Converters:
-94 dB
Headphone Outputs:
-70 dB (0.03%) | | SNR | Headphone Outputs:
110 dB | | | | Sample Rates | 44.1 and 48 kHz (8-Channel Playback)
Up to 96 kHz (2-Channel Playback) | | Bit Depth | 24-Bit | | | | OS Compatibility | macOS 10.4 or Later
Windows XP
Windows Vista
Windows 7 | | Processor Requirement | Mac:
PowerPC G3
PC:
300 MHz Intel Pentium II
AMD | | RAM Requirements | 64 MB | | Required Hardware | Available USB Port
Available USB Port | | | | Power Requirements | USB Bus-Power | | | | Dimensions | 4.72 x 2.76 x 0.79" / 12 x 7 x 2 cm | | | | Package Weight | 0.73 lb | | Box Dimensions (LxWxH) | 7.65 x 5.65 x 1.4" |
