User Manual for ESI M4U eX 8-Port USB 3.1 Gen 1 MIDI Interface with USB Hub Click to enlarge the picture
Contents of the user manual for the ESI M4U eX 8-Port USB 3.1
- Product category: MIDI Interfaces ESI
- Brand: ESI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESI MIDI Interfaces
|
User manual for the ESI M4U eX 8-Port USB 3.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESI product will considerably shorten its lifespan!
|
Product description The ESI M4U eX is an 8-port USB 3.1 Gen 1 MIDI interface with a USB hub offering automatic port configuration and flexible routing for composers, producers, beatmakers, and synth aficionados. Ideal for connecting a variety of keyboards, drum machines, and synth modules with or without a computer, it supports standalone and USB-to-host operation. It features eight MIDI 5-pin ports—each automatically assigned as an input or output according to the signal detected—and per-port red/green LEDs for easy I/O status indication. An integrated 3-port USB hub on the rear panel allows convenient hookup of USB devices such as a keyboard, mouse, and authorization dongle. The M4U eX is class compliant with macOS and Windows computers, and connects to your host via USB 3.1 Gen 1. It can be powered via USB (excluding the USB hub) or a 5 VDC power supply (including the USB hub). The M4U eX is supplied with a USB cable and power supply. - 100% class compliant, works without driver installation

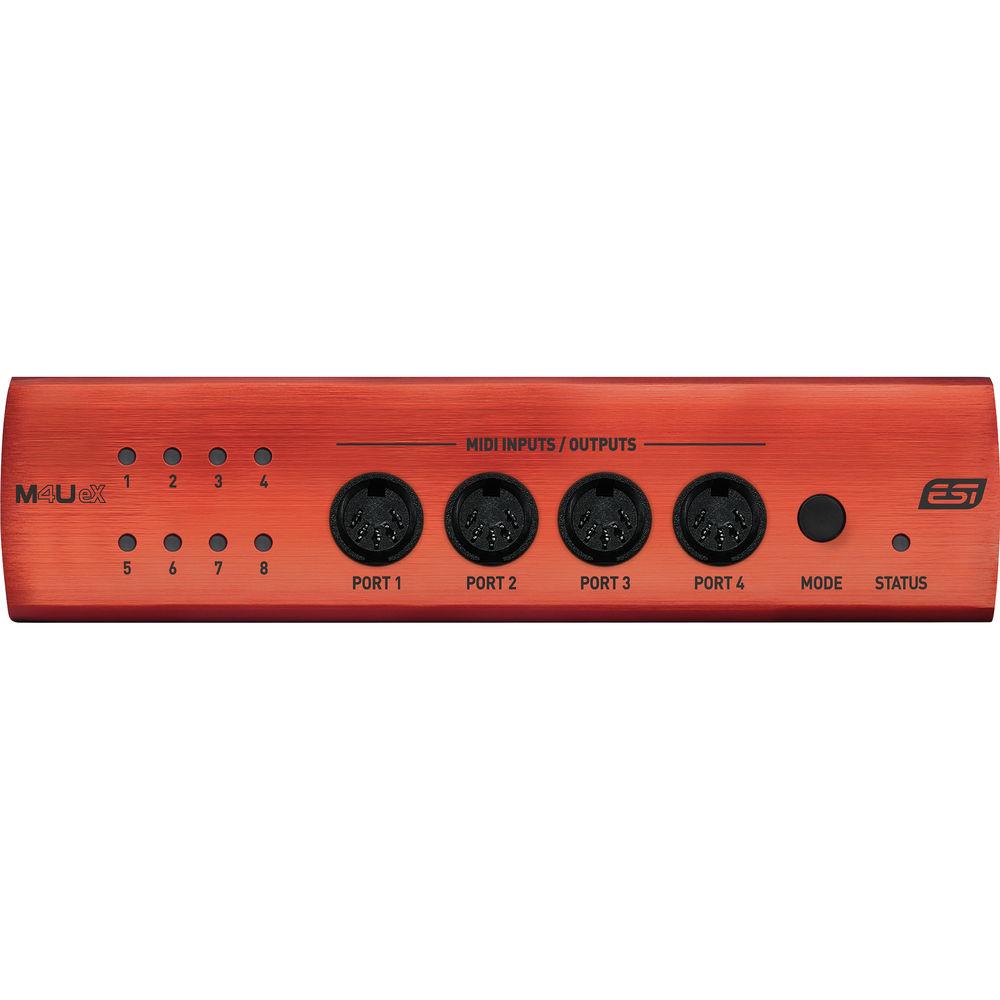

- Compact MIDI interface with eight MIDI ports; four on the front and four on the rear
- Automatic signal detection allows each MIDI port to work as an input or output
- Front-panel LEDs indicate each port's status as input (green LED) or output (red LED)
- Operates in standalone or USB-to-host mode
- Dedicated mode selector and status LED

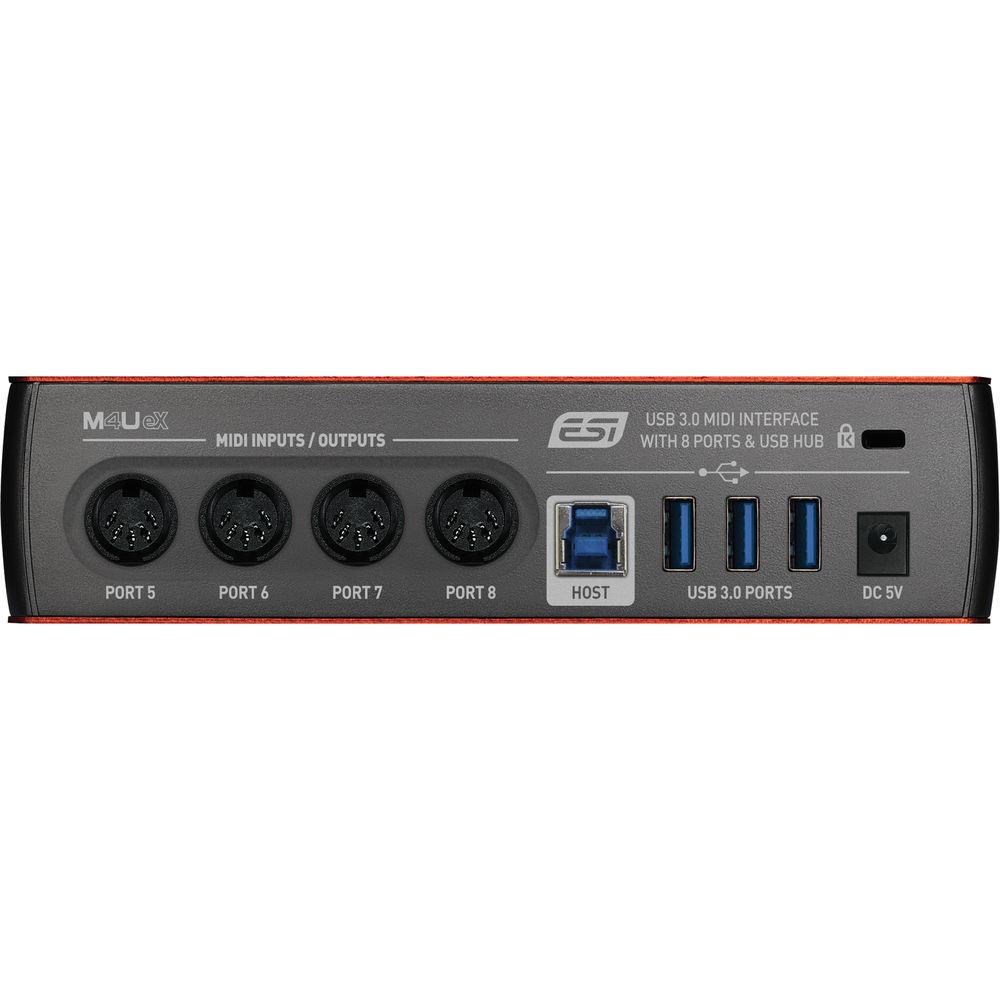

- Integrated 3-port USB hub allows connection of USB devices such as a keyboard, mouse, and dongle
- Standalone mode enables MIDI thru and MIDI merge configurations without a computer
- Backward compatible to USB 2.0
- Rear-panel laptop lock connector
- Supports simultaneous use with multiple units (available separately)
In the Box ESI M4U eX 8-Port USB 3.1 Gen 1 MIDI Interface with USB Hub USB Cable 5 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ESI M4U eX 8-Port USB 3.1 Gen 1 MIDI Interface with USB Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESI ESIM4UEX Specs System Requirements | Class Compliant with macOS (32-/64-Bit) Available USB 3.1 Gen 1 Port or USB 2.0 Port
Class Compliant with Windows 7, 8.1, and 10 (32-/64-Bit) Available USB 3.1 Gen 1 Port or USB 2.0 Port | MIDI Connectors | 8 x MIDI 5-Pin DIN Ports (Input or Output per Port) | USB Connectors | 1 x USB 3.1 Gen 1 Type-B Port 3 x USB 3.1 Gen 1 Type-A Ports | Power Requirement | Bus Power (Excludes USB Hub) 5 VDC Power Supply (Includes USB Hub) | Dimensions (W x H x D) | Approximately 6.9 x 1.8 x 4.7" / 17.5 x 4.5 x 12.0 cm | Weight | 1 lb / 0.5 kg | | Package Weight | 1.995 lb | Box Dimensions (LxWxH) | 11.3 x 5.7 x 3.2" |
