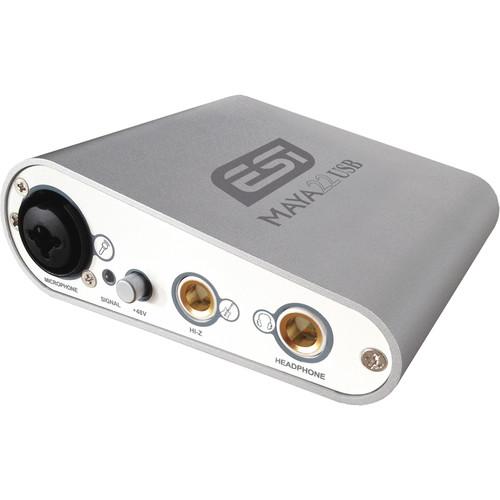

User Manual for ESI MAYA22 USB Flexible High-Performance, 24-Bit USB Audio Interface Click to enlarge the picture
Contents of the user manual for the ESI MAYA22 USB Flexible High-Performance, 24-Bit
- Product category: Audio Interfaces & Systems ESI
- Brand: ESI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESI Audio Interfaces & Systems
 |
User manual for the ESI MAYA22 USB Flexible High-Performance, 24-Bit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESI product will considerably shorten its lifespan!
|

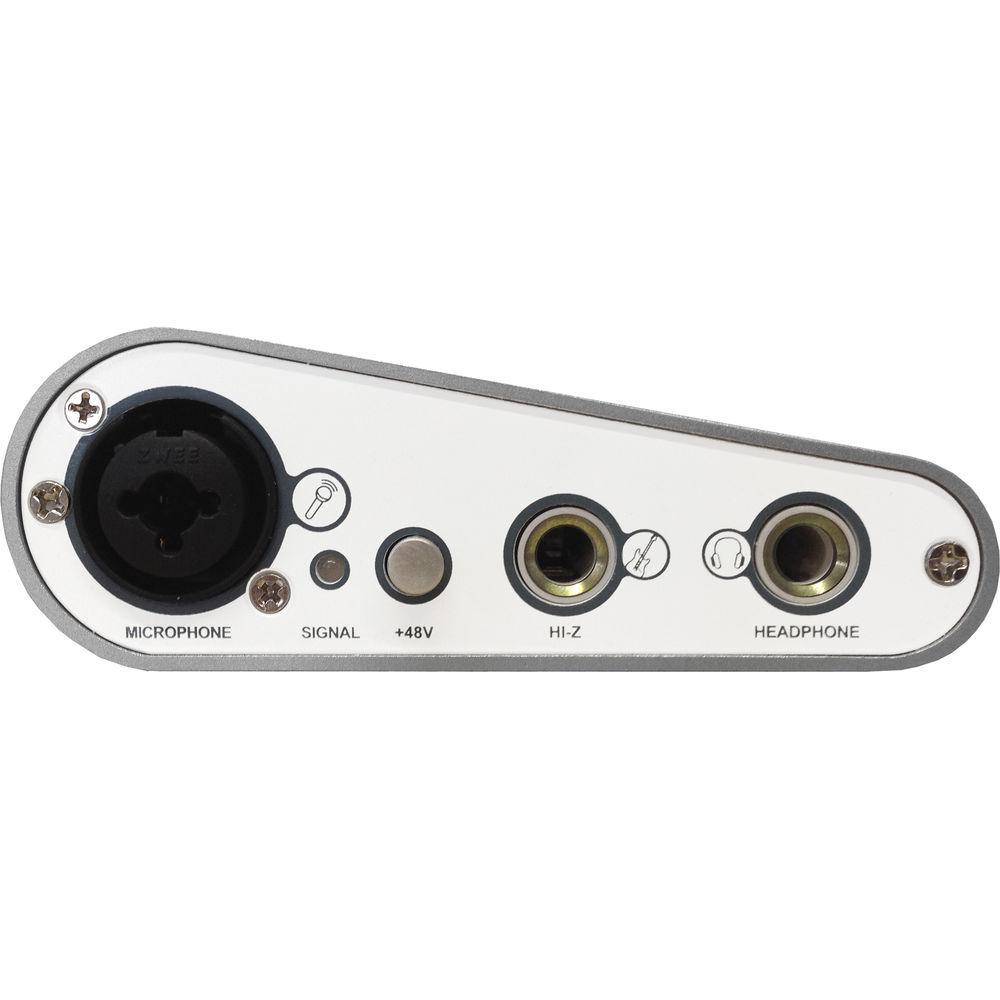

Product description The MAYA22 USB Flexible High-Performance, 24-Bit USB Audio Interface from ESI features 2 analog-input and 2 analog-output channels with RCA connectors, a mic preamplifier with XLR input and support for +48V phantom power, a Hi-Z input for guitars, a headphone output, and TRS line outputs. The interface can be used to record microphone and guitar signals simultaneously, process the incoming signals with a Windows or Mac notebook or desktop in real time, and then listen to the mix directly via headphones or studio monitor speakers. This portable MAYA22 USB device offers total flexibility as an external and fully bus-powered device with professional 24-bit audio quality. All these features are provided with a professional low-latency driver and support for WDM, ASIO 2.0, and CoreAudio. The MAYA22 USB portable device is an important and useful addition to any studio, wherever that may be. - 2-input / 2-output, 24-bit / 96 kHz, USB 2.0 full-speed, 24-bit audio interface
- Line, guitar, and microphone inputs
- Microphone preamp with XLR input and 48V phantom power support
- Hi-Z instrument input with 1/4" connector
- Line inputs with RCA connectors
- Line output with balanced 1/4" TRS connectors
- Headphone output with 1/4" connector
- Supports Windows XP, Vista, 7, and 8.1 with ASIO 2.0, MME, WDM, and DirectSound including DirectWIRE support
- Real-time level meters in MAYA22 USB for Windows control panel software
- Supports macOS (10.4 and above) via the native CoreAudio USB audio driver from Apple (no driver install required)
In the Box ESI MAYA22 USB Flexible High-Performance, 24-Bit USB Audio Interface Limited 1-Year Warranty User Manual PDF 831.6kbxxrebvycczvcsvyaevxxbtwbvfswdy Table of Contents
|
Upload User Manual
Have you got an user manual for the ESI MAYA22 USB Flexible High-Performance, 24-Bit USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

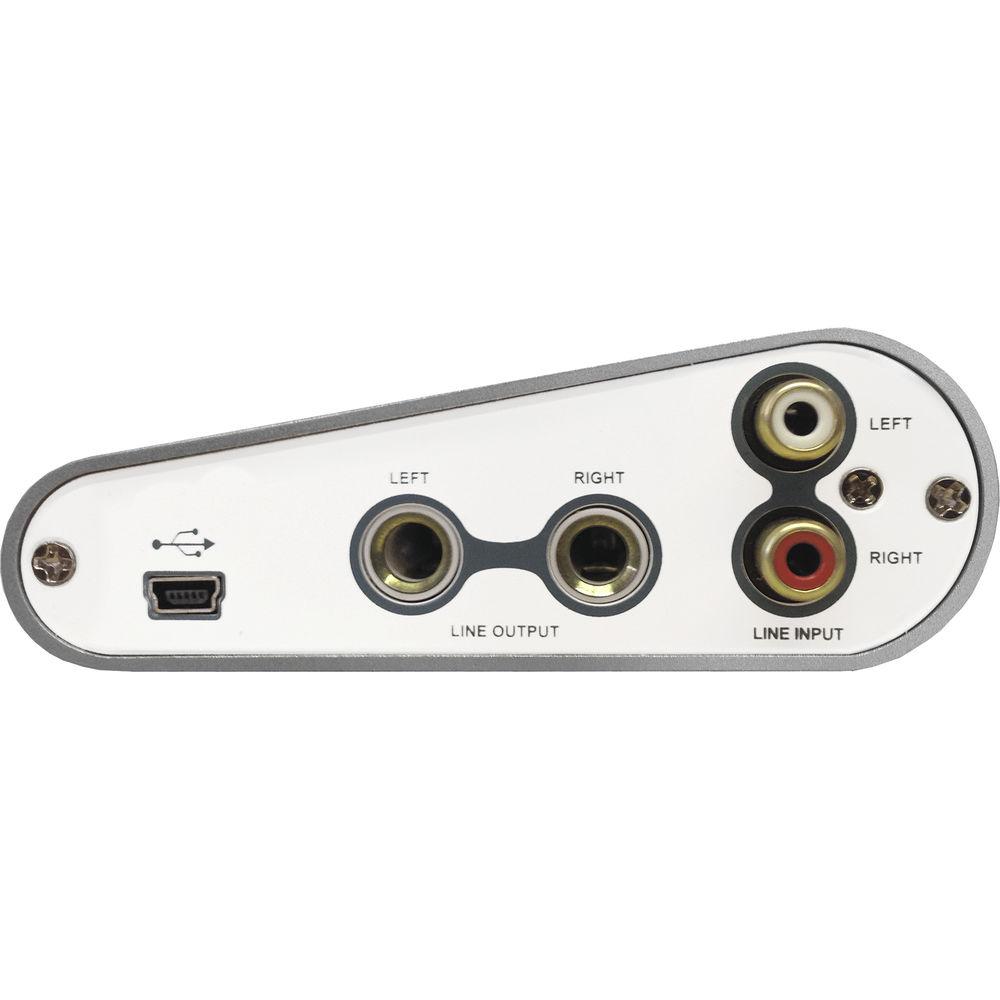

Technical parametersESI MAYA22 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | Mini-USB (USB 2.0) | | Analog I/O | 2 x RCA Line Input
2 x 1/4" (6.3 mm) TRS Balanced Line Output | | Digital I/O | None | | MIDI I/O | None | | | | Dynamic Range | A/D Converters:
102 dBA
D/A Converters:
108 dBA | | | | OS Compatibility | Windows XP
Windows Vista
Windows 7
Windows 8.1
macOS 10.4 or Later | | | | Power Requirements | USB Bus-Power | | | | Dimensions | 4 x 3.75 x 1.5" / 10.2 x 9.5 x 3.8 cm | | Weight | 0.5 lb / 0.2 kg | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.7 x 5.6 x 2.05" |
