User Manual for ESI U108 PRE 10-Preamp 8-Output USB Audio Interface

Click to enlarge the picture
ESI U108 PRE 10-Preamp 8-Output USB Audio Interface Contents of the user manual for the ESI U108 PRE 10-Preamp 8-Output USB
  • Product category: Audio Interfaces & Systems ESI
  • Brand: ESI
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ESI Audio Interfaces & Systems

ESI U108 PRE 10-Preamp 8-Output USB Audio Interface ESI U108 PRE 10-Preamp 8-Output USB Audio Interface
User manual for the ESI U108 PRE 10-Preamp 8-Output USB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ESI product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ESI user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ESI product will considerably shorten its lifespan!



Product description

The ESI U108 PRE is a high-speed USB 2.0 audio interface offering ten mic preamps, eight line outputs, and 24-bit / 96 kHz resolution, making it ideal for recording bands in the studio, live performances on stage, or multi-guest podcasts at home. Connect instruments such as guitar and bass to the two front-panel combo jacks, then select the Hi-Z switches for optimal signal transfer. A total of ten XLR inputs (two via the combo jacks) are provided, and selectable phantom power ensures proper operation of condenser microphones as well as dynamic mics.Utilize the eight 1/4" TRS line-level outputs to route submixes or individual tracks to a console, summing mixer, or multichannel headphone amplifier. Hook up a pair of monitors and headphones to the U108 PRE's 1/4" mix outputs and stereo headphone jack. LEDs across the front panel clearly indicate input levels, phantom power selection, and power status.The U108 PRE is compatible with Mac and Windows computers and includes a power adapter and one USB cable. Bundled software and licenses from Bitwig, Stanton, and Audified open creative opportunities for musicians, DJs, and podcast producers.

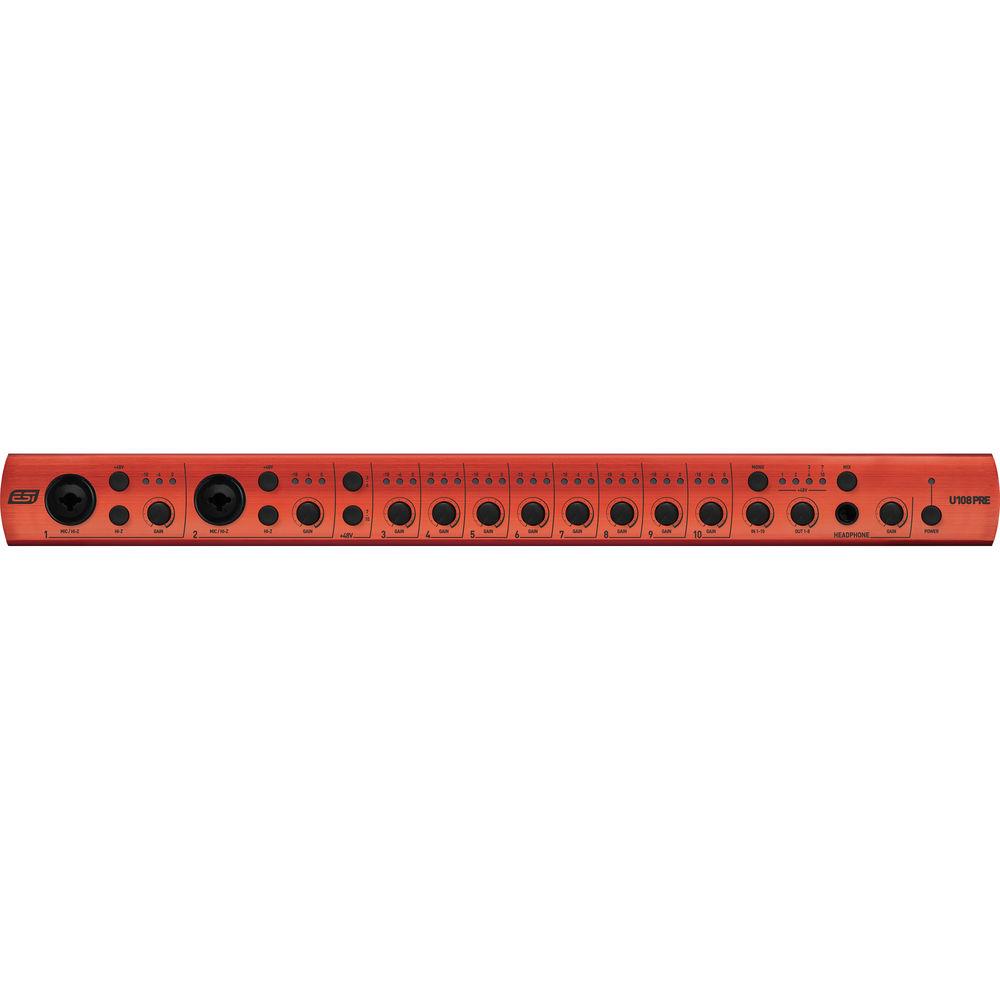

  • Per-input gain control and 3-stage level LEDs
  • Ten microphone preamps—two with XLR-1/4" combo inputs and selectable Hi-Z operation
  • 48 VDC phantom power selectable for channel 1, channel 2, channels 3-6, and channels 7-10
  • Eight 1/4" TRS line outputs for routing to an external mixer
  • Dedicated 1/4" stereo mix output jacks fed by an integrated monitoring mixer with controls for input 1-10 level, output 1-8 level, and mono/stereo mode
  • Front-panel 1/4" stereo headphone output with source selector
  • Supports Mac via CoreAudio, and Windows via ASIO 2.0, MME, WDM, and DirectSound (including DirectWIRE)
  • High-speed USB 2.0 computer connection
  • Includes Bitwig 8-Track DAW software, a license for Stanton's Deckadance LE DJ software, and a license for Audified's inTone 2 ESI Edition jamming tool
In the Box ESI U108 PRE 10-Preamp / 8-Output USB Audio Interface
  • 12 VDC Power Supply
  • USB Cable
  • Limited 2-Year Warranty
  • Guides & Manuals fwyvcbqxwcreyszwwffqwzzdxc Table of Contents




    Upload User Manual

    Have you got an user manual for the ESI U108 PRE 10-Preamp 8-Output USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for ESI U108 PRE 10-Preamp 8-Output USB Audio Interface can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for ESI U108 PRE 10-Preamp 8-Output USB Audio Interface can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the ESI U108 PRE 10-Preamp 8-Output USB Audio Interface can be downloaded in PDF format at the link stated below.
    Download PDF user manual - ESI U108 PRE 10-Preamp 8-Output USB Audio InterfaceDownload PDF User Manual - ESI U108 PRE 10-Preamp 8-Output USB Audio Interface
    (PDF file, 1.1 MB)


    Technical parameters

    ESI ESI-U108 Specs

    Channels of I/O Analog:
    10 Inputs / 8 Outputs at 96 kHz
    Max Sample Rate/Resolution 96 kHz / 24-Bit
    Display and Indicators 1 x LED (Power)
    4 x LEDs (Phantom Power)
    30 x LEDs (Input Level)
    Host Connection 1 x USB Type-B (USB 2.0)

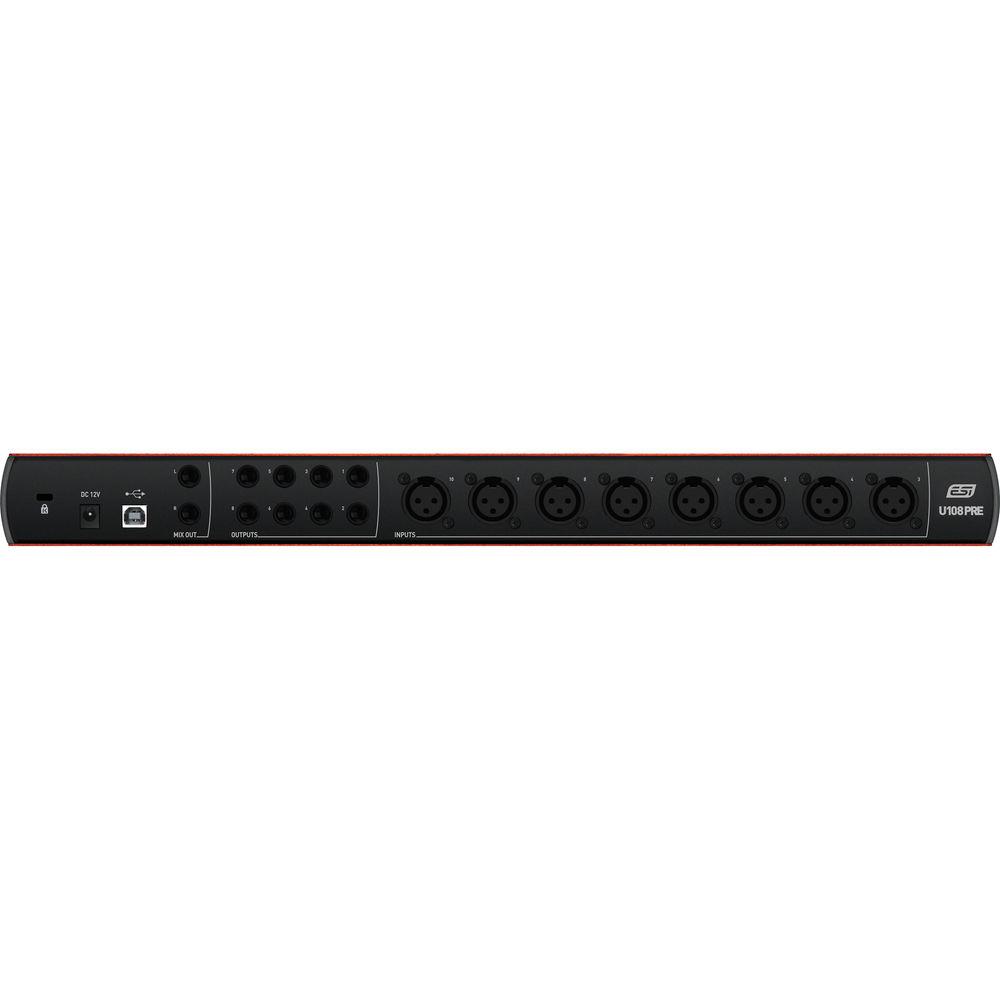

    Analog I/O 2 x Combo XLR / 1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
    8 x XLR 3-Pin Balanced Mic Input
    8 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Line Output
    2 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Monitor Output
    1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output
    Phantom Power +48 V (Selectable on Individual Inputs, On 4 Channels)
    Digital I/O None
    MIDI I/O None
    Memory Card Slot None
    Frequency Response AD/DA Converters:
    20 Hz to 20 kHz ±0.02 dB
    Dynamic Range A/D Converters:
    107 dBA
    D/A Converters:
    112 dBA
    Sample Rates Up to 96 kHz (AD/DA Conversion)
    Bit Depth Up to 24-Bit (AD/DA Conversion)
    Sync Sources Internal
    OS Compatibility macOS 10.7 or Later
    Windows 7
    Windows 8.1
    Windows 10
    Required Hardware USB 2.0 Port
    Internet Connection Required for Registration, Software/Driver Download
    Power Requirements AC/DC Power Adapter (Included)
    AC/DC Power Adapter 12 VDC (Included)
    Anti-Theft Features Kensington Security Slot
    Dimensions 17.72 x 5.71 x 1.77" / 45 x 14.5 x 4.5 cm
    Weight 4.7 lb / 2.1 kg (Without Accessories)
    Package Weight 6.32 lb
    Box Dimensions (LxWxH) 23.0 x 7.0 x 4.0"
