User Manual for ESI U22 XT - USB 2.0 Audio Interface Click to enlarge the picture
Contents of the user manual for the ESI U22 XT - USB 2.0
- Product category: Audio Interfaces & Systems ESI
- Brand: ESI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESI Audio Interfaces & Systems
 |
User manual for the ESI U22 XT - USB 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESI product will considerably shorten its lifespan!
|

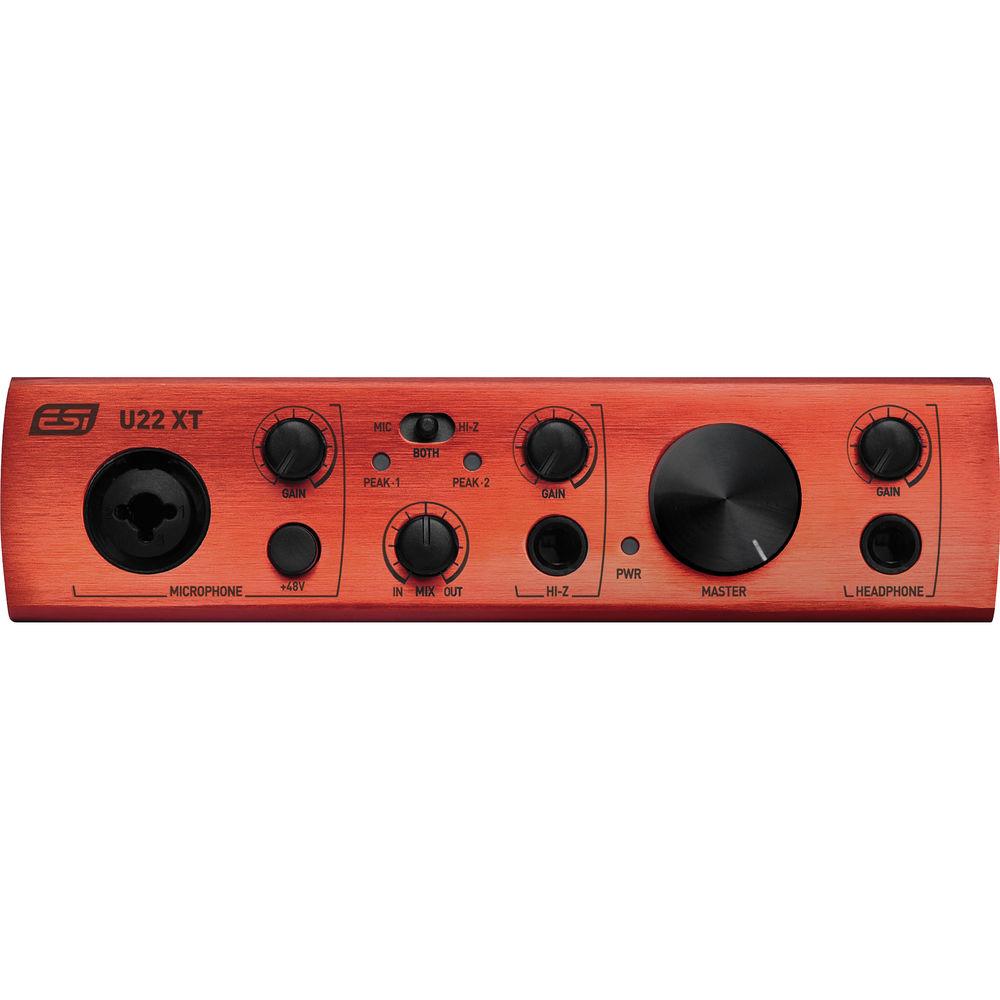

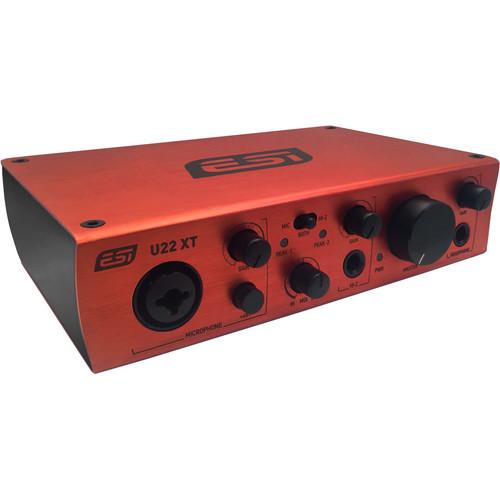

Product description The U22 XT from ESI is a two input, two output USB 2.0 audio interface featuring a single microphone input with phantom power and a Hi-Z instrument input. The unit provides low-latency drivers with support for WDM, ASIO 2.0, and Core Audio, based on the company's EWDM and DirectWIRE technology.
Included with the interface is Bitwig 8-Track software, an effective Digital Audio Workstation (DAW) that allows the user to start producing, performing, and designing audio straight away. A second license delivers Image-Line Deckadance LE software for DJ-like performance. - Two input/two output USB 2.0 audio interface
- Microphone preamp with +48V phantom power
- 1/4" Hi-Z instrument input
- Up to 24-bit/96 kHz resolution
- Unbalanced line input on RCA connectors
- Balanced line output with 1/4" TRS connectors
- ADC with 102 dB(A) dynamic range
- DAC with 108 dB(A) dynamic range
- Input/output monitoring control on front panel
- Master volume control on front panel
- Includes Image-Line Deckadance LE software license
- Includes Bitwig 8-Track DAW software license
In the Box ESI U22 XT - USB 2.0 Audio Interface USB Cable 2 x Software Licenses One (1) Year Limited Warranty User Manual PDF 934.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ESI U22 XT - USB 2.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESI U22 XT Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 1 x Combo XLR / 1/4" Mic/Line Input
1 x 1/4" (6.3 mm) TS Hi-Z Input
1 x Stereo RCA Line Input
1 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Output | | Phantom Power | +48 V | | Digital I/O | None | | MIDI I/O | None | | | | Dynamic Range | A/D Converters:
102 dBA
D/A Converters:
108 dBA | | | | Sample Rates | Up to 96 kHz | | Bit Depth | 24-Bit (AD/DA Conversion) | | | | OS Compatibility | macOS 10.7 or Later
Windows Vista
Windows 7
Windows 8.1
Windows 10 | | Required Hardware | Available USB 2.0 Port | | | | Power Requirements | USB Bus-Power | | | | Dimensions | 6.9 x 4.7 x 1.8" / 175 x 120 x 45 mm | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.0 x 5.8 x 3.2" |
