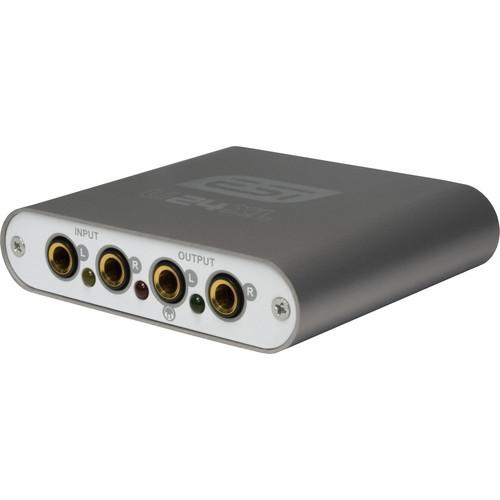

User Manual for ESI U24 XL - USB Digital Audio Interface Click to enlarge the picture
Contents of the user manual for the ESI U24 XL - USB Digital
- Product category: Audio Interfaces & Systems ESI
- Brand: ESI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESI Audio Interfaces & Systems
 |
User manual for the ESI U24 XL - USB Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESI product will considerably shorten its lifespan!
|
Product description The U24 XL from ESI/Ego-Sys is an extremely small and portable USB audio interface that nonetheless delivers excellent results. The 2 input/2 output device delivers flexibility along with digital S/PDIF connections in both optical and coaxial formats.

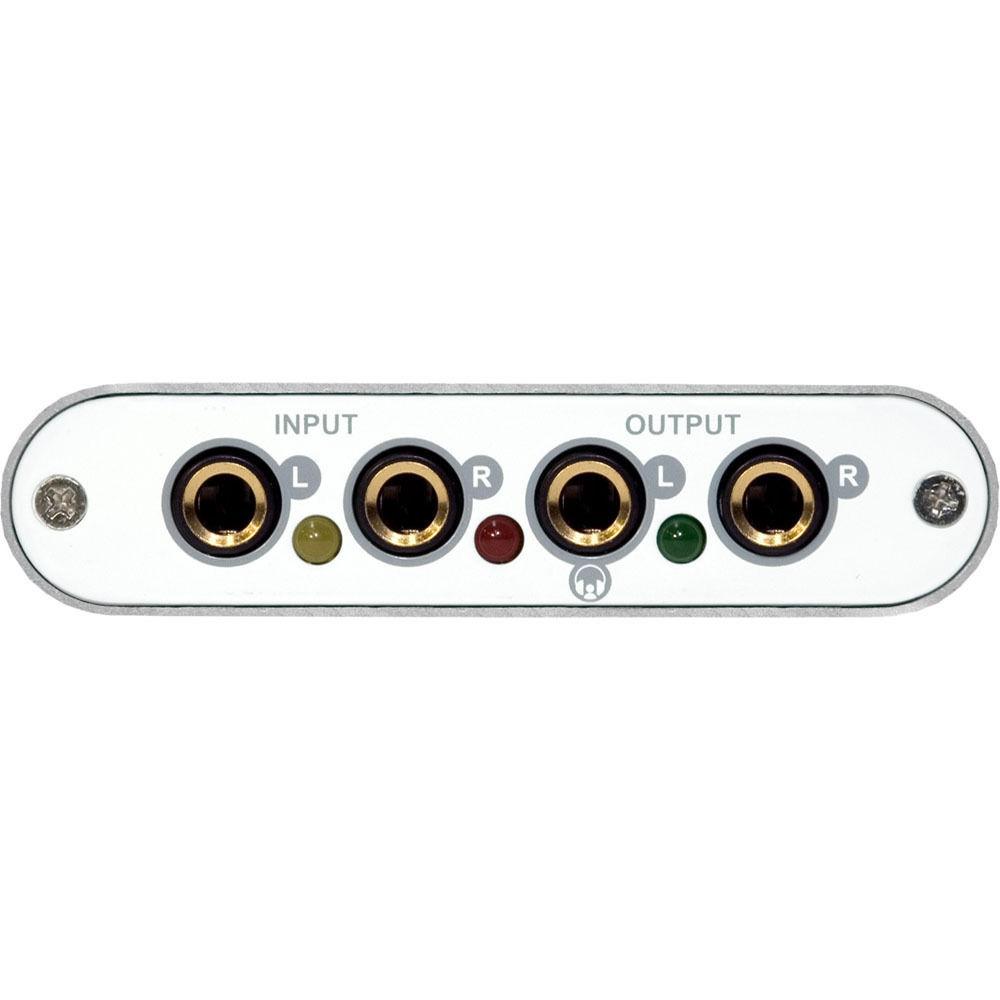

The unit ships with Cubase LE 4.0 from Steinberg for both Mac and PC. It delivers maximum performance under Mac OS X as well as under any current Windows environment, including XP, Vista, and Windows 7. - Two analog inputs and two analog output channels (1/4" TRS connectors)
- One output connector usable as headphone output

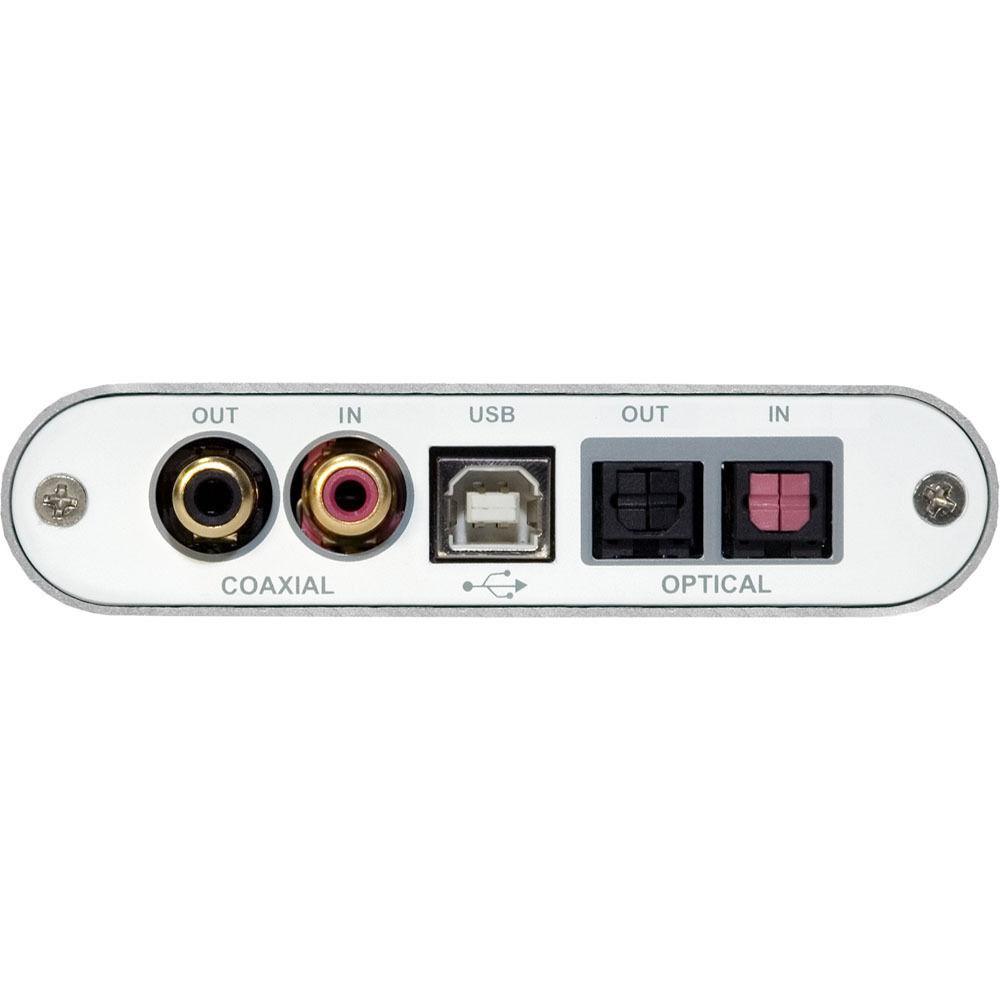

- S/PDIF digital in and out available via optical (TOSLlink) and coaxial (RCA) connectors
- Real-time input monitoring for incoming signals
- Drivers for Windows 7/Vista/XP with ASIO support with low latency
- Core Audio support under Mac OS X 10.4 and higher
- Bundled with Steinberg Cubase LE 4 for PC and Mac
In the Box ESI U24 XL - USB Digital Audio Interface USB Cable Software One (1) Year Warranty User Manual PDF 915.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ESI U24 XL - USB Digital Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESI U24 XL Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 1.0) | | Analog I/O | 2 x 1/4" (6.3 mm) TRS Input
2 x 1/4" (6.3 mm) TRS Output | | Digital I/O | 1 x TOSLINK / S/PDIF Input
1 x TOSLINK / S/PDIF Output
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output | | MIDI I/O | None | | | | OS Compatibility | macOS 10.4 or Later
Windows XP
Windows Vista
Windows 7 | | Processor Requirement | Mac:
PowerPC G4
PC:
600 MHz Intel Pentium III | | RAM Requirements | 512 MB | | Required Hardware | Available USB Port
Available DVD-ROM Drive, USB Port | | Internet Connection | Required for Registration | | | | Power Requirements | USB Bus-Power | | | | Dimensions | 3.9 x 3.5" / 10 x 9 cm | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.1 x 6.8 x 1.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
