User Manual for ESI uniK 08 - 8" Professional Studio Reference Monitor Click to enlarge the picture
Contents of the user manual for the ESI uniK 08 - 8" Professional
- Product category: Studio Monitors ESI
- Brand: ESI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ESI Studio Monitors
|
User manual for the ESI uniK 08 - 8" Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ESI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ESI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ESI product will considerably shorten its lifespan!
|
Product description The single uniK 08+ from ESI is a professional-quality 2-way bi-amped monitor developed for professional audio engineers and producers looking for high-performance sound reproduction. The monitor utilizes a 1.9 x 1.0" low-mass magnetostatic tweeter and an 8" Kevlar curved-cone woofer, which combine to provide a flat frequency response of 37 Hz to 25 kHz with an SPL output of 105 dB (peak 108 dB). The tweeter features an upgraded design with low moving mass for extended frequency, fast transient response, and high sound resolution, while the matching woofer's Kevlar composite cone offers high stiffness, ensuring better piston motion and exceptional low-end sound reproduction. The built-in crossover ensures a proper phase response and safe power limiting for each of the drivers. Designed for use with balanced and unbalanced signals, the monitor offers a combo XLR-1/4" input connector. The two amplifiers provide 70W to the tweeter and 70W to the woofer. The rear of the enclosure offers a character control knob with a range of smooth to bright, plus a high-frequency control (10 kHz) and low frequency control (100 Hz). Other features include a dedicated ground lift, standby mode for energy saving, and flexible rubber feet that are discretely height adjustable and help decouple the enclosure, reduce vibrations, and precisely direct the sound to the optimum position. Additionally, the monitor includes a bass port plug, which is inserted into the rear vent port when placing the monitor against a wall or in a corner. The uniK 08+ ships with a power cord. -
- Bi-amp 2-way powered speaker system
- Active studio monitor speaker
- HF Driver: 1.9 x 1.0" low-mass magnetostatic tweeter 1.9 x 1.0"
- LF Driver: 8" Kevlar curved cone (magnetic shielding type)
- Output Power: 140 W (HF: 70 W, LF: 70 W)
- Frequency Response: 37 Hz - 25 kHz
- Input Impedance: 27.2 kOhm (balanced) / 13.6 kOhm (unbalanced)
- Crossover Point: 3.2 kHz
- SPL: 105 dB, peak 108 dB
- Input Connectors: XLR / TRS 1/4" combo connector, (balanced / unbalanced)
- Gain Control: -14 to +14 dB

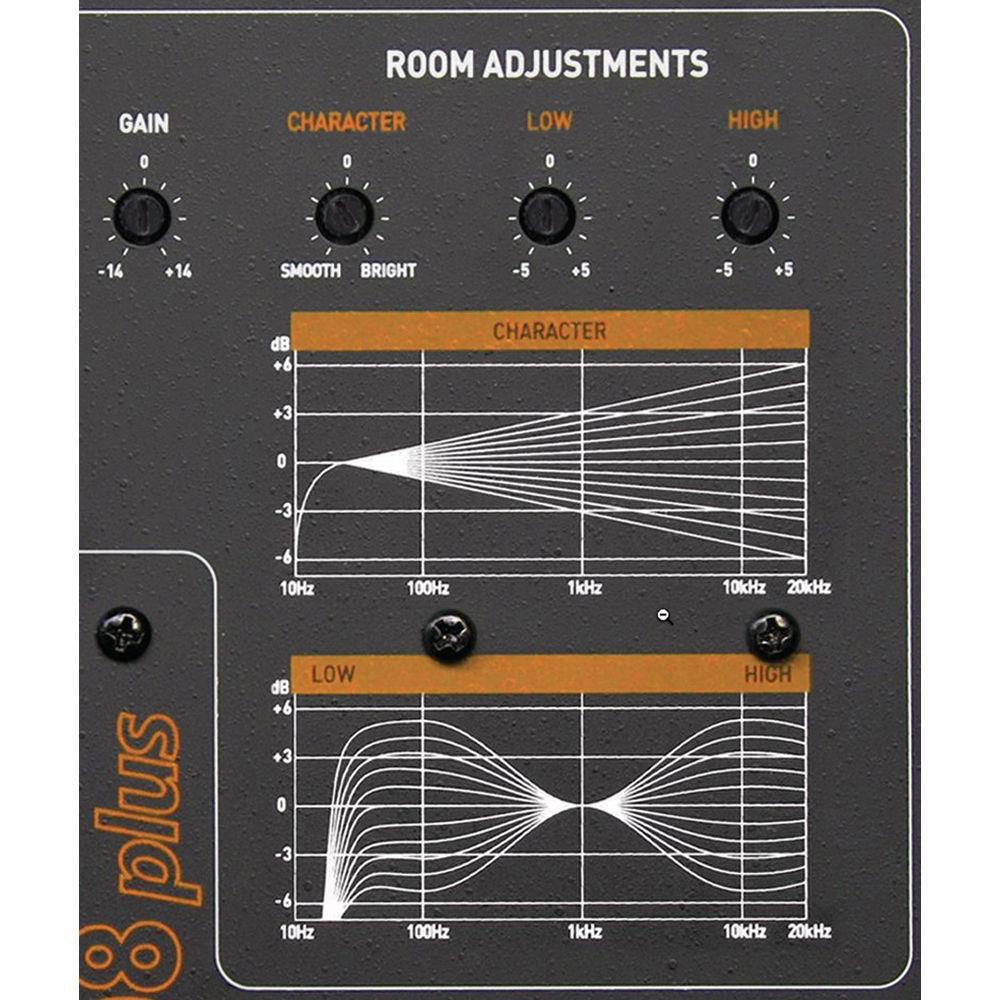

- Room Adjustments Control:
- Character: -6 to +6 dB
- Low: -5 to +5 dB
- High: -5 to +5 dB
- Rear bass-reflex ventilation, optimized for near field application
- Bass Port Plug: Changes the open bass reflex to a closed system for smaller rooms or wall/corner placement
- Ground lift switch
- Standby function, can be turned on and off
- Indicator: multi-color LED on front panel, power on orange, standby red
- Feet: 4 pieces rubberized, separately adjustable height
In the Box ESI uniK 08+ - 8" Professional Studio Reference Monitor (Single) Bass Port Plug Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ESI uniK 08 - 8" Professional Studio Reference Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersESI uniK 08+ Specs | Monitor Type | Active 2-Way | Enclosure | Bass-Reflex, Shielded | Power Rating | 140 W | Drivers | HF Driver: 1 x 1.9" / 49 mm Tweeter LF Driver: 1 x 8" / 203.2 mm Kevlar Curved Cone Oval Tweeter Measure 1.9 x 1" / 49 x 26 mm | Amplification | HF Amplifier: Rated at 70 W LF Amplifier: Rated at 70 W | | Frequency Range | 37 Hz to 25 kHz | Maximum Sound Pressure Level (SPL) | 108 dB | | EQ | 1 x LF Shelf: -5 to +5 dB at 100 Hz 1 x HF Shelf: -5 to +5 dB at 10 kHz 1 x HF Shelf: -5 to +5 dB at 10 kHz 1 x LF Shelf: -5 to +5 dB at 100 Hz | | Crossover Frequency | 3.2 kHz | | I/O | 1 x Combo XLR / 1/4" Balanced/Unbalanced Analog Input (27.2 kOhms) 13.6 kOhms for Unbalanced | | AC Input Power | 100 to 240 VAC at 50/60 Hz | Power Consumption | 160 W | | Dimensions (W x H x D) | 9.9 x 13.9 x 12.6" / 252.0 x 353.0 x 319.0 mm | Weight | 17.9 lb / 8.1 kg |
