User Manual for Estes Proto-X FPV Quadcopter Click to enlarge the picture
Contents of the user manual for the Estes Proto-X FPV Quadcopter
- Product category: See All Drones Estes
- Brand: Estes
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Estes See All Drones
|
User manual for the Estes Proto-X FPV Quadcopter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Estes product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Estes user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Estes product will considerably shorten its lifespan!
|

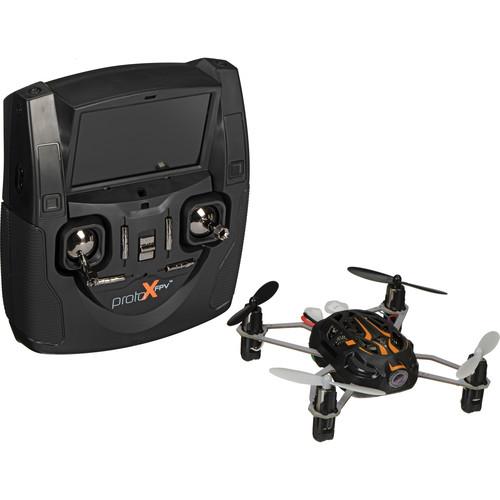

Product description Aerial Photography and Drone Glossary Read More yqffvxuf Enjoy the immersive experience of first-person view flying, and record your adventures to share with friends with the Proto-X FPV Quadcopter from Estes. This 4.5" diagonal mini quadcopter is ready-to-fly - meaning no assembly is required - and includes an integrated flight camera with 720p, 30 fps recording capability. So you can fly with a copter's eye view, the transmitter (radio controller) features a 4.5" LCD screen and built-in video receiver. Video can be recorded either within the camera or remotely on the transmitter - in either instance, a microSD card is used. A single 2GB microSD card and USB card reader come in the box.
A computerized flight control system with multiple flight modes means the Proto-X is suitable for all skill levels. By default, full safties are enabled to help keep the quadcopter flying even if the pilot makes an overzealous move. For experienced multi-rotor fliers, Expert Mode can be enabled to unlock the Proto-X's full potential. In this mode, aerial acrobatics including flips become possible. The Proto-X is suitable for indoor use, and can be flown outside as long as wind is minimal.
Propelling the quadcopter is a 650mAh LiPo battery, which is included along with a USB charging cable. The transmitter powers from four standard AA batteries, available separately. - Ready-to-Fly
- A 2.4 GHz, 6-channel transmitter (radio controller) comes included and no assembly is required. The only thing you will need for it is four AA batteries. The transmitter features a 4.5" LCD display showing a live feed from the flight camera. A nondetachable LCD hood is included for use outdoors in bright sunlight
Note: Be sure to follow the pre-flight setup instructions in the manual before your first flight - First-Person View Fun
- The integrated 720p camera in the Proto-X plus a 4.5" full-color display on the transmitter (radio controller) combine to give you an immersive FPV (first-person view) flying experience. On top of that, you can record your aerial adventures to share with friends - for this purpose, a 2GB microSD card and USB card reader are included
- On-Board or Transmitter Video Recording
- You have two choices for recording video: placing a microSD card in the camera itself; or placing a microSD card in the transmitter. The advantage of using the transmitter is that you can start and stop recording as you like; the advantage of recording in-camera is higher quality (720p at 30 fps) and an image that is free from radio static. A single 2GB card is included in the box - however, with a second card you can record both in-camera and to transmitter at the same time
- Intelligent Flight Control System
- A 3-axis gyro plus three accelerometers provide the flight control system (the on-board computer) with essential data to help ensure a stable flying condition - even during the most daring aerial acrobatics
- Expert Mode
- In this mode, computerized intervention is minimized to give advanced pilots the greatest degree of flying freedom
- Flip Mode
- When in Expert Mode, you can use rapid stick movements to flip the Proto-X in any direction - left, right, front, back (refer to manual for details)
Note: The Proto-X will not flip if the battery is too low - Seven LED Running Lights
- Seven on-board running lights add to the fun, and allow visual contact with the Proto-X to be maintained at night
- 650mAh 1S LiPo Battery Included
- The included flight battery features USB charging, making it easy to find a power source from which to refuel. A USB power cord also comes in the box
- Spare Rotors In the Box
- A set of four spare rotor blades are included, as well as a special "U" wrench used to remove and install them
UPC: 047776047167 In the Box Estes Proto-X FPV Quadcopter 6-Channel, 2.4 GHz Transmitter with 4.5" Display 650mAh 1S LiPo Flight Battery 2GB microSD Card Card Reader USB Cable for Charging Sun Shield for Transmitter Display 4 x Spare Rotor Blades Blade Removal Tool Limited 90-Day Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Quick start Guide PDF 931.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Estes Proto-X FPV Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEstes Proto-X Specs | | | Sensors | 3-axis gyor
3 x accelerometers | | | | Resolution | 1280 x 720 (720p) | | Frame Rate | 30 fps | | Lens | FOV: 120° | | Recording Media | MicroSD card | | | | Type | 650mAh 1S LiPo battery (1 x included) | | Charging Method | USB | | | | Frequency | 2.4 GHz | | Number of Channels | 6 | | Control Modes | Default: Mode 2
Supported: Mode 1 | | FPV Display | Size: 4.5" | | Power Requirements | 4 x AA batteries (available separately) | | | | Replacement Parts | ESTE4556: Body Set
ESTE4557: Rotor Blade Set (4-pack)
ESTE4558: Motor Holder Set (4-pack)
ESTE4559: Rubber Landing Gear (4-pack)
ESTE4560: Screw Set (4-pack)
ESTE4561: Main PCB
ESTE4562: FPV Camera
ESTE4563: 5.8G Antenna
ESTE4564: Motor Set (4)
ESTE4565: USB Charging Cord
ESTE4566: LiPo 1S 3.7V 650mAh Flight Battery
ESTE4567: Rotor Blade Wrench | | Dimensions | Diagonal Distance Between Motors: 4.5" / 115 mm
Blade Length: 2.2" / 55 mm | | Weight | Proto-X: 2 oz / 58 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 15.2 x 7.9 x 4.2" |
