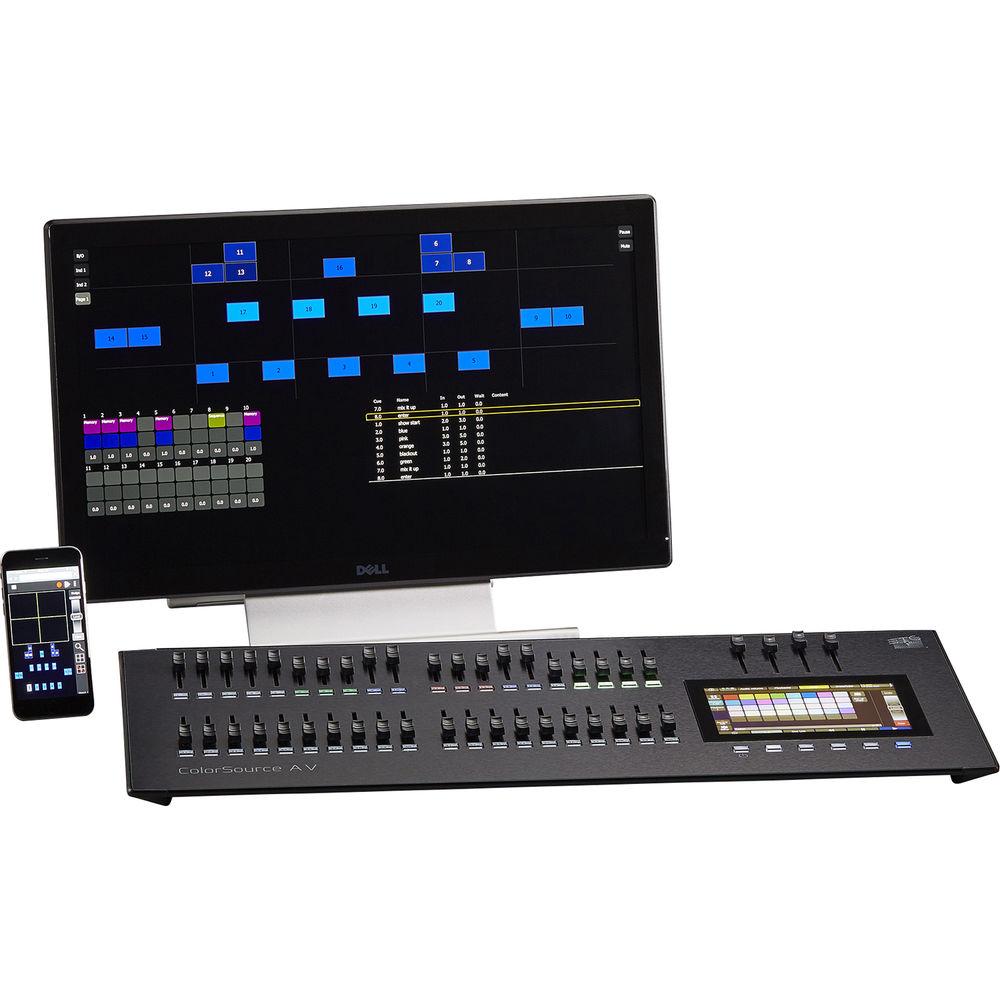

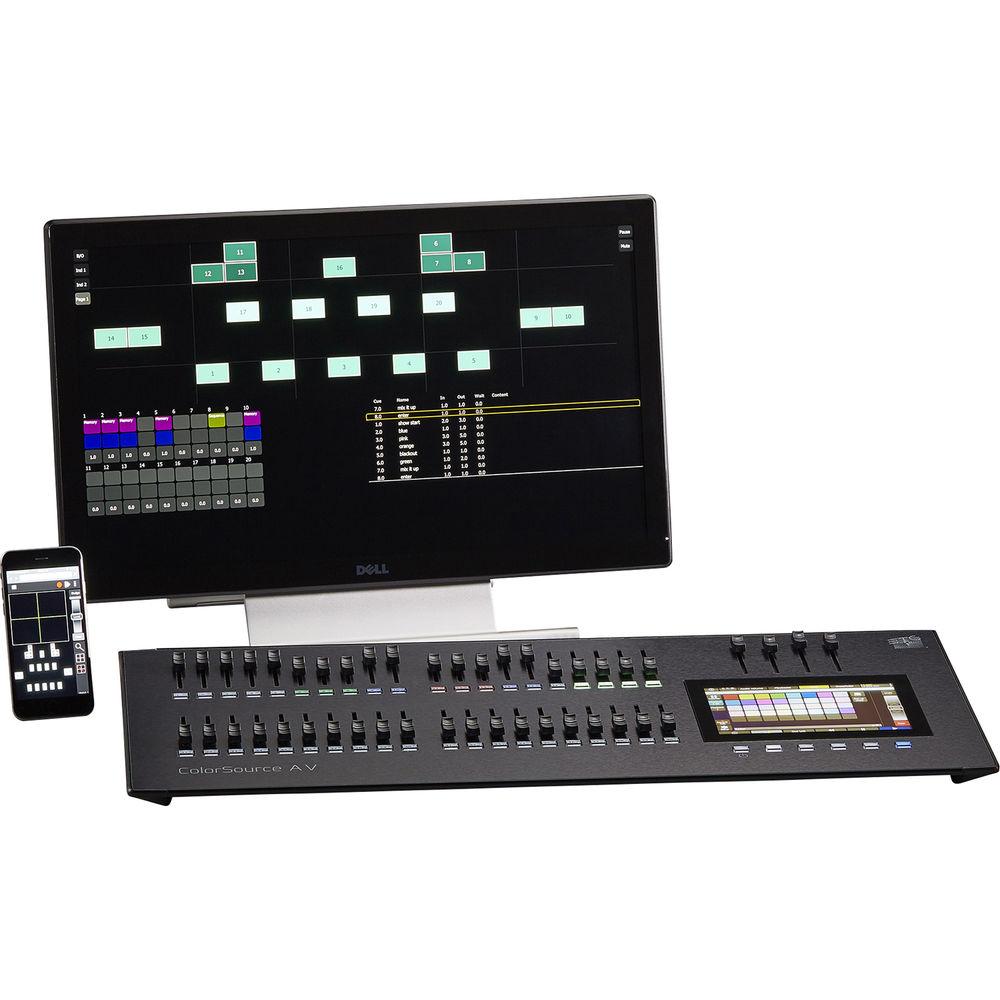

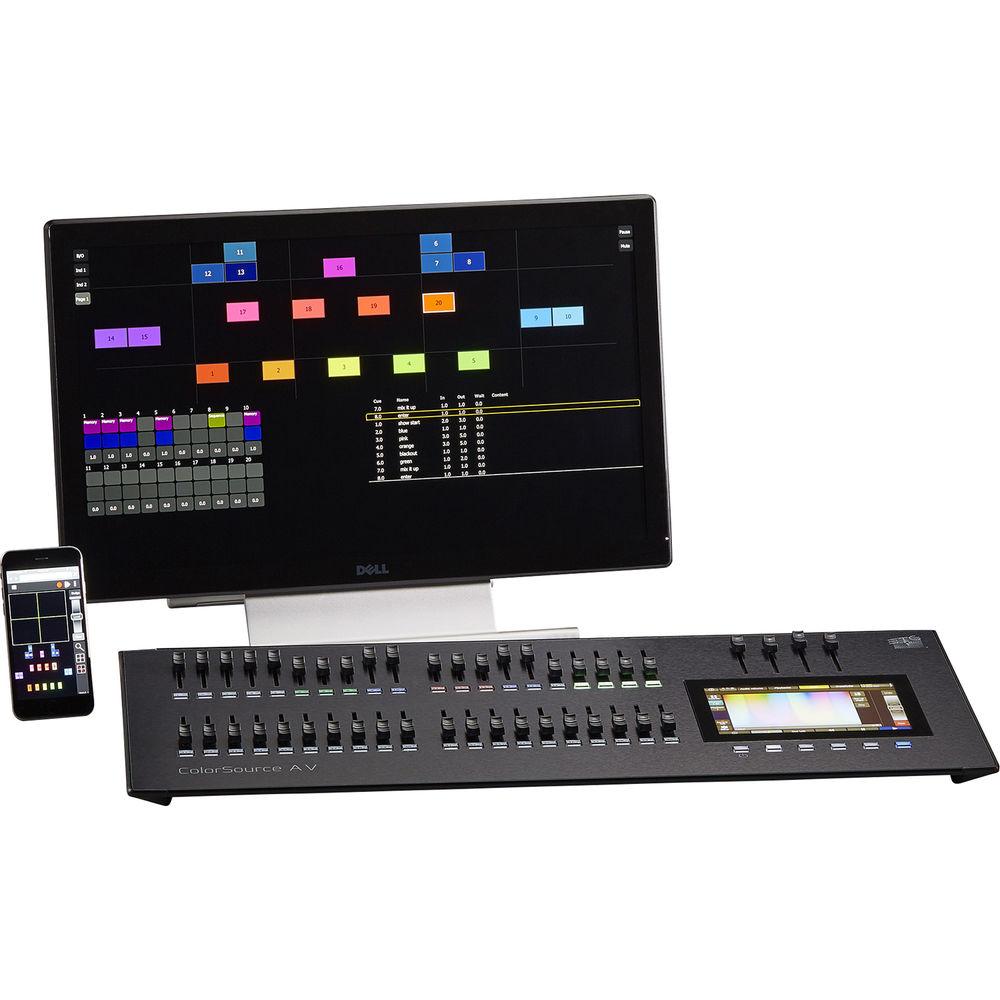

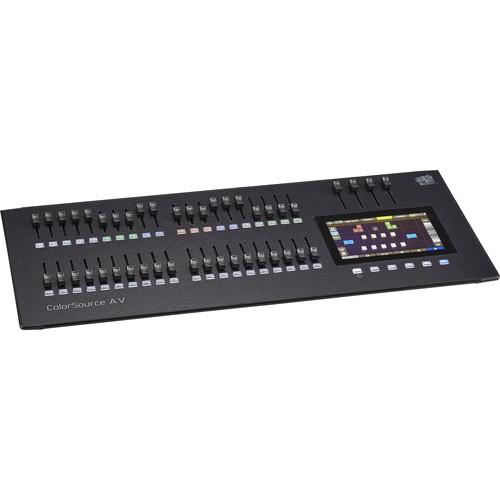

Product description What You Need to Know When Working with DMX Read More The ColorSource AV Console from ETC is a touchscreen-enabled, 40-fader, DMX lighting control console. The 40 faders can control up to 80 fixtures, and each fader has its own individual programmable bump button. Built into the unit is a 7" color multi-touch touchscreen that allows you to arrange a lighting plot with connected fixtures. Remote Device Management (RDM) allows the console to identify enabled fixtures, auto-populate and patch them.

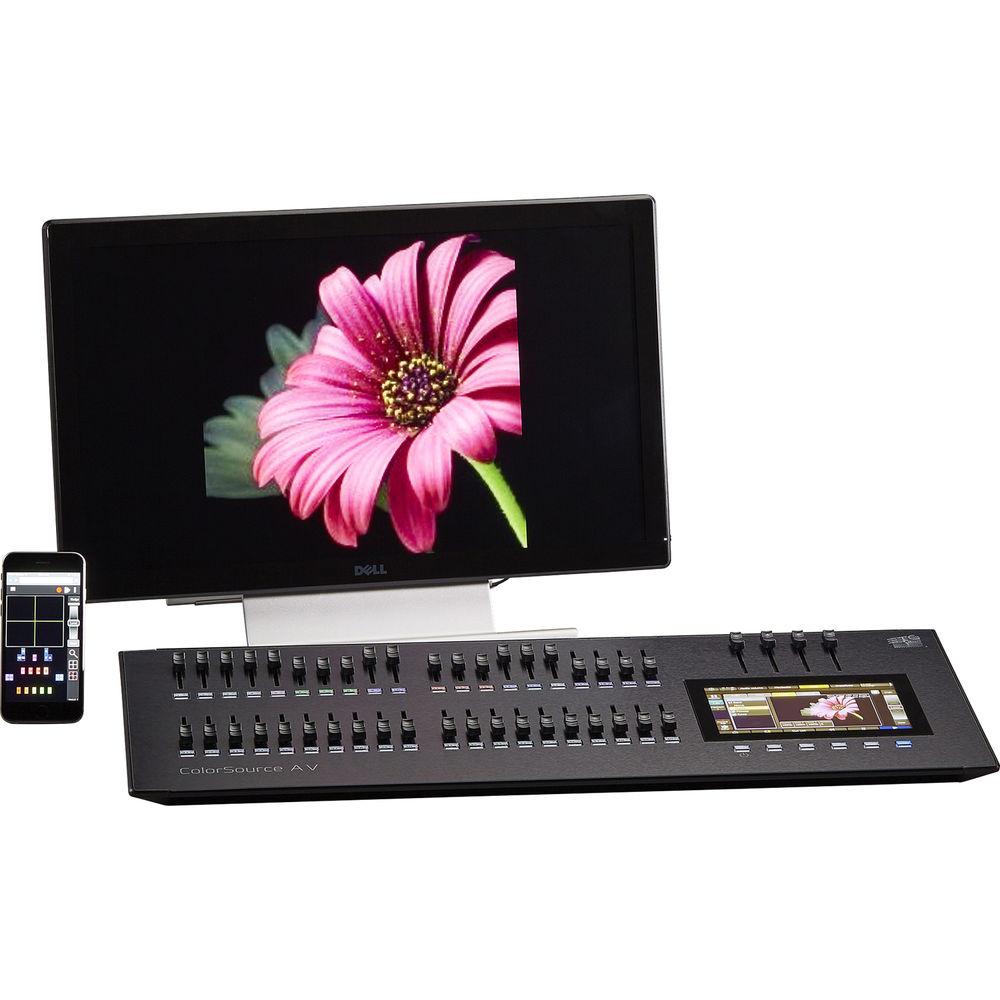

The console is flexible, with four configurable function faders, as well as one home and five configurable softkey buttons. You can program and save a cue list with 999 cues, and the unit allows you to save lighting looks to 10 pages with 40 playbacks each for a total of 400 playbacks. In addition, you can program repetitive light patterns and apply them to channels and call them up as needed. The AV Console comes equipped with an HDMI and audio output, so you can run sound cues, images, interactive Video Toy effects, sound-to-light effects, and lighting cues. - Multiple bump modes: Flash, Solo, Solo Change, Move/Go
- Full-history rubber banding for playbacks
- On-board help system and start-up tutorial videos
- Extensive library for controlling moving lights
- 40 programmable color chips and color picker
- Innovative touch-based parameter controls
- Auto fixture selection on fader moves
- Customizable Channel display using Stage Map
- Effects: Intensity, color, shape, and parameter
- Fixture Tags for Quick Selects
- 27 Quick Select groupings
- Virtual keypad for level entry
- "Amigo" browser-based remote
- 25GB onboard storage for show files and media
- Suitable for theaters, touring productions, small TV studios, and Tradeshows
In the Box ETC 40-Fader ColorSource AV Console with Network, Audio, and Video Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC 40-Fader ColorSource AV Console with Network, Audio, and Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 40 AV Specs | Connectors | 2 x DMX/RDM port
2 x USB port
1 x RJ45, network pork
1 x HDMI, monitor and media playback
1 x 3.5 mm phone jack, audio input
1 x 3.5 mm phone jack, audio output | | Audio Input | Line Input: -10 dBV (316 mV RMS)
Input Impedance: 29 kOhms | | Audio Output | Line Output: -10 dBV (316 mV RMS) at 10 kOhms line level
Load Impedance: 10 to 200 kOhms | | Supported Media | Audio: mp3, aac, and wav files (44.1 kHz sample rate, 4 GB maximum file size)
Image: jpg, png, tiff, and bmp files (1280 x 720 maximum resolution) | | Built-in Storage | 25 GB | | Dimensions | 2.5 x 26.3 x 10.8" (6.4 x 66.8 x 27.4 cm) | | Weight | 9.55 lb (4.33 kg) | | | | Package Weight | 13.6 lb | | Box Dimensions (LxWxH) | 30.0 x 14.0 x 5.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to ETC 40-Fader ColorSource AV Console with Network, Audio, and Video
| Subject: ColorSource 40 AV not turning on | | Date: 05.05.2022 14:19:49 | Name: Elza Wright | | The ColorSource 40 AV board is not booting when I press the power button. The board was active just a couple of weeks ago for our school play. I have checked the power source but other than that there seems to be nothing else to check. Any direction would be appreciated. Thank you for your prompt response. | | Post reply |
