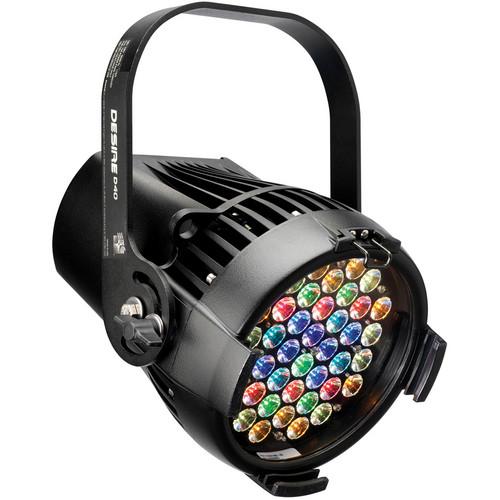

Product description The ETC 7410A1401-0A Selador Desire D40 Vivid LED Fixture (Black) with its highly efficient primary lenses and careful color choices make the D40 fixture ideal for stage and studio where strong color and high intensity are required. The Selador x7 Color System produces a large range of spectrally balanced, saturated, and tinted color choices. A rugged, die-cast enclosure, noiseless fan-free operation, multiple lens options, and advanced user interface make this fixture ideal for multiple applications.
The D40 fixture is based on the x7 Color System, which uses 7 different LED colors to achieve true, usable broad-spectrum color. Equip a D40 luminaire with any 1 of the 7x color arrays to best suit the intended application. - The x7 Color System array balanced for best all-round use as a color changing wash luminaire
- 40 LED color mixing wash fixture
- Rated for IP20 dry location use

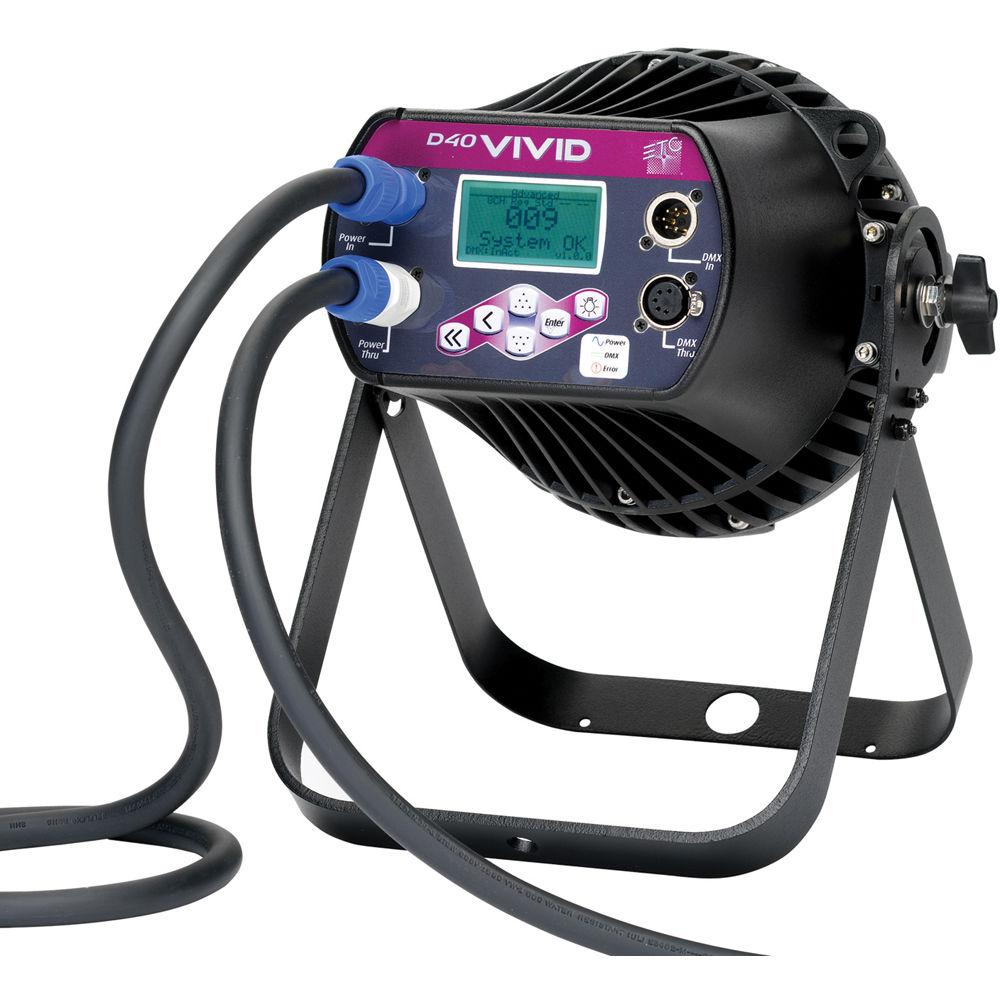

- Power and DMX in / thru connections for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Rugged, die-cast all-metal housing
- Easy access slots for secondary lenses and standard 190mm PAR accessories

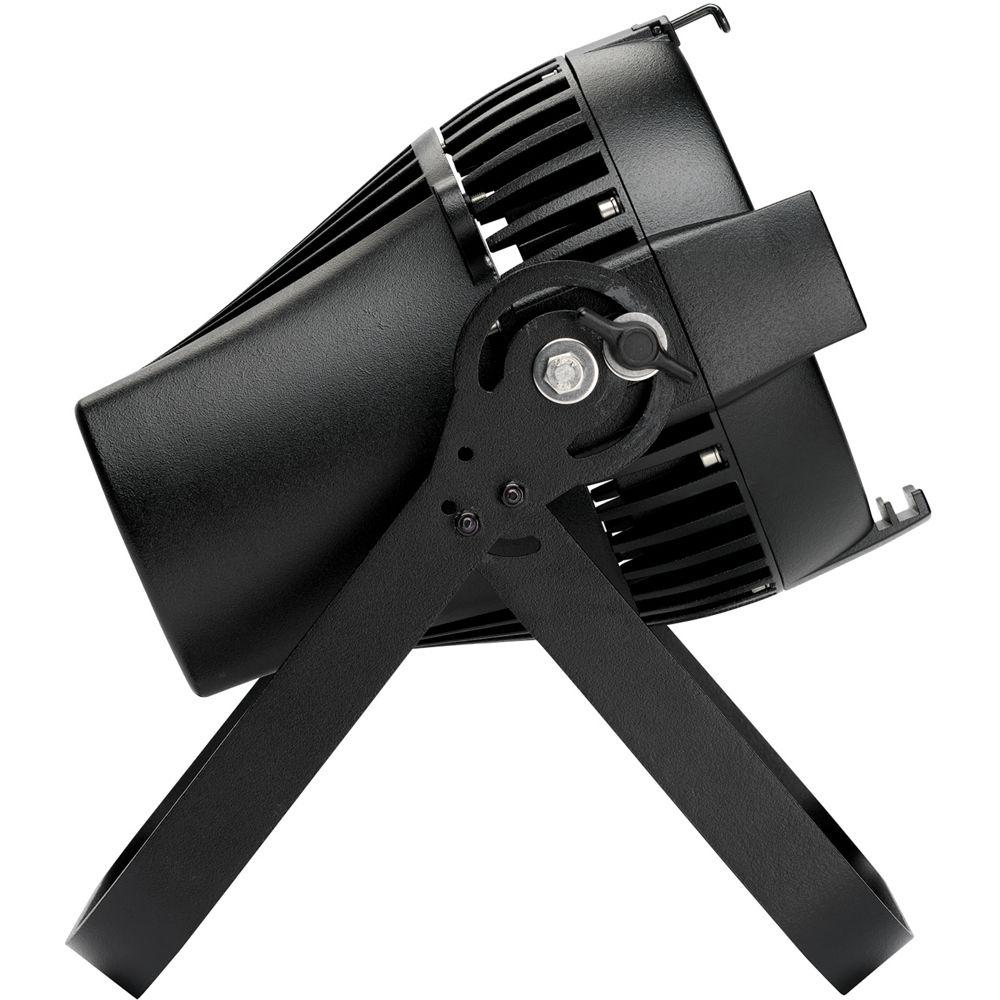

- Hanging yoke is standard; optional yoke / floor stand available
- Neutrik power in and thru connections (dry location version)
- Up to 10 fixtures may be linked via power in / thru connectors per 15 A circuit using 1mm² cables as supplied
- Requires power from a non-dim source
- 50,000 hour LED life (50,000 hours to 70% intensity)
- 40 Luxeon Rebel 2.5 W LED emitters
- Broad spectrum color interacts seamlessly with conventional sources
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Exclusive optional red-shift option emulates tungsten dimming performance characteristics
- Secondary lenses available for multiple beam spread options
- Each luminaire ships with a 25° (7410K1010) round lens; additional lenses must be ordered separately
- DMX512 in and thru via 5-pin XLR connectors
- Multiple control options including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades
- RDM functionality for address and setting changes
- Active electronic thermal management for droop-free operation
- Convection cooled for use in acoustically sensitive installations
- Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free airflow around fixture housing
In the Box ETC 7410A1401-0A Selador Desire D40 Vivid LED Fixture (Black) Hanging Yoke 25° Secondary Lens Parallel-Blade U-Ground Connector (Edison) 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC 7410A1401-0A Selador Desire D40 Vivid LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D40 Vivid Specs | Rating | D40 Vivid at 3200 K
CRI: 87
CQS: 89
Color Fidelity: 89
D40 Vivid at 5600 K
CRI: 90
CQS: 92
Color Fidelity: 92 | | Mode | Boost-Cold:
Degree: 17°
Candela: 101,900
Field Lumens: 2,540
Beam Lumens: 1,200
Lumens Per Watt: 26.7
Regulated:
Degree: 17°
Candela: 87,200
Field Lumens: 2,150
Beam Lumens: 1,020
Lumens Per Watt: 26.5 | | Illuminance | 10,968 lux @ 9.84' (3 m) throw distance & 2.95' (0.9 m) field diameter
4,875 lux @ 15.1' (4.6 m) throw distance & 4.59' (1.4 m) field diameter
2,742 lux @ 20' (6.1 m) throw distance & 6.23' (1.9 m) field diameter
1,755 lux @ 24.93' (7.6 m) throw distance & 7.55' (2.3 m) field diameter
10.76 lux @ (97 m) throw distance
| | Color Temperature | At 3,200 K
CQS: 89
CRI: 87
At 5,600 K
CQS: 92
CRI: 90 | | Certifications | CE compliant, UL and cUL Listed | | Power Input | 100 to 240 VAC, 50/60 Hz | | Maximum Power Consumption | 110 W 0.48 A at 230 V | | Field Angle | 17° (primary) | | Ambient Operating Temperature | -4 to 104°F (-20 to 40°C) | | Weight | 14.1 lb (6.4 kg) | | | | Package Weight | 20.35 lb | | Box Dimensions (LxWxH) | 17.6 x 15.5 x 13.4" |
