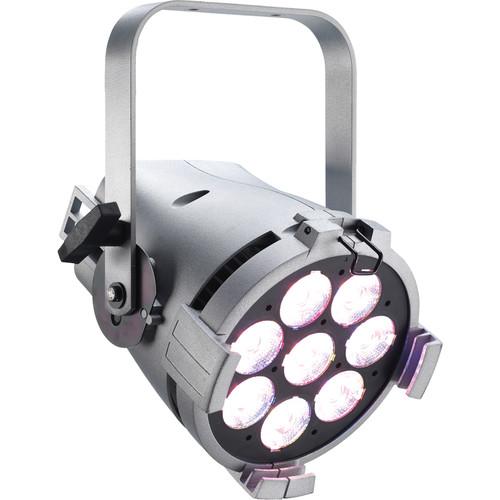

User Manual for ETC ColorSource PAR - RGB-L LED Wash Light Click to enlarge the picture
Contents of the user manual for the ETC ColorSource PAR - RGB-L LED
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC ColorSource PAR - RGB-L LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The white ColorSource PAR from ETC is an LED wash light that offers bright output, a wide color palette, and a high-quality build with a compact design. Using ETC's unique RGB-L color system (red, green, blue, lime), the ColorSource PAR offers color options not readily available with other systems. The unit operates with simple RGB input and automatically adds lime as necessary. The luminaire supports both DMX and RDM protocols, in addition to operation via the 3-button, 7-segment display menu on the rear panel. Up to twelve presets and five sequences can be customized, stored, and recalled from the on-board menu. Slots on the unit allow for the use of secondary lenses and standard 7.5" PAR accessories (available separately). A hanging yoke and powerCON to Edison cable are included. - Applications
-
- Houses of worship
- Universities and schools
- Hospitality
- Retail
- Exhibition centers
- Meeting rooms
- Clubs
- Cafeterias
- Attributes
-
- ETC's RGB-L chipset (Red, Green, Blue, and Lime)
- Simple RGB control, adds lime automatically when needed
- Homogenized optics for a consistent, smooth beam
- Brightness and color range unique amongst 4-color systems
- Simple user interface with 7-segment display
- Save and access 12 presets and 5 sequences from the on-board menu
- PowerCON in and thru
- DMX/RDM in and thru (5-pin)
- LED droop compensation to ensure consistency across fixture
- Optically calibrated to ensure consistency across fixture
- Tour-ready, aluminum housing
- 15-bit virtual dimming engine provides smooth, high-quality theatrical fades
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
- Up to 9 luminaires (15A max) may be linked via the power thru connectors (10 luminaires total per circuit) when used with the R20 relay module or Unison Echo Relay Panel (available separately). Consult breaker trip curves when used with other equipment
- ETL Listed to UL1573
In the Box ETC ColorSource PAR - RGB-L LED Wash Light (White) Power Cord with Edison Plug Hanging Yoke Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC ColorSource PAR - RGB-L LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC ColorSource PAR Specs | Light Source | 40 x Luxeon Z LED emitters (five per optic)
8 x RGB-L optics (red, green, blue, lime) | | Life Expectancy | 20,000 hours at 70% intensity | | Illuminance | 5,102 lux @ 10' (3 m)
1,276 lux @ 20' (6 m) | | Color | RGB color mixing | | Beam and Field Angle | 14.5° / 24.9° | | Protocols | DMX, RDM | | DMX Channel Modes | 1 x Channel Mode: 5 Channels | | DMX Connectors | Input: 5-pin XLR
Output: 5-pin XLR
DMX termination required | | Display/Controls | 7-segment LED display with three-button interface | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: powerCON
Output: powerCON | | Power Linking | 9 x luminaires (15 A max); 10 luminaires total per circuit
Requires R20 relay module or Unison Echo Relay Panel (available separately) | | IP Rating | IP20 | | Ambient Operating Temperature | 32° to 104°F (0° to 40°C) | | Cooling | Variable-speed fan | | Dimensions (HxDxW) | 12.2 x 7.98 x 9.45" (310 x 203 x 240 mm) | | Weight | 8.3 lb (3.77 kg) | | | | Box Dimensions (LxWxH) | 13.0 x 11.0 x 10.0" |
