User Manual for ETC ColorSource Relay with Wireless Receiver Click to enlarge the picture
Contents of the user manual for the ETC ColorSource Relay with Wireless Receiver
- Product category: DMX Devices ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC DMX Devices
|
User manual for the ETC ColorSource Relay with Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|

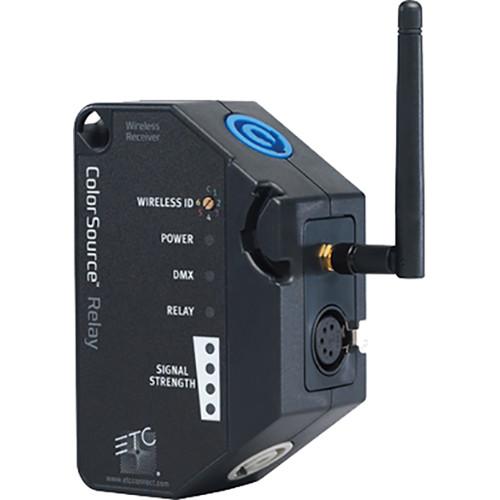

Product description Tired of sweating over your lighting? Gain fingertip control of your setup with the ColorSource Relay with Wireless Receiver from ETC. Used together with the ColorSource wireless transmitter (available separately), this relay centralizes power switching and data distribution, greatly reducing cabling as well as time spent on setting up and managing your DMX-compatible lighting equipment. The transmitter plugs into your DMX console, and sends wireless signals to any relay set to the same ID within a 328' range, line of sight. Each relay delivers the signals to the fixture connected to it, or to a daisy chain of up to 32 fixtures. One transmitter supports up to 32 receivers and up to 16A of power.
With the ColorSource system, your fixtures go on automatically when the receiver's relay detects a DMX signal coming from the transmitter. Automated power sequencing ensures that no two relays turn on at the same time across a system. Five minutes after data is last detected, all connected fixtures go off. Solid and reliable, the transmitter and relay/receiver pair uses spread-spectrum frequency-hopping technology to optimize wireless communication. The ColorSource Relay can be easily mounted to a fixture using the included yoke, or to a pipe or wall using standard mounting hardware (available separately). - Plug-and-play, no programming
- Universal power support via powerCON
- LED indicators show power, relay state, DMX presence, and signal strength
- Zero-cross relay minimizes inrush to connected fixtures at turn-on
- Choice of five wireless IDs selected by thumbwheel
- Software upgrades via USB
- Integrated safety connection
- Convection-cooled, fanless
- 2 dBA omnidirectional antenna
- Power input and output connectors arranged at 45° angle to the pipe for ease of tie-off
- Multiple yoke-fixing hole combinations for flexible mounting
- City Theatrical SHoW DMX compatible
- Ideal for systems with fixtures placed in hard-to-reach places
- Recommended for use in schools, small theaters, events, automated lighting systems, industrial facilities, conference & exhibition centers, meeting rooms, etc.
In the Box ETC ColorSource Relay with Wireless Receiver Yoke Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC ColorSource Relay with Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 4410A1010 Specs | | | Data Output | DMX512-A | | Range | 328' (100 m) | | Number of Receivers | Relay-Receivers per Transmitter: 32 max | | Latency | 7 ms | | Power | Up to 72 mW ETSI broadcast power | | Control | 5-ID thumbwheel | | | | Input Power | Max Breaker Sizing: 20 A
Voltage Range: 90 – 250 V
Frequency Range: 47 – 63 Hz | | Endurance | Resistive: 100,000 @ 16 A, 250 V; 20,000 @ 20A, 250 V
Inductive: 100,000 @ 6 A, 277 V
Electronic: 20,000 @ 12 A, 277 V | | Switching Current | 2-pole; 16 A max | | Sleep Mode | Power Consumption: 0.6 W | | Connectors | 1 x powerCON input
1 x powerCON thru
1 x 5-pin XLR output
1 x USB | | LED Indicators | Power, DMX, Relay Status & Signal Strength | | | | Certification | CE, UL, cUL, FCC, and RoHS | | Wireless Bandwidth | 2.4 GHz using Spread-Spectrum Frequency Hopping (SSFH) | | | | Casing Material | Molded black textured plastic | | Mounting | Multiple yoke-fixing hole combinations | | Cooling | Convection-cooled, fanless | | Safety | Molded safety connection | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 5-95%, non-condensing | | IP Rating | IP20 rated for indoor dry location use | | | | Dimensions | 4.3 x 5.0 x 4.4" (11.0 x 12.7 x 11.1 cm) | | Weight | 0.68 lb (0.31 kg) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 6.7 x 4.3 x 2.4" |
