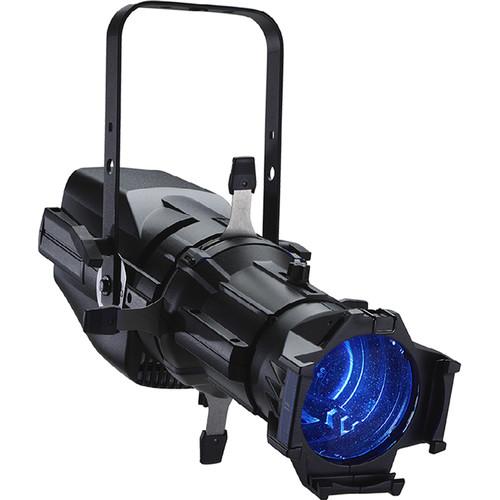

Product description The black ColorSource Spot from ETC is a four-color LED light engine with a four-blade shutter barrel, suitable for many lighting needs. Using a unique mix of red, green, blue and lime LED emitters, the ColorSource spot allows for a range of color and depth inaccessible with standard RGB (red, green, blue) arrays. The engine uses a simple 5-channel DMX profile—intensity, red, green, blue, strobe (IRGBS)—and interprets simple RGB color mixing control, automatically adding lime when needed.
Additional features include a three-button, seven-segment display that provides local control of 12 customizable presets and 5 sequences; a 15-bit virtual dimming engine that provides smooth, high-quality theatrical fades and minimizes color shift during dimming; a slot for glass/stainless steels patterns and soft-focus diffuser; and a wide accessory slot with sliding cover for an optional motorized patterns device or iris. The ColorSource Spot ships with a C-clamp, a hanging yoke, a soft-diffuser yoke in a gobo holder, and a 5' (1.5m) powerCON to Edison power cable.
Note: This engine requires a fixed-field lens tube in order to function (available separately). Note: This engine requires a fixed-field lens tube in order to function (available separately). Features - New RGB-L LED array made of red, green, blue, and lime emitters
- Interprets simple RGB color mixing input, automatically adds lime when needed
- Simple user interface with three-button control and a seven-segment display
- 5-channel DMX profile: intensity, red, green, blue, strobe (IRGBS)
- 12 customizable presets and five sequences
- DMX/RDM input and thru (5-pin XLR)
- Power linking via powerCON connectors
- Tour-ready, aluminum housing
- 15-bit virtual dimming engine
- Includes hanging yoke, C-clamp, soft-focus diffuser in gobo holder, and power cable
In the Box ETC ColorSource Spot - RGB-L LED Light Engine with Shutter Barrel (Black, XLR Connectors) C-Clamp Soft-Focus Diffuser in Gobo Holder PowerCON to Edison Power Cable (4.9') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC ColorSource Spot - RGB-L LED Light Engine with Shutter Barrel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC ColorSource Spot Specs | Light Source | 60 x Luxeon Rebel LED emitters (RGB-L: red, green, blue, lime) | | Life Expectancy | 20,000-hour LED life (20,000 hours to 70% intensity) | | Display/Controls | 3-button, 7-segment display
12 x customizable presets (local control)
5 x sequences (local control) | | Protocols | DMX512, RDM | | DMX Channel Modes | 1 x Mode: 5 channels
DMX Profile: intensity, red, green, blue, strobe (IRGBS) | | DMX Connectors | 1 x XLR 5-pin DMX input
1 x XLR 5-pin DMX thru | | Power | 100 to 240 VAC, 50/60 Hz (universal) | | Power Connectors | 1 x powerCON input
1 x powerCON output | | Power Linking | 10 x units (per circuit) | | Power Consumption | 100 VAC (RGB Full): 148 W, 1.48 A
120 VAC (RGB Full): 147 W, 1.24 A
230 VAC (RGB Full): 141 W, 0.65 A | | Inrush Current | 120 VAC: 28 A
240 VAC: 46 A | | Ambient Operating Temperature | 32° to 104°F (0° to 40°C) | | Cooling Fan | Yes | | IP Rating | IP20 - indoor use | | UL Listing | UL1573 | | Housing | Die-cast, all-metal | | Dimensions | 23.33 x 13.36 x 26.44" (59.3 x 33.9 x 67.2 cm) | | Weight | 17 lb (7.7 kg) | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 27.9 x 12.8 x 12.4" |
