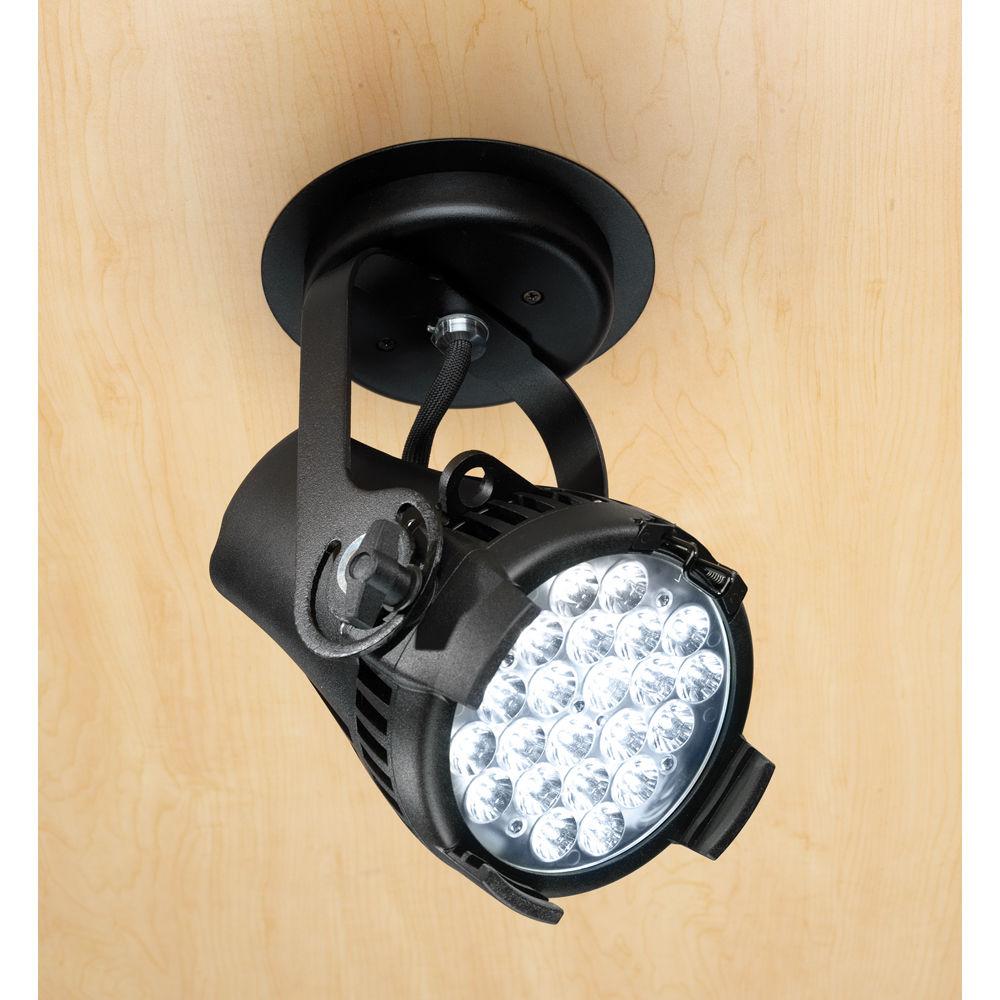

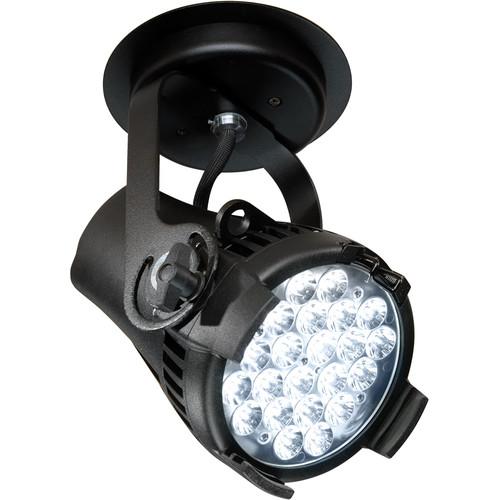

Product description The black Canopy Mount Desire D22 Studio Daylight Wash Fixture from ETC contains 22 Luxeon Rebel 5600K LEDs for high-intensity, non-variable, cool-white output. A 15-bit virtual dimming engine provides smooth, high-quality theatrical fades, minimizing color shift during dimming. The all-metal die cast body has built-in filter slots that allow you to change the D22's native 21-degree field angle from very narrow to extra wide. The fan-free, convection cooling design is especially valuable in noise-sensitive environments. Additionally, the D22 is ready for worldwide use, thanks to its multi-voltage power supply. - D22 LED Array
- D22 Studio Daylight: Contains twenty-two 5600K LEDs for high-intensity, non-variable, cool-white output
- D22 Mounting Configuration
-

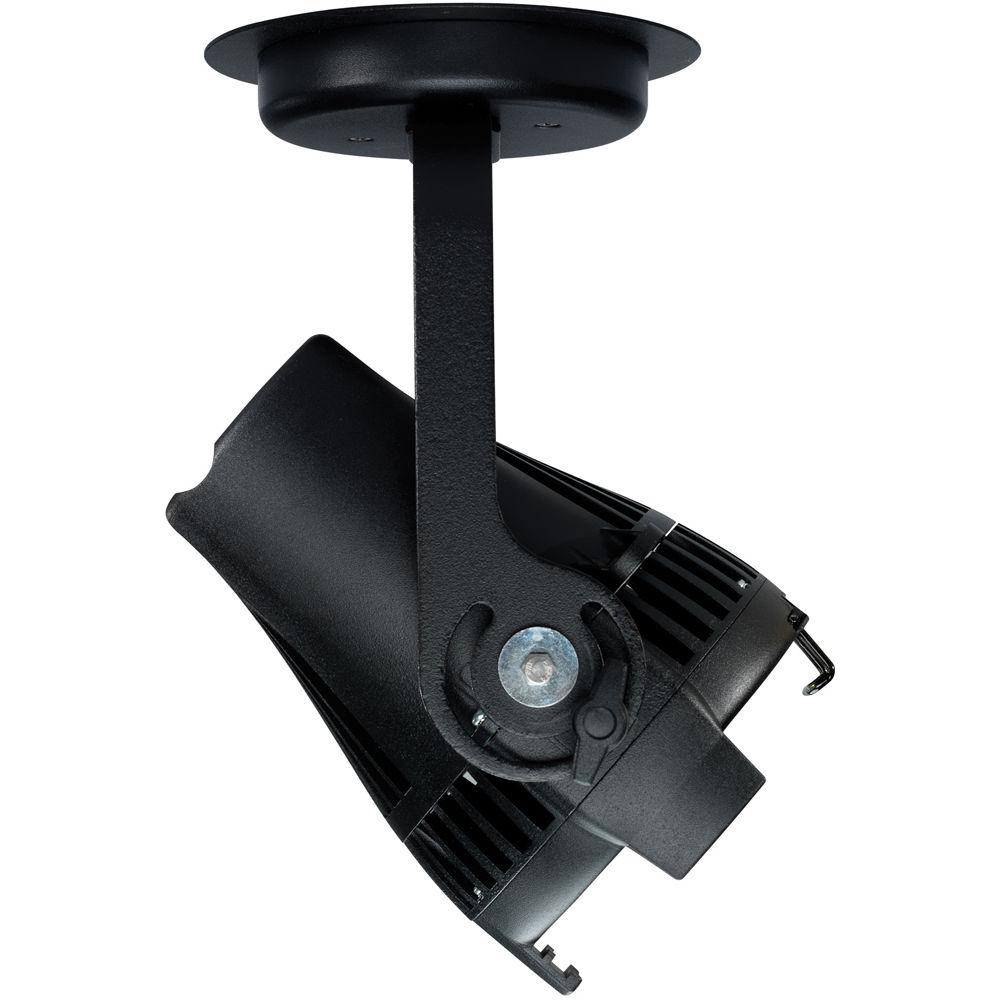

- D22 Install Canopy: Standard yoke-mount and canopy hardware; power lead with bare ends; and a permanent single DMX in/through cable
- General
-
- ETL listed general purpose lighting
- DMX in/through for easy setup (no DMX through on D22 Track)

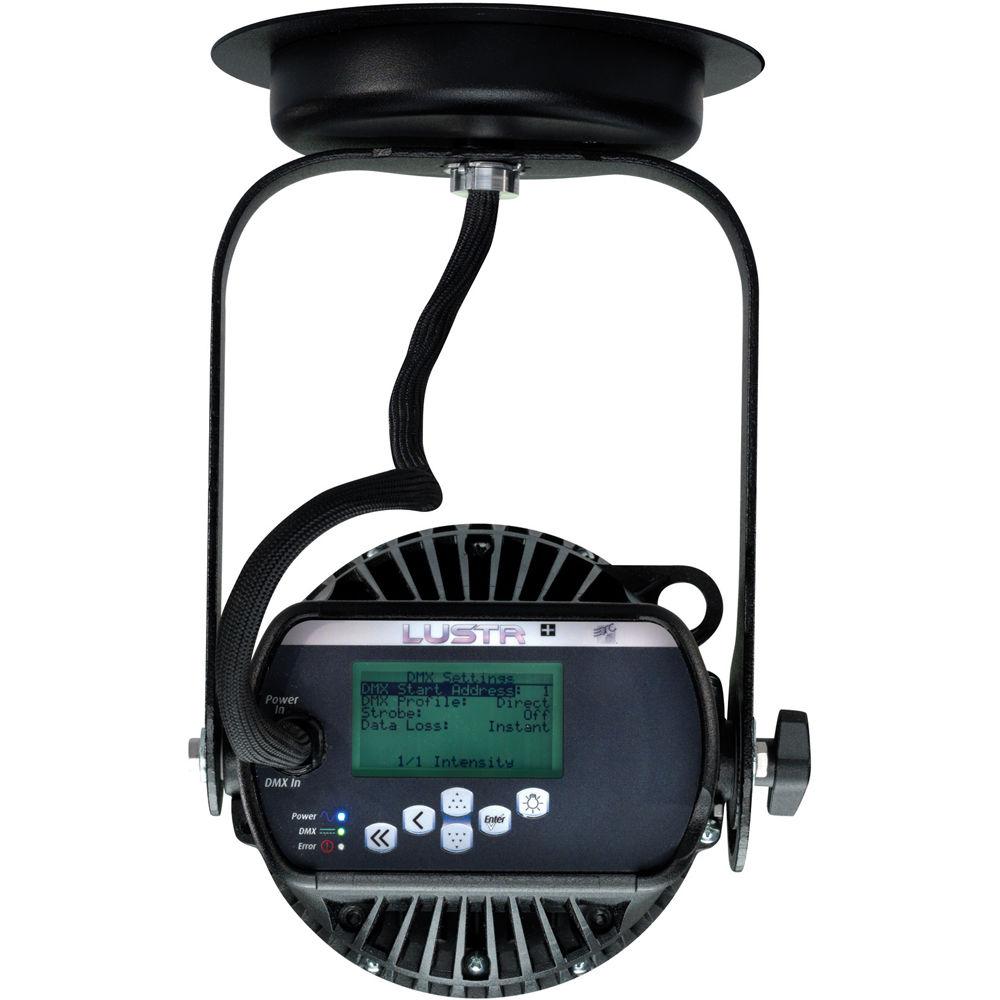

- User-friendly control interface with multiple modes and fixture settings
- Permanent power input cable connected
- Physical
-
- Rugged die cast all-metal housing
- Easy access slots for secondary lenses and 5.5" accessories
- Available in black (standard), white, silver (optional), or custom colors
- IP20 rated
- Electrical
-
- Universal power input of 100 to 240 VAC 50/60 Hz
- Twenty fixtures total per circuit when used with R20 Relay Module or Unison Echo Relay Panel. Consult breaker trip curves when used with other equipment
- Requires power from a non-dim source
- Inrush @120V: 17A; @ 240V: 25A
- LED
-
- LED life of 50,000 hours at 70% intensity
- Twenty-two Luxeon Rebel LED emitters
- Optical
-
- Primary field angle of 21°
- Secondary lenses available for multiple beam spread options
- Control
-
- Multiple control options, including RGB, strobe, and console-free Master/Slave mode
- 15-bit Virtual dimming engine provides smooth, high-quality theatrical fades, and minimizes color shift during dimming
- RDM functionality for address and setting changes
- Thermal
-
- Ambient operating temperature of 32° to 104°F(0° to 40°C)
- Active electronic thermal management for droop-free operation
- Noiseless, fan-free convection cooling for acoustically sensitive installations
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature, requiring free flow of air around fixture housing
In the Box ETC Desire D22 Studio Daylight Wash Fixture (Black, Canopy Mount) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Desire D22 Studio Daylight Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D22 Specs | Material | All-metal die cast housing | | Dimming | Yes | | Field Diameter | 21° | | Photometrics | 462 fc / 4,968 Lux @ 10' (3 m) with field diameter of 7.3' (2.2 m)
51.3 fc / 552 Lux @ 30' (9.1 m) with field diameter of 14.5' (4.4 m)
462 fc / 4,968 Lux @ 10' (3 m) with field diameter of 4.8' (1.5 m) | | Cooling | Convection | | Voltage | 100 to 240 VAC, 50/60 Hz | | DMX | Yes | | Mount | Canopy | | Thermal | Ambient Operating Temperature: 32°F to 104°F (0° to 40°C)
Fixture is designed for continuous operation up to 104°F (40°C) | | Dimensions | 8.2 x 7.7 x 10.4" (20 x 196 x 264 mm) | | Weight | 6.9 lb (3.1 kg) |
