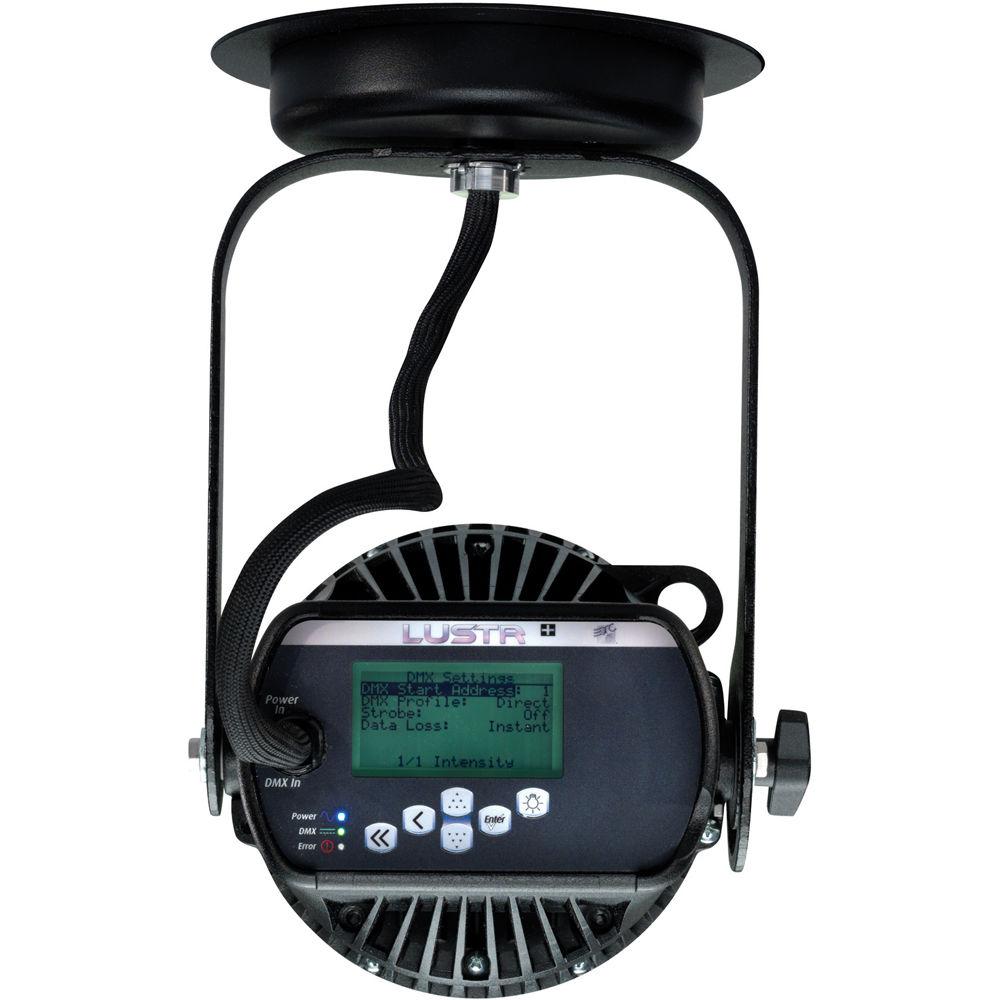

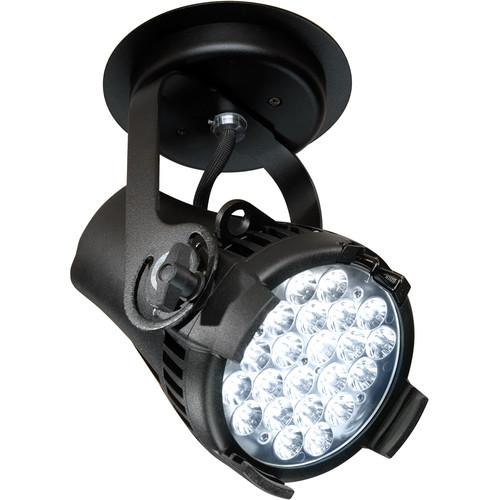

Product description The white, Canopy Mount Desire D22 Studio HD Wash Fixture from ETC combines warm and cool LEDs with specifically chosen colors from the Selador x7 Color System to fill in the white spectral gaps, resulting in vivid variable color. A 15-bit virtual dimming engine provides smooth, high-quality theatrical fades, minimizing color shift during dimming. The all-metal die cast body has built-in filter slots that allow you to change the D22's native 21-degree field angle from very narrow to extra wide. The fan-free, convection cooling design is especially valuable in noise-sensitive environments; and thanks to its multi-voltage power supply, the D22 is ready for worldwide use. - General
-
- ETL-listed general purpose lighting
- DMX In/Thru for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Permanent power input cable connected
- D22 Mounting Configuration
-
- Standard yoke-mount and canopy hardware, power lead with bare ends, and a permanent, single DMX In/Thru cable
- Physical
-
- Rugged die cast all-metal housing
- Easy access slots for secondary lenses and 5.5" accessories
- Available in black (standard), white, silver (optional), or custom colors
- IP20 rating
- Electrical
-
- 100 to 240 VAC 50/60 Hz Universal power input
- Twenty fixtures total per circuit when used with R20 Relay Module or Unison Echo Relay Panel (please consult breaker trip curves when used with other equipment)
- Requires power from a non-dim source
- Inrush @120V: 17A, @ 240V: 25A
- LED
-
- 50,000-Hour LED life (50,000 hours at 70% intensity)
- Twenty-two Luxeon Rebel variable white-light LED emitters
- Color
- Combines warm white and cool white LEDs for variable-color-temperature mixing. Added to this are carefully chosen colors from the Selador x7 Color System to fill in the white LED spectral gaps, providing the richest variable-white light possible in an LED fixture.
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Broad-spectrum color interacts seamlessly with conventional sources
- Exclusive, optional red-shift function emulates tungsten dimming performance
- Optical
-
- Primary field angle of 21°
- Secondary lenses available for multiple beam spread options
- Control Options
- User settings on D22 fixtures allow multiple operational modes and settings for either console operation via DMX protocol or stand-alone operation. The expanded LCD display provides easy navigation to all possible settings and options. Some of them are:
- Multiple DMX choices, ranging from a simple RGB profile (which effectively controls all seven LED colors via three channels) to nine-channel "direct" color and intensity control
- Multiple dimming curve options
- Preset colors and sequences for stand-alone (no console required) operation
- White-Point Selection: White-light and color behavior based on a specific color-temperature white light (i.e. 3200K, 5600K, etc.)
- Loss of Data Behavior Options: Instant off, hold last look for two minutes, etc.
- Output Modes: Three output options that offer the user a choice between maximum output and maximum consistency
- Thermal
-
- Ambient operating temperature of 32° to 104°F (0° to 40°C)
- Active electronic thermal management for droop-free operation
- Noiseless, fan-free convection cooling for acoustically sensitive installations
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free-flow of air around fixture housing
In the Box ETC Desire D22 Studio HD Wash Fixture (White, Canopy Mount) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Desire D22 Studio HD Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D22 Specs | Material | All-metal, die cast housing | | Dimming | Yes | | Field Diameter | 21° | | Photometrics | With a field diameter of 4' (1.2 m), 322 fc / 3,462 lux @ 10' (3.0 m)
With a field diameter of 6' (1.8 m), 143 fc / 1,539 lux @ 15' (4.6 m)
With a field diameter of 12' (3.7 m), 35.7 fc / 385 lux @ 30' (9.1 m) | | Cooling | Convection | | Voltage | 100 - 240 VAC, 50/60 Hz | | DMX | Yes | | Mount | Canopy | | IP Rating | IP20 | | Thermal | Ambient operating temperature of 32° to 104°F (0° to 40°C)
Fixture is designed for continuous operation up to 104°F (40°C) | | Dimensions | 8.2 x 7.7 x 10.4" (208 x 196 x 264 mm) | | Weight | 6.9 lb (3.1 kg) |
