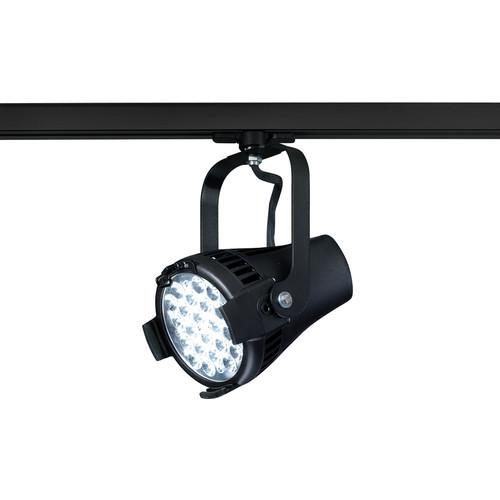

Product description The black, Track Mount Desire D22 Studio Lustr+ Wash Fixture from ETC uses an exclusive x7 Color System array of twenty-two LED emitters to achieve accurate color rendering across a broad spectrum, with high intensity and variable color output. A 15-bit virtual dimming engine provides smooth, high-quality theatrical fades, minimizing color shift during dimming. The all-metal die cast body has built-in filter slots that allow you to change the D22's native 21-degree field angle from very narrow to extra wide. The fan-free, convection cooling design is especially valuable in noise-sensitive environments; and thanks to its multi-voltage power supply, the D22 is ready for worldwide use. - D22 LED Array
- Optimized array with six colors plus high-intensity white LEDs to create an ideal wash fixture for full-range color
- D22 Mounting Configuration
-
- Track Yoke: Track adapter and a single, permanent cable
- General
-
- ETL-listed general purpose lighting
- User-friendly control interface with multiple modes and fixture settings
- Permanent power input cable connected
- Physical
-
- Rugged die cast all-metal housing
- Easy access slots for secondary lenses and 5.5" accessories
- Available in black (standard), white, silver (optional), or custom colors
- IP40 rating
- Electrical
-
- 100 to 240 VAC 50/60 Hz Universal power input
- twenty fixtures total per circuit when used with R20 Relay Module or Unison Echo Relay Panel (consult breaker trip curves when used with other equipment)
- Requires power from a non-dim source
- Inrush @120V: 17A, @ 240V: 25A
- LED
-
- 50,000-Hour LED life (50,000 hours at 70% intensity)
- Twenty-two Luxeon Rebel LED emitters
- Color
-
- Exclusive x7 Color System seven-color LED array
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Broad-spectrum color interacts seamlessly with conventional sources
- Exclusive, optional red-shift function emulates tungsten dimming performance
- Optical
-
- Primary field angle of 21°
- Secondary lenses available for multiple beam spread options
- Control
- User settings on D22 fixtures allow multiple operational modes and settings for either console operation via DMX protocol or stand-alone operation. The expanded LCD display provides easy navigation to all possible settings and options. Some of them are:
- Multiple DMX choices, ranging from a simple RGB profile (which effectively controls all seven LED colors via three channels) to nine-channel "direct" color and intensity control
- Multiple dimming curve options
- Preset colors and sequences for stand-alone (no console required) operation
- White-Point Selection: White-light and color behavior based on a specific color-temperature white light (i.e. 3200K, 5600K, etc.)
- Loss of Data Behavior Options: Instant off, hold last look for two minutes, etc.
- Output Modes: Three output options that offer the user a choice between maximum output and maximum consistency
- Thermal
-
- Ambient operating temperature of 32° to 104°F(0° to 40°C)
- Active electronic thermal management for droop-free operation
- Noiseless, fan-free convection cooling for acoustically sensitive installations
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free-flow of air around fixture housing
In the Box ETC Desire D22 Studio Lustr+ Wash Fixture (Black, Track Mount) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Desire D22 Studio Lustr Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D22 Specs | Material | All-metal, die cast housing | | Dimming | Yes | | Field Diameter | 21° | | Photometrics | With a field diameter of 3.7' (1.1 m), 437 fc / 4,704 lux @ 10' (3.0 m)
With a field diameter of 5.6' (1.5 m), 194 fc / 2,091 lux @ 15' (4.6 m)
With a field diameter of 14.5' (3.4 m), 48.6 fc / 523 lux @ 30' (9.1 m) | | Color Accuracy | At 3200K:
CRI: 86 / CQS: 88 / Color Fidelity: 88
At 5600K:
CRI: 93 / CQS: 92 / Color Fidelity: 90 | | Cooling | Convection | | Voltage | 100 - 240 VAC, 50/60 Hz | | DMX | Yes | | Mount | Track | | Thermal | Ambient operating temperature of 32° to 104°F (0° to 40°C)
Fixture is designed for continuous operation up to 104°F (40°C) | | Dimensions | 8.2 x 7.7 x 10.4" (208 x 196 x 264 mm) | | Weight | 6.9 lb (3.1 kg) | | | | Box Dimensions (LxWxH) | 15.5 x 9.8 x 8.5" |
