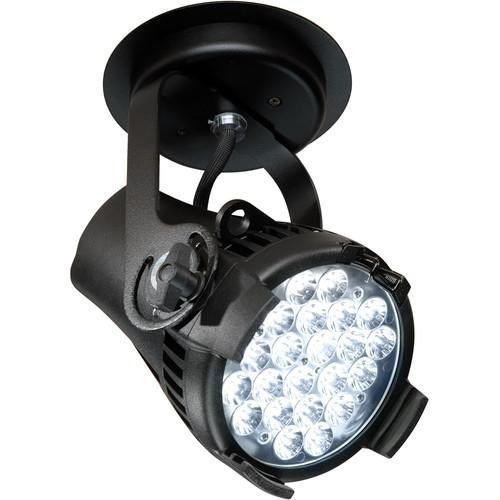

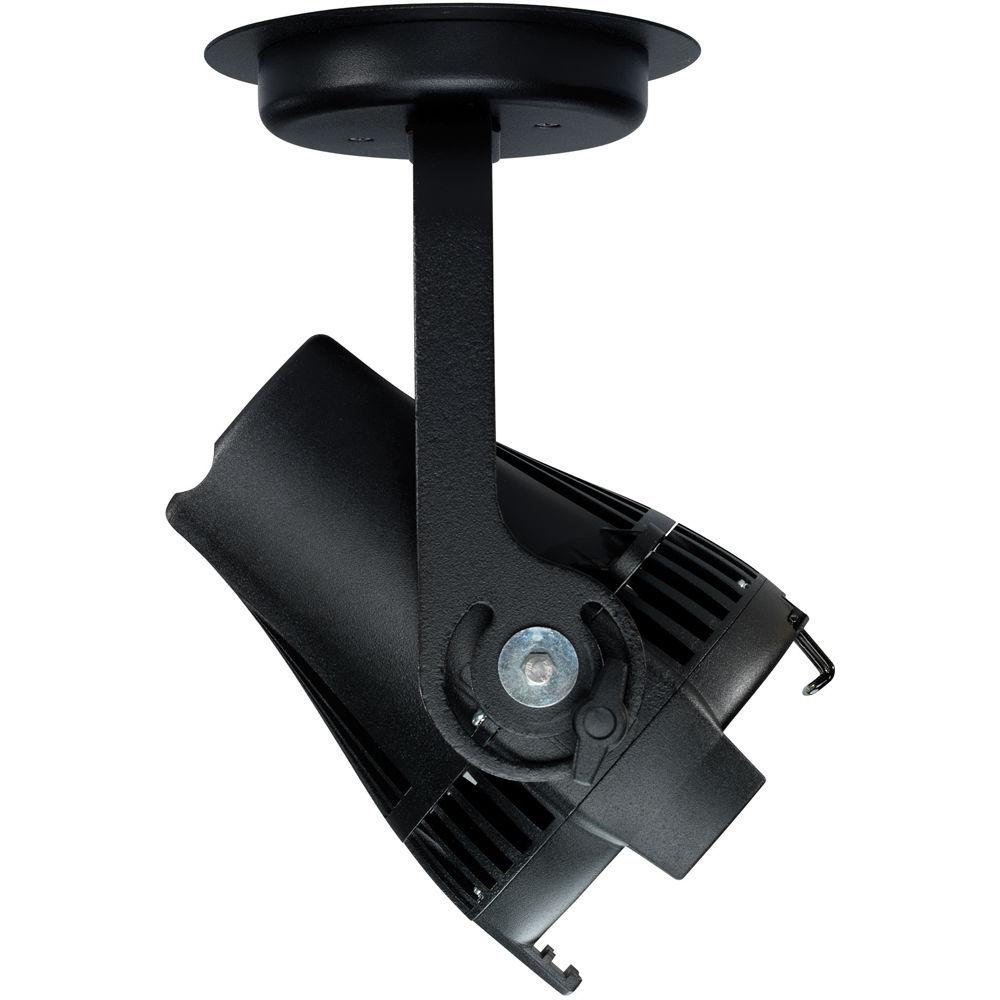

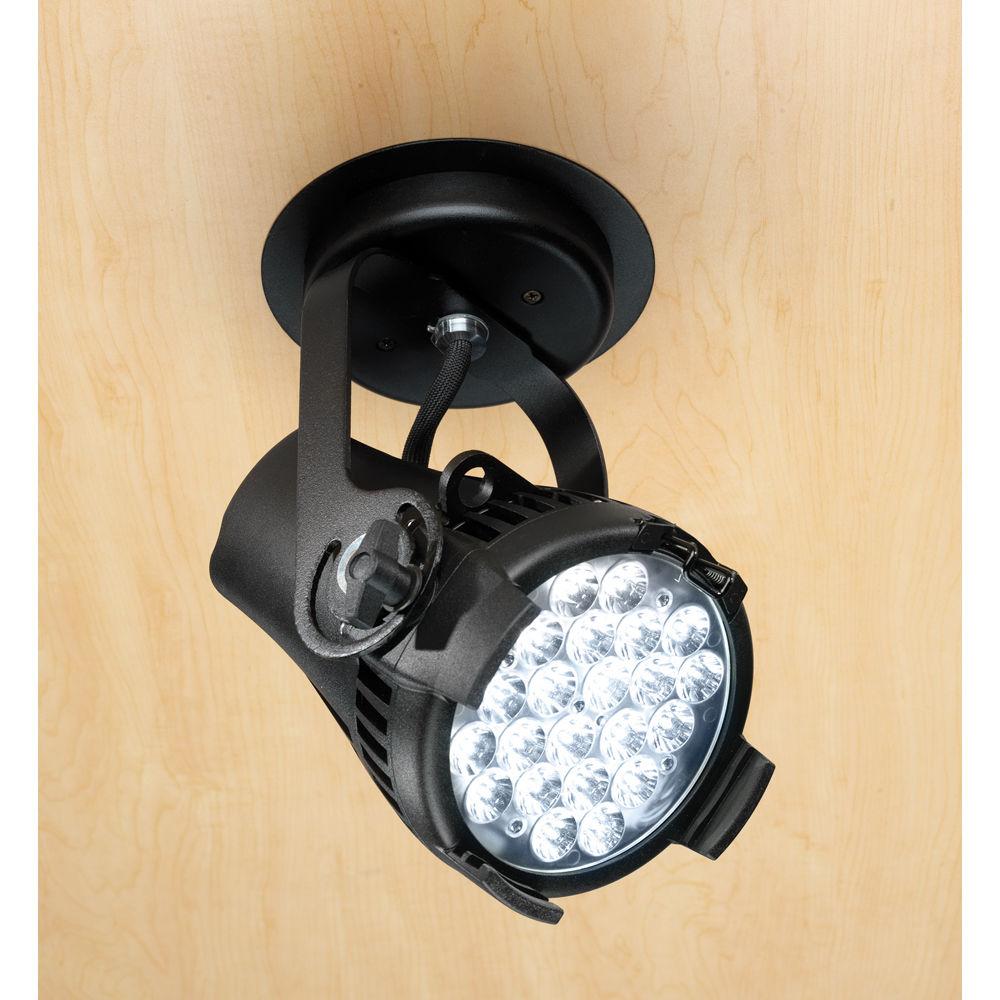

Product description The black, Canopy Mount Desire D22 Studio Tungsten Wash Fixture from ETC uses twenty-two 3000K LEDs for high-intensity, non-variable warm-white output. A 15-bit virtual dimming engine provides smooth, high-quality theatrical fades, minimizing color shift during dimming. The all-metal die cast body has built-in filter slots that allow you to change the D22's native 21-degree field angle from very narrow to extra wide. The fan-free, convection cooling design is especially valuable in noise-sensitive environments; and thanks to its multi-voltage power supply, the D22 is ready for worldwide use. - General
-
- ETL-listed general purpose lighting
- DMX In/Thru for easy setup

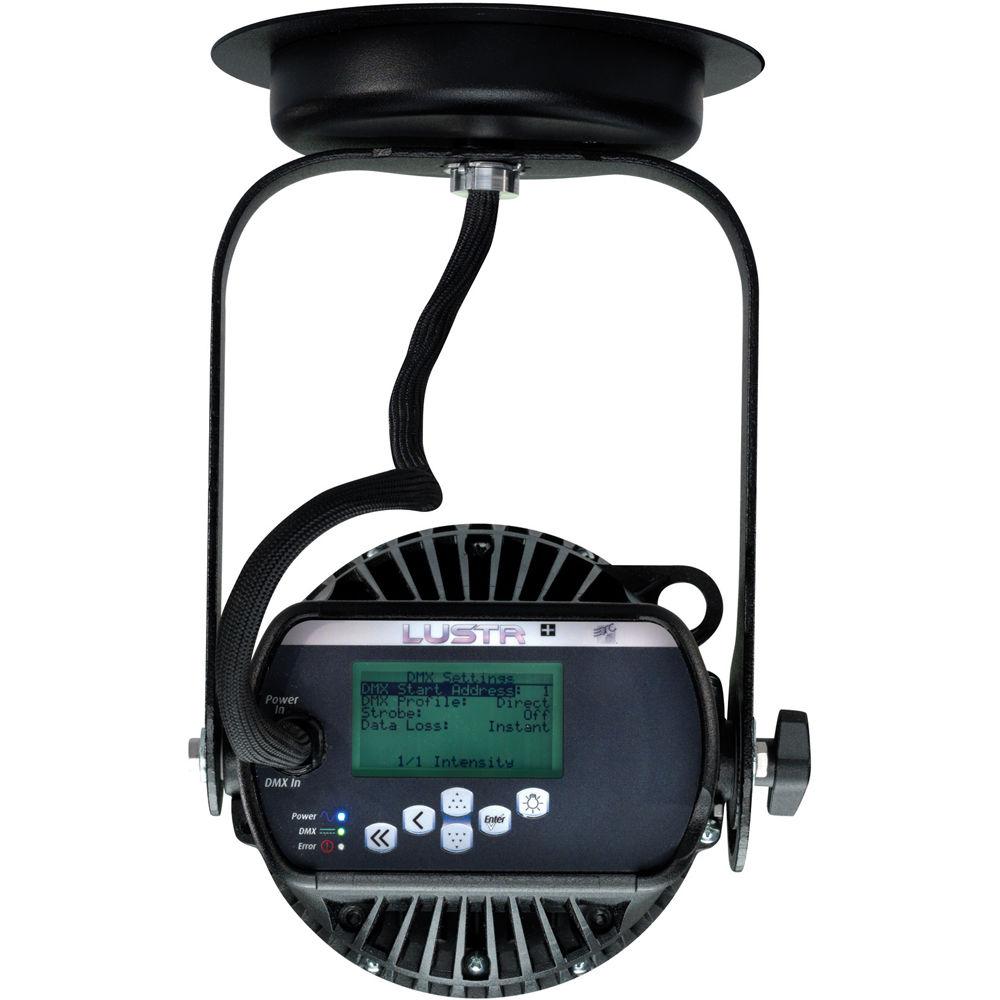

- User-friendly control interface with multiple modes and fixture settings
- Permanent power input cable connected
- D22 Mounting Configuration
-
- Standard yoke mount and canopy hardware, power lead with bare ends, and a permanent, single DMX In/Thru cable
- Physical
-
- Rugged die cast all-metal housing
- Easy access slots for secondary lenses and 5.5" accessories
- Available in black (standard), white, silver (optional), or custom colors
- IP20 rating
- Electrical
-
- 100 to 240 VAC 50/60 Hz Universal power input
- Twenty fixtures total per circuit when used with R20 Relay Module or Unison Echo Relay Panel (consult breaker trip curves when used with other equipment)
- Requires power from a non-dim source
- Inrush @120V: 17A, @ 240V: 25A
- LED
-
- 50,000-Hour LED life (50,000 hours at 70% intensity)
- Twenty-two Luxeon Rebel white-light LED emitters
- Color
- Contains twenty-two 3000K LEDs for high-intensity, non-variable warm-white output
- Optical
-
- Primary field angle of 21°
- Secondary lenses available for multiple beam spread options
- Control
-
- Multiple control options, including strobe, and console-free Master/Slave mode
- 15-Bit virtual dimming engine provides smooth, high-quality theatrical fades, and minimizes color shift during dimming
- RDM functionality for address and setting changes
- Thermal
-
- Ambient operating temperature of 32° to 104°F (0° to 40°C)
- Active electronic thermal management for droop-free operation
- Noiseless, fan-free convection cooling for acoustically sensitive installations
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free-flow of air around fixture housing
In the Box ETC Desire D22 Studio Tungsten Wash Fixture (Black, Canopy Mount) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Desire D22 Studio Tungsten Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D22 Specs | Material | All-metal, die cast housing | | Dimming | Yes | | Field Diameter | 21° | | Photometrics | With a field diameter of 4.5' (1.4 m), 395 fc / 4,252 lux @ 10' (3.0 m)
With a field diameter of 6.8' (2.1 m), 176 fc / 1,890 lux @ 15' (4.6 m)
With a field diameter of 13.5' (4.1 m), 43.9 fc / 472 lux @ 30' (9.1 m) | | Cooling | Convection | | Voltage | 100 - 240 VAC, 50/60 Hz | | DMX | Yes | | Mount | Canopy | | IP Rating | IP20 | | Thermal | Ambient operating temperature of 32° to 104°F (0° to 40°C)
Fixture is designed for continuous operation up to 104°F (40°C) | | Dimensions | 8.2 x 7.7 x 10.4" (208 x 196 x 264 mm) | | Weight | 6.9 lb (3.1 kg) |
