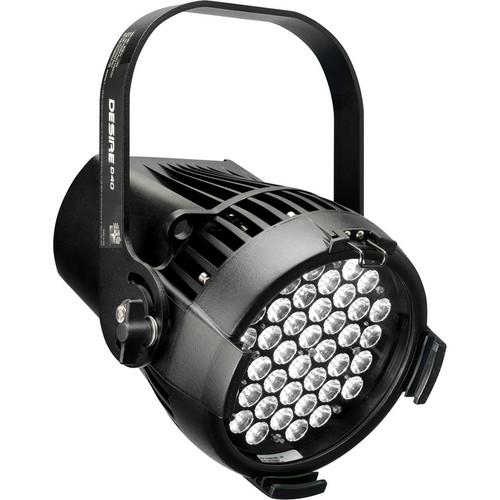

User Manual for ETC Desire D40 Studio Daylight LED Fixture with Bare Power Lead Click to enlarge the picture
Contents of the user manual for the ETC Desire D40 Studio Daylight LED
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Desire D40 Studio Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The black D40 Studio Daylight LED Fixture with Bare Power Lead from ETC uses efficient white LEDs to create high volumes of daylight-balanced light with far less energy than a traditional halogen or tungsten light would use. This luminaire produces brilliant white light that naturally illuminates the talent – on screen or on stage via its 40 Luxeon Rebel ES LED emitters. The 5,600K light from this luminaire mimics HMI daylight fixtures, while using a mere 110W of power. It is suitable for indoor broadcast, theater, architectural uses, and for use in houses of worship – where color temperature and skin-tone rendering are critical. The D40 Studio Daylight LED Fixture can be configured to operate under console control for studio systems or in stand-alone settings for location lighting when a console isn't available. The user interface enables easy configuration and specific features for video and film professionals. Note: All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Ambient temperatures and orientation affect thermal conditions. Based on the LED manufacturer's B50 l70 specification, a Selador luminaire will achieve approx. 70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels, which may eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs. - Contains 40 5,600 K LEDs for high-intensity, non-variable cool-white output
- IP20 rated for indoor use
- Rugged, die-cast all-metal housing
- User-friendly control interface with multiple modes and fixture settings
- Easy access slots for secondary lenses and standard 7.5" (190mm) PAR accessories
- DMX512 in and thru via 5-pin XLR connectors
- Up to 10 fixtures may be linked via power in / thru connectors per 15A circuit using 1mm² cables as supplied
- Requires power from a non-dim source
- 50,000 hour LED life (50,000 hours to 70% intensity)
- Uses rebel ES white light emitters for higher output
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades
- RDM functionality for address and setting changes
- Active electronic thermal management for droop-free operation
- No-noise, fan-free convection cooling for use in acoustically sensitive installations
- Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free airflow around fixture housing
- Additional secondary lenses available for multiple beam spread options
- Studio control mode allows fixtures to be operated with no DMX console required
In the Box ETC Desire D40 Studio Daylight LED Fixture with Bare Power Lead (Black) Bare End Power Lead Hanging Yoke Very Narrow Secondary Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Desire D40 Studio Daylight LED Fixture with Bare Power Lead in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D40 Studio Daylight Specs | Rating | D40 Studio Daylight at 5600 K:
CRI: 71
CQS: 70
Color Fidelity: 69
Duv: 0.001 A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint. | | Mode | Boost-Cold:
Degree: 22°
Candela: 132,140
Field Lumens: 5,378
Beam Lumens: 2,582
Lumens/W: 52.3
Regulated:
Degree: 22°
Candela: 126,140
Field Lumens: 4,953
Beam Lumens: 2,352
Lumens/W: 56.3 | | Illuminance | 13,530 lux (1,257 fc) @ 10.00' (3.04 m) throw distance and 3.90' (1.18 m) field diameter
6,013 lux (559 fc) @ 15.00' (4.57 m) throw distance & 5.80' (1.76 m) field diameter
3,389 lux (314 fc) @ 20.00' (6.09 m) throw distance & 7.8' (2.37 m) field diameter
2,165 lux (201 fc) @ 25.00' (7.62 m) throw distance & 9.70' (2.95 m) field diameter
10.76 lux (1.00 fc) @ 354.00' (107.89 m) throw distance | | Power Input | 100 to 240 VAC, 50/60 Hz, universal power input | | Maximum Power Consumption | 110 W, 1.0 / 0.5 A, 120/240 V at full intensity | | Field Angle | 17° (primary) | | Ambient Operating Temperature | -4 to 104°F (-20 to 40°C) | | Dimensions (W x H x D) | Overall: 10.6 x 19.3 x 10.4" (269.2 x 490.2 x 264.1 mm) | | Weight | 14.1 lb (6.4 kg) | | | | Package Weight | 20.15 lb | | Box Dimensions (LxWxH) | 15.2 x 13.3 x 12.5" |
