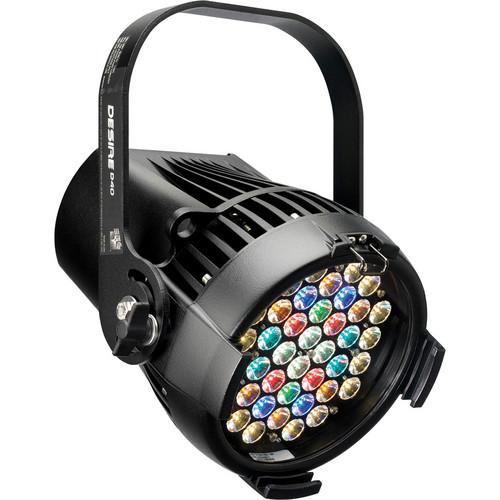

User Manual for ETC Desire D40 Studio HD LED Fixture with Edison Connector Click to enlarge the picture
Contents of the user manual for the ETC Desire D40 Studio HD LED
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Desire D40 Studio HD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The Black D40 Studio HD LED Fixture with Edison Connector from ETC uses the patented x7 Color System, mixing 5 colors with 2 different white LEDs to create brilliant HD white light with high color-rendering qualities. Desire Studio HD luminaire produces brilliant white light that naturally illuminates talent – on screen or on stage. It comes with 40 LED emitters.The D40 Studio HD array blends warm-white and cool-white LEDs with a touch of x7 color to give you variable color-temperatures mixing with refined white-point control and precise color rendering. The 5 colored emitters fill in the white LED spectral gaps to give you rich white light to beautifully illuminate skin tones, sets, and clothing – in person or on camera. The Studio HD luminaire offers a range of color temperatures from 800 to 20,000 K and allows you to vary lighting tint with easy green and magenta tint-control. It is suitable for indoor broadcast, theater, or architectural uses, and for use in houses of worship – where color temperature and skin-tone rendering are critical. The D40 Studio HD LED Fixture can be configured to operate under console control for studio systems or in stand-alone settings for location lighting when a console isn't available. The user interface enables easy configuration and specific features for video and film professionals. Note: All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Ambient temperatures and orientation affect thermal conditions. Based on the LED manufacturer's B50 l70 specification, a Selador luminaire will achieve approx. 70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels, which may eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs. - Sophisticated, high-definition white LED lighting
- Studio HD combines warm white and cool white LEDs for variable color temperature mixing
- Five carefully chosen LED colors from the Selador x7 Color System to fill in the white LED spectral gaps
- IP20 rated for indoor use
- User-friendly control interface with multiple modes and fixture settings
- DMX512 in and thru via 5-pin XLR connectors
- Rugged, die-cast all-metal housing
- Easy access slots for secondary lenses and standard 7.5" (190mm) PAR accessories
- Up to 10 fixtures may be linked via power in / thru connectors per 15A circuit using 1mm² cables as supplied
- Requires power from a non-dim source
- 50,000 hour LED life (50,000 hours to 70% intensity)
- Multiple control options including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades
- Active electronic thermal management for droop-free operation
- No-noise, fan-free convection cooling for use in acoustically sensitive installations
- Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free airflow around fixture housing
- Additional secondary lenses available for multiple beam spread options
- Studio control mode allows fixtures to be operated with no DMX console required
In the Box ETC Desire D40 Studio HD LED Fixture with Edison Connector (Black) Parallel-Blade U-Ground Connector (Edison) Hanging Yoke Very Narrow Secondary Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Desire D40 Studio HD LED Fixture with Edison Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D40 Studio HD Specs | Rating | D40 Studio HD at 5600 K:
CRI: 92
CQS: 94
Color Fidelity: 94
Duv: 0.000
D40 Studio HD at 3200 K:
CRI: 89
CQS: 90
Color Fidelity: 91
Duv: 0.000 A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint. | | Mode | Boost-Cold:
Degree: 17°
Candela: 132,120
Field Lumens: 2,983
Beam Lumens: 1,347
Lumens/W: 30.9
Regulated:
Degree: 17°
Candela: 124,663
Field Lumens: 2,794
Beam Lumens: 1,253
Lumens/W: 30.9 | | Illuminance | 13,121 lux (1,219 fc) @ 10.00' (3.04 m) throw distance and 3.10' (0.94 m) field diameter
5,832 lux (542 fc)@ 15.10' (4.60 m) throw distance & 4.70' (1.43 m) field diameter
3,280 lux (305 fc) @ 20.00' (6.09 m) throw distance & 6.30' (1.92 m) field diameter
2,099 lux (195 fc)@ 25.00' (7.62 m) throw distance & 7.80' (2.37 m) field diameter
10.76 lux (1.00 fc)@ 349.00' (106.37 m) throw distance | | Power Input | 100 to 240 VAC, 50/60 Hz, universal power input | | Maximum Power Consumption | 110 W, 1.0 / 0.5 A, 120/240 V at full intensity | | Field Angle | 17° (primary) | | Ambient Operating Temperature | -4 to 104°F (-20 to 40°C) | | Dimensions (W x H x D) | Overall: 10.6 x 19.3 x 10.4" (269.2 x 490.2 x 264.1 mm) | | Weight | 14.1 lb (6.4 kg) | | | | Package Weight | 19.45 lb | | Box Dimensions (LxWxH) | 17.244 x 15.197 x 13.307" |
