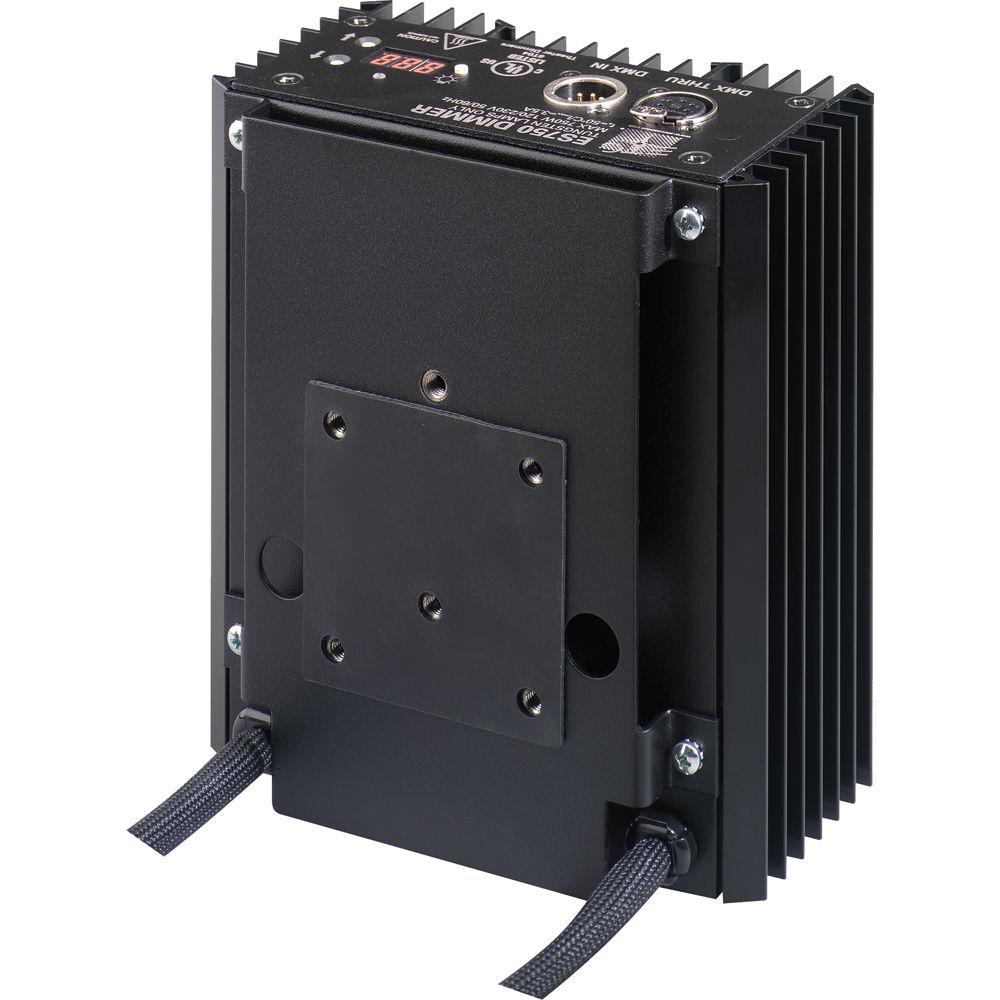

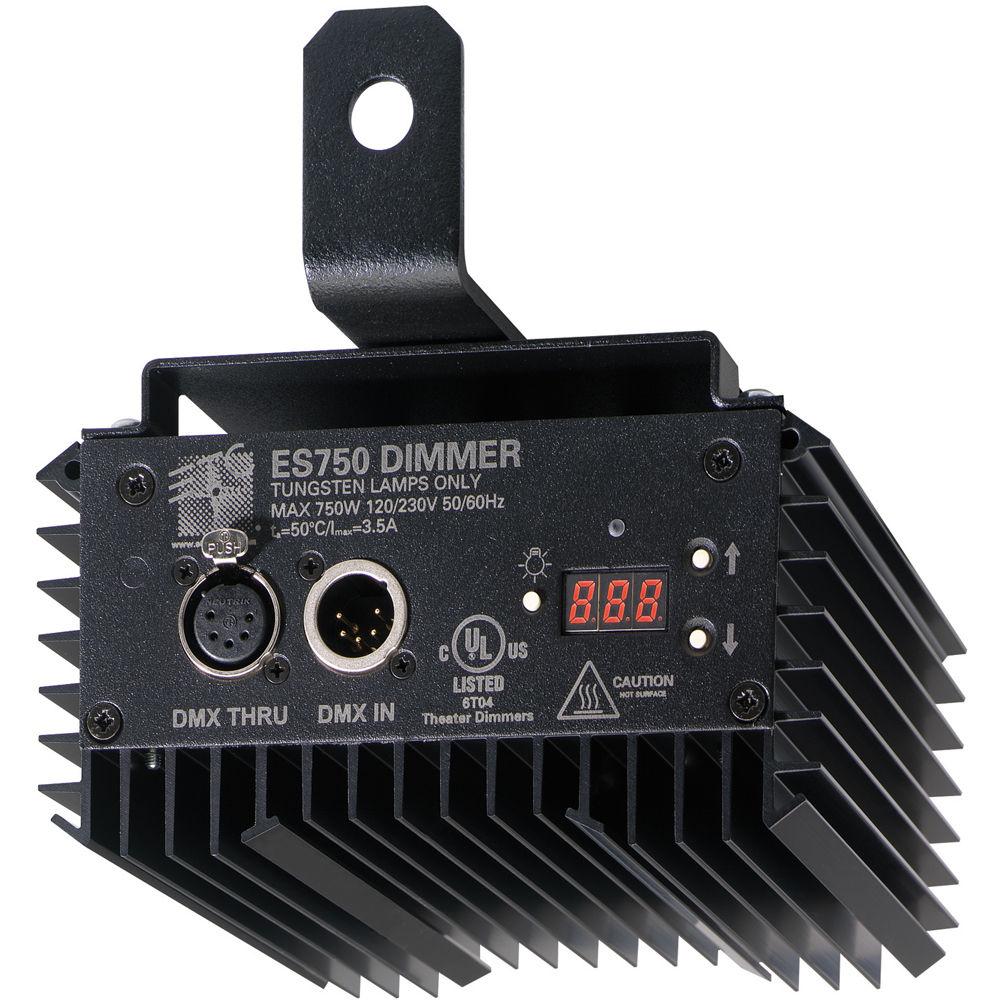

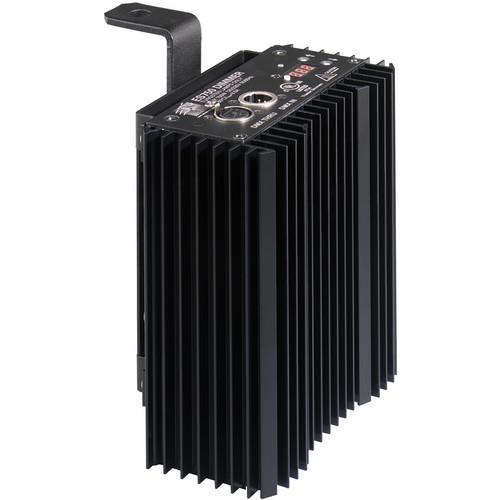

Product description The black Distributed Dimming Series ES750 Electronic Silent Dimmer from ETC comes with a plug that allows it to attach to any fixture up to 750W for onboard distributed power control. It comes equipped with a power input and output to a Stage-Pin connector, and can serve as a remote dimmer for any application.
The ES750 is designed with ETC’s advanced ES (Electronic Silent) power-control technology for completely noise-free operation. Working without fans or filament buzz, the dimmer produces noise levels of 0 dBA at 1m, thereby making it a suitable power-control solution for acoustically sensitive venues. You can outfit your entire rig with ES750 dimmers without interrupting the sound on stage.
Using the ES technology and a convection-cooled design, this high-performance dimmer can be used with any 750W or less tungsten fixture. By directly taking DMX control signals, this self-dimming tungsten fixture can reside alongside LEDs and moving lights, thereby allowing system designs to focus on switched power and data distribution instead of centralized dimming systems. Attaching an ES750 dimmer to your fixtures brings your rig the brightness and quality of light that tungsten can provide, while working seamlessly alongside your LED luminaires. Run both fixture types at the same time by sending simple switched power to all of your lighting positions. Control ES750 dimmers, LEDs, and moving lights with your existing data network. The ES750 features onboard controls for local operation and RDM for remote setup. It also offers the ability to set DMX addresses, change curves, and receive status information. With the ES750 dimmer, your venue is more flexible with an infrastructure that can adapt to new requirements and layouts. - Applications
- Applications requiring distributed dimming and position flexibility:
- Theaters
- Hybrid incandescent LED and discharge systems
- Industrial productions
- Rentals
- Conference and exhibition centers
- Multi-use venues such as schools and meeting rooms - ES Dimming Technology
- Produces no lamp noise (exceeds all rise time specs)
- Electronics sound-pressure level less than 0 dBA at 1m
- Mount Brackets
- Yoke-mount and pipe-mount brackets included, direct mounting on a fixture yoke or to a pipe in multiple orientations to accommodate maximum flexibility (C-Clamps sold separately)
- Local Operation
- One-press dim to FULL for easy focusing (press again to release to DMX input)
- Up and down level control
- Returns to previous level after power loss
- Mechanical
- Manufactured of epoxy-painted aluminum body and anodized aluminum heat sink
- Multiple yoke-fixing hole combinations for flexible mounting to the fixture
- Convection-cooled; operates without cooling fans
- Thermal
- Optimum cooling when mounted with heat sink fins in vertical position
- Control
- DMX512A/RDM In and thru via 5-Pin XLR connectors
- Supports up to 32 units on one DMX line
- RDM
- Discover (flashes light output)
- Receive overcurrent/undercurrent warnings
- Receive overtemperature warning
- Three-button local control: focus/test, up and down
- Single button dim to full for focus
- Up/down buttons for setting DMX address or for local intensity control
- One status indicator: multicolor LED for power, error, and valid DMX
- Three selectable dimmer output curves:
- General
- ANSI e1.20 RDM and ANSI e1.11 DMX512A
- Designed for use with all tungsten fixtures up to 750W
- Electronic Silent technology for operation free of dimmer and lamp-filament noise
- Changes your fixture into a truly distributed fixture with onboard dimming and control
- Electronic Dimming with harmonic and noise suppression - acoustic specification replaces dimmer rise time
- 115V output regulation options for 208V operation: - acoustic specification replaces rise time
- DMX thru is not self-terminating
- DMX In and Thru 1
Please Note: Represents 1/4 unit device load for purpose of calculating DMX daisy -chain device count (maximum 32 unit devices per DMX chain). close In the Box ETC Distributed Dimming Series ES750 Electronic Silent Dimmer (750W, Black) Yoke-Mount Pipe Mount Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Distributed Dimming Series ES750 Electronic Silent Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 7145A1101-0B Specs | Sizing | Suggested Breaker Sizing: 20 A | | Voltage | 85 to 140 V, 180 to 260 V | | Frequency Range | 47 to 63 Hz | | Power Cable | Input & Output: Stage-Pin Connector | | Isolation | 2,500 V between control and power components | | Maximum Output | 750 W | | Ambient Temperature | Maximum: 104°F (40°C) | | Humidity (Non-condensing) | 10 to 95% | | BTU | At full load: 171 Btu | | Dimensions (HxWxL) | 6.50 x 3.57 x 7.35" (165.10 x 90.68 x 186.69 mm) | | Weight | 4.0 lb (1.8 kg) |
