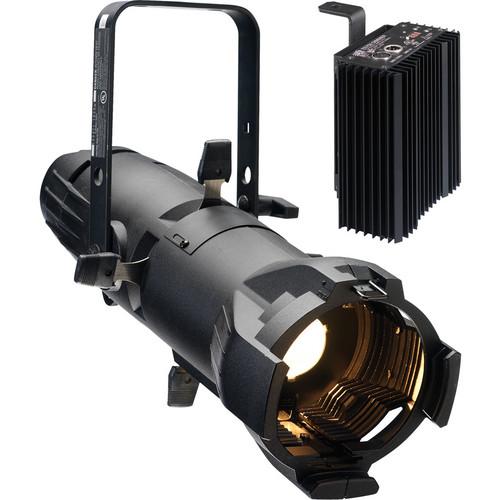

Product description The black Distributed Dimming Series Source Four Jr Dimmer Retrofit Kit from ETC is designed to retrofit an existing Source Four Jr / Jr Zoom Fixture and comes with a burner assembly and a stage pin connector. It also includes a lamp housing.
The Source Four Dimmer delivers a high performance in tungsten-lighting applications. Using ETC’s ES (Electronic Silent) technology and a convection-cooled design, this dimmer can be placed in acoustically sensitive venues. By taking DMX control signals directly, this self dimming tungsten fixture can reside alongside LEDs and moving lights, allowing system designs to focus on switched power and data distribution instead of centralized dimming systems.
The Source Four Dimmer can be used in applications requiring distributed dimming and position flexibility such as theaters, hybrid incandescent, LED and discharge systems, industrial productions, rentals, conference and exhibition centers, and multi-use venues like schools and meeting rooms. Mounting Flexibility - Yoke-mount; universal-mounting bracket included
- Direct-mounting on a fixture yoke in multiple orientations to accommodate maximum flexibility
Local Operation - One-press dim to Full for easy focusing (press again to release to DMX input)
- Up and down level control
- Returns to previous level after power loss
No Electrical Assembly Required - Comes as a complete kit with burner assembly - just mount to the yoke and place lamp burner at the back of an existing fixture
General - Electronic Silent technology for operation free of dimmer and lamp-filament noise
- Changes your Source Four into a truly distributed fixture with on board dimming and control
- Electronic dimming with harmonic and noise suppression; acoustic specification replaces dimmer rise time
- Local operation for console-free focusing
- ANSI E1.20 RDM and ANSI E1.11 DMX512A protocol compliance
Mechanical - Manufactured of epoxy-painted aluminum body and anodized aluminum heat sink
- Multiple yoke-fixing hole combinations for flexible mounting to the fixture
- Convection-cooled; operates without cooling fans
Electrical - Acoustic specification replaces rise-time
- Bare-end power cable input
- Lamp burner directly connected to output cable
- Electronic over-current protection 1
Please Note: Represents 1/4 unit device load for purpose of calculating DMX daisy-chain device count. Maximum 32 unit devices can operate per DMX chain. close Control Features - DMX512A/RDM In and thru via 5-Pin XLR connectors
- Supports up to 32 units on one DMX line
RDM - Discover (flashes light output)
- Receive over-current / undercurrent warnings
- Receive over temperature warning
Three-Button Local Control - Focus / test, up and down
- Single button dim to full for focus
- Up / down buttons for setting DMX address or for local intensity control
In the Box ETC Distributed Dimming Series Source Four Jr Dimmer Retrofit Kit with Burner Assembly & Stage Pin Connector (Black) Source Four Dimmer Burner Assembly Yoke-Mount; Universal-Mounting Bracket Lamp Housing 3' Fiberglass Sleeved Power Cable with Bare Leads Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Distributed Dimming Series Source Four Jr Dimmer Retrofit Kit with Burner Assembly & Stage Pin Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 7145K1003-B Specs | | | Sizing | Suggested Breaker Sizing: 20 A | | Voltage Range | 85 to 140 and 180 to 260 V | | Frequency Range | 47 to 63 Hz | | I/O | Supports 208 V input to 115 V output regulation | | Isolation | 2500 V isolation between control and power components | | Maximum Output | 750 W | | DMX | In and Thru, DMX thru is not self-terminating Represents 1/4 unit device load for purpose of calculating DMX daisy-chain device count. Maximum 32 unit devices can operate per DMX chain. | | | | Ambient Temperature | 104°F (40°C) maximum | | Humidity | 10 to 95%, non-condensing | | Cooling | Convection-cooled
Optimum cooling when mounted with heatsink fins in vertical position | | BTU | 171 at full load | | Status Indicator | Multicolor LED for power, error, and valid DMX | | Dimmer | Output Curves:
3 selectable
IES modified square law
Linear
Switched (50% threshold) | | | | Dimensions (HxWxL) | 6.50 x 3.57 x 7.35" (165.10 x 90.68 x 186.69 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 15.5 x 9.0 x 7.6" |
