User Manual for ETC Ellipsoidal Series 90° Source Four Fixture Click to enlarge the picture
Contents of the user manual for the ETC Ellipsoidal Series 90° Source Four
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Ellipsoidal Series 90° Source Four contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|

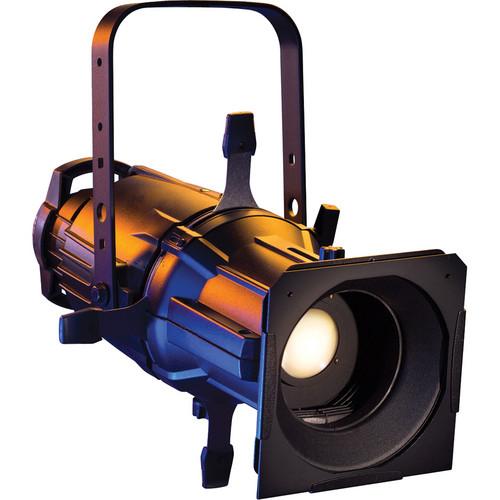

Product description The white Ellipsoidal Series 90° Source Four Fixture from ETC combines the energy-saving power of the patented HPL lamp with a dichroic reflector and optical-quality lenses for ensuring a cool beam. That means your gels, patterns, and shutters last longer and your performance space stays cooler.
Its technology gives you a clean white beam for imaging, crisp pattern projection, and a bright, even field. Rated for up to 750W, the Source Four is suitable for punching through saturated colors and performing long throws. - Physical
- Rugged, die cast aluminum construction
Rotating shutter assembly ± 25°
20 gauge stainless steel shutters in a tri-plane assembly
Interchangeable lens tubes with smooth-running Teflon guides provide 9 user-selectable field angle options
Thermally insulated rear handle
High-impact, thermally insulated knobs and shutter handles
Two accessory slots and a top mounted, gel frame retainer
Steel yoke with 2 mounting positions
Positive locking double-clutch fixture body
Slot for glass or stainless steel patterns
Wide accessory slot with sliding cover for motorized pattern devices or optional iris
UL and cUL listed
- Optical
- Optimized optical system for photometric performance and field uniformity
Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
Reflector secured with anti-vibration shock mounts
Micro-groove plastic fresnel lens
Lens secured with anti-vibration shock mounts
Tool free, positive locking X, Y, and Z lamp centering adjustments, unaffected by relamping
Beam edge continually adjustable hard-to-soft
Interchangeable lens barrels - Electrical
- High temperature 3-conductor 3" (96cm) leads in a glass fiber outer sleeve
Supports ETC Dimmer Doubling technology In the Box ETC Ellipsoidal Series 90° Source Four Fixture (White) 400CC C-Clamp 14" Color Frame 3' (96cm) Leads Dimmer Doubling Connector (NEMA L515P) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Ellipsoidal Series 90° Source Four Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Specs | Illuminance | At a Throw Distance of 65' (20 m) with Field Diameter 7.9' (2.4 m): 3,427 lux (318 footcandles)
At a Throw Distance of 100' (31 m) with Field Diameter 12.2' (3.7 m): 1,448 lux (135 footcandles)
At a Throw Distance of 135' (41 m) with Field Diameter 16.4' (5.0 m): 795 lux (74 footcandles)
At a Throw Distance of 165' (50 m) with Field Diameter 20.1' (6.1 m): 532 lux (49 footcandles) | | Connector | Dimmer Doubling (NEMA L515P) | | Power | 115 to 240 V, 50/60 Hz | | Lamp | 750 W maximum | | Weight | 19.2 lb (8.7 kg) | | | | Box Dimensions (LxWxH) | 24.0 x 11.5 x 11.5" |
