User Manual for ETC Eos Programming Wing Controller Click to enlarge the picture
Contents of the user manual for the ETC Eos Programming Wing Controller
- Product category: Lighting Console Accessories ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Lighting Console Accessories
|
User manual for the ETC Eos Programming Wing Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|

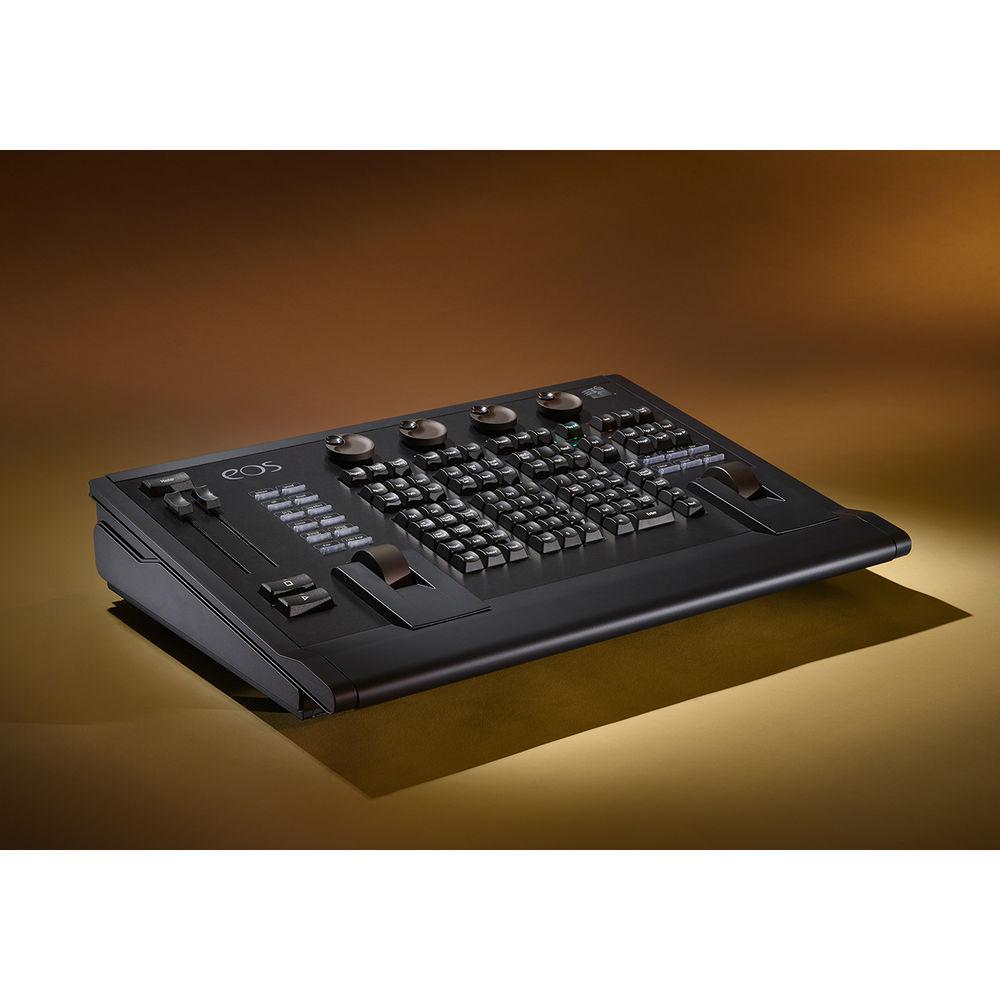

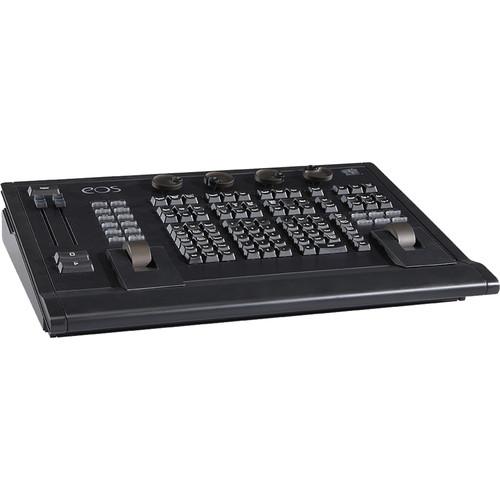

Product description The Eos Programming Wing Controller from ETC is designed for mobile programming and uses the Gio and Gio @5 keyboard layout. It includes playback controls, fader controls, four parameter encoders, and level and rate controls. Four DMX512-A/RDM outputs and a contact closure trigger are featured as well. It is compact and can be moved from room to room in a venue or can be taken on the road.

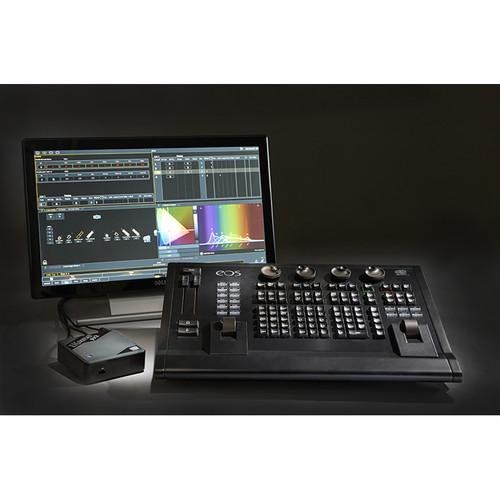

The Eos programming wing is 100x100mm VESA-mountable for temporary or permanent installation backstage, in a rack, or on a tech table. You can connect this wing to a compatible ETCnomad and ETCnomad Puck mini controller, an Ion Xe and Eos RPUs, or a RVI and RVI3 (available separately) to create a remote programming station anywhere in your venue. An external power supply is included.
Note that the RPUs and RVIs must be Windows 7-based to use with the Programming Wing. They are not compatible with Windows XP devices. To support the programming wing, ETCnomad must be used on a PC with Windows 7 or higher, or a Mac with OSX 10.11 (El Capitan) or later. The Eos Programming wing cannot be used with any Eos family control device with a dedicated facepanel. The wing will not function when connected by USB alone and cannot be connected to a host computer using a KVM switch. - Windows 7 or higher and Mac OSX El Capitan (10.11) or later compatibility
- Power sensing automatically turns the wing on when both an active USB data connection and mains power is provided via the external 12V power supply (included)
- Two powered USB ports for connectivity
- One USB port to store and secure an ETCnomad dongle
- Kensington lock compatible locking point
In the Box ETC Eos Programming Wing Controller Power Supply IEC Power Cord Dust Cover USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Eos Programming Wing Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 4240A1020-US Specs Compatibility | ETCnomad and ETCnomad Puck Mini Controllers Ion Xe and Eos RPUs RVI and RVI3 | Connectors | 4 x DMX512-A/RDM Ports 3 x USB Ports 1 x Littlite Power Output 1 x Contact Closure Trigger, Port | Controls | Playback Fader Level and Rate Wheels 4 x Standard Rotary Parameter Encoders | VESA Compatibility | 100 x 100 mm Mountable | Power Supply | 100 - 240 VAC at 50/60 Hz | Dimensions | 4.04 x 19.55 x 14.24" / 103 x 497 x 362 cm | Weight | 10 lb / 4.5 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
