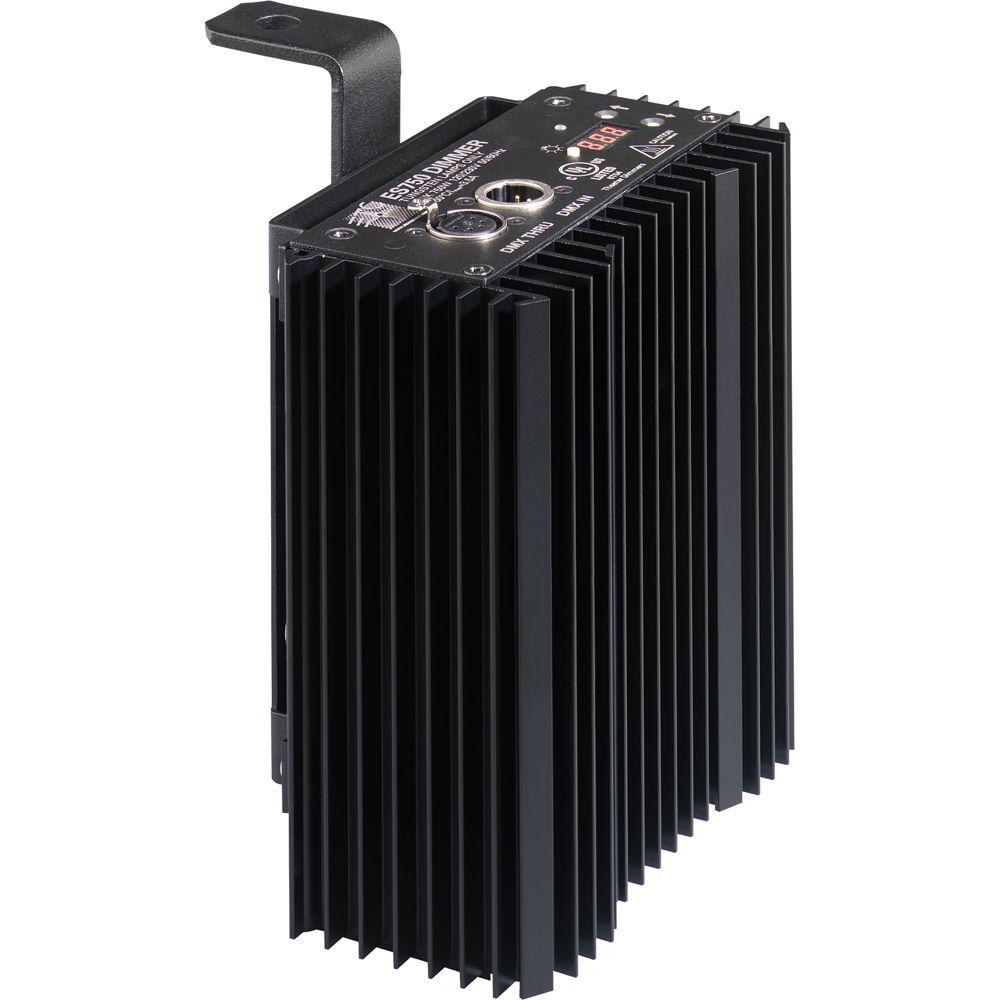

Product description Ideal for applications requiring distributed dimming and position flexibility, the ETC ES750 Dimmer with Twist Lock is a light control unit that can handle tungsten fixtures up to 750W, affording them the same intensity control as LED fixtures. Control features include DMX512A/RDM In and Thru via 5-Pin XLR connectors. Up to 32 units can be supported on 1 DMX line. Ideal for sound-sensitive locations, the 750 employs ES (Electronic Silence) that uses a passive convection heat sink design to produce 0 dBA at 3.28'. The multi-voltage ES750 works with 84-140/180-260 VAC, 47-63 Hz, making it ready for worldwide use. - Applications
- Applications requiring distributed dimming and position flexibility:
- Theaters
- Hybrid incandescent, LED and discharge systems
- Industrial productions
- Rentals
- Conference and exhibition centers
- Multi-use venues such as schools and meeting rooms
- Benefits
-
- ES Dimming technology
- Produces no lamp noise (Exceeds all risetime specs)
- Electronics sound-pressure level less than 0dBA at 3.28'
- Convection-cooled
- ANSI E1.20 RDM and ANSI E1.11 DMX512A

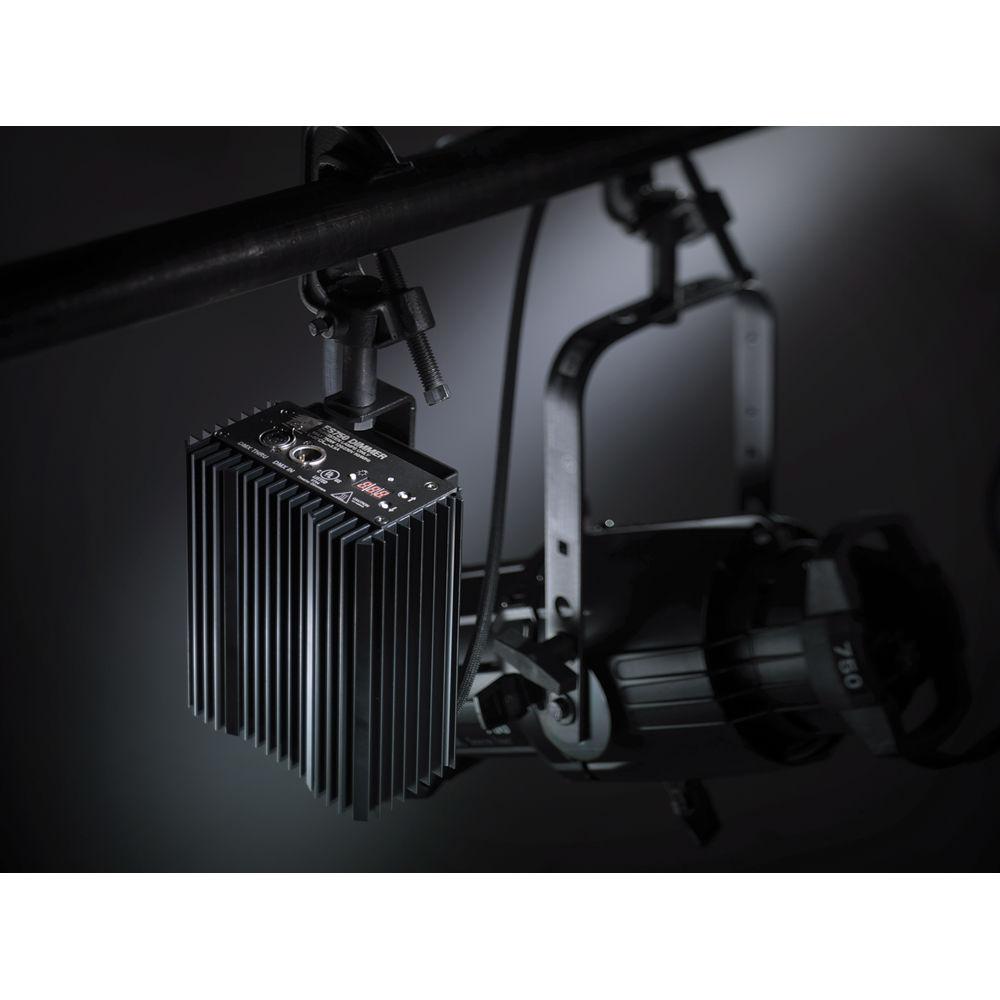

- Yoke-mount and pipe-mount brackets included for direct mounting on a fixture yoke or to a pipe in multiple orientations to accommodate maximum flexibility Local operation
- One-press dim to Full for easy focusing (press again to release to DMX input)
- Up and down level control
- Returns to previous level after power loss
- General
-
- Designed for use with all tungsten fixtures up to 750W
- Electronic Silent technology for operation free of dimmer and lamp-filament noise
- Changes your fixture into a truly distributed fixture with onboard dimming and control
- Electronic Dimming with harmonic and noise suppression
- Acoustic specification replaces dimmer rise time
- Mechanical
-
- Manufactured of epoxy-painted aluminum body and anodized aluminum heat sink

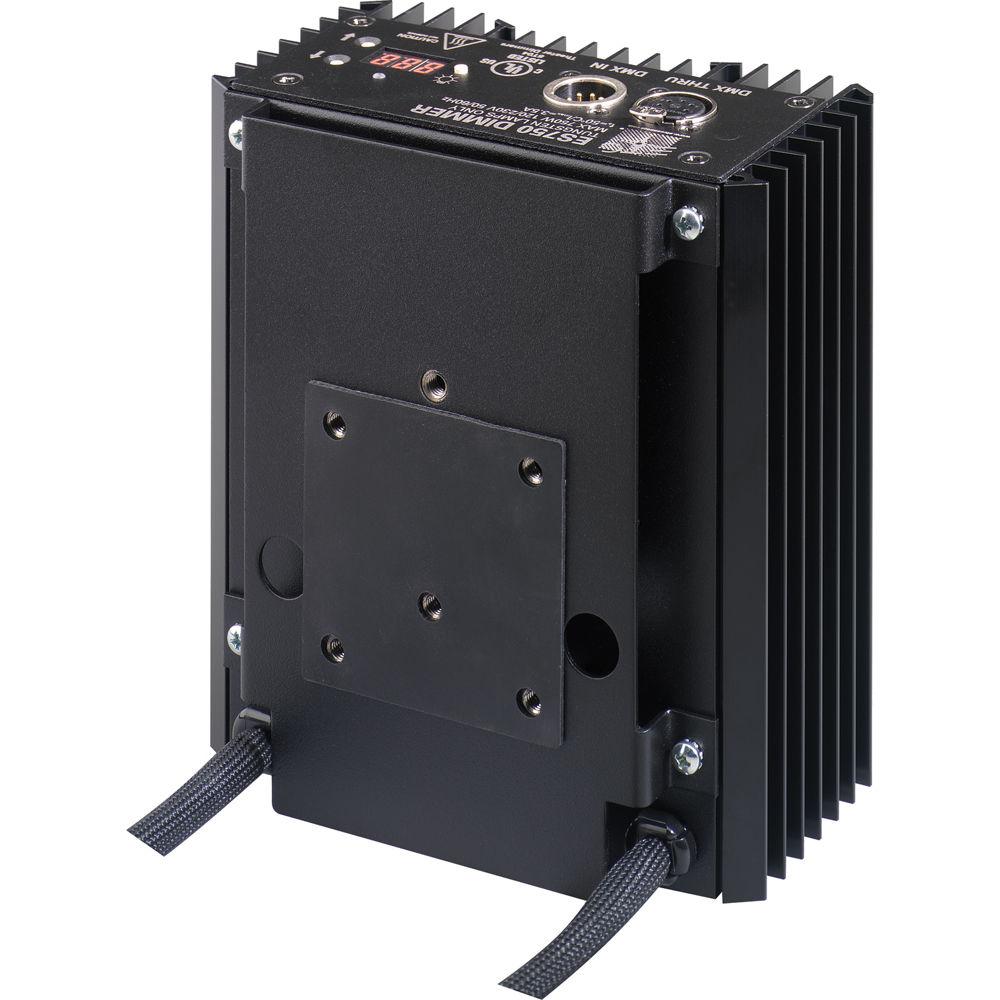

- Multiple yoke-fixing hole combinations for flexible mounting to the fixture
- Convection-cooled; operates without cooling fans
- Electrical
-
- Suggested breaker sizing: 20A
- Voltage ranges: 85-140V, 180-260V
- Frequency range: 47-63 Hz
- 115V output regulation options for 208V operation: Accoustic specification replaces risetime
- 2500V isolation between control and power components
- Max output 750W

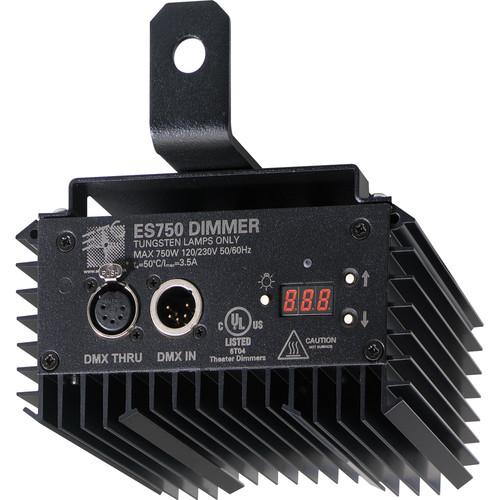

- DMX In and Thru
- Electronic overcurrent protection
- Thermal
-
- Maximum ambient temperature 104°F
- Humidity between 10 - 95%, non-condensing
- Convection-cooled
- Optimum cooling when mounted with heat sink fins in vertical position
- 171 Btu at full load
In the Box ETC ES750 Dimmer with Twist Lock Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC ES750 Dimmer with Twist Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC ES750 Specs | Material | Aluminum | | Dimming | Yes, ES (Electronic Silent), local and DMX, 0dBA at 3.28' (1.0 m)
Three selectable dimmer output curves:
IES modified square law
Linear
Switched (50% threshold) | | Cooling | Convection | | Voltage | Max. voltage: 750 W
85-140 VAC, 180-260 VAC, 47-63 Hz | | DMX | DMX In and Thru | | Mount | Yoke-mount and pipe-mount brackets included | | Thermal | Maximum ambient temperature 104°F (40°C)
Humidity between 10 - 95%, non-condensing
171 Btu at full load | | Dimensions | 6.5 x 3.57 x 7.35" (165 x 90.7 x 186.7 mm) | | Weight | 4.0 lb (1.8 kg) |
