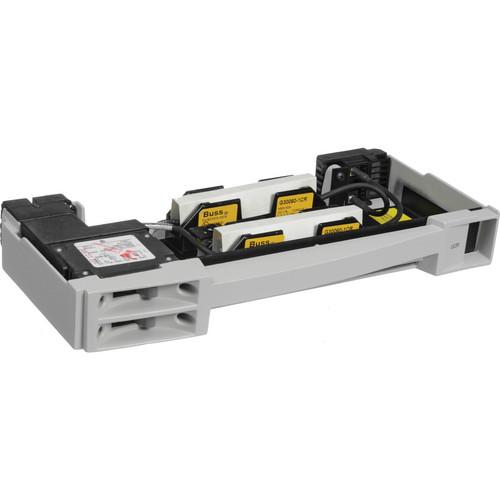

Product description The ETC ETCC20 Dual Constant Current Module (20 A) is a dual plug-in assembly for use in both Sensor+ and Unison series modular dimmer rack enclosures. The module distributes power with overcurrent protection from the dimmer rack enclosure to non-dimmed loads typically motors, backup and emergency systems, or auxiliary power distribution panels. Applications - Devices requiring constant current power
- Backup and Emergency systems
- Auxiliary power distribution panels
Features - Does not respond to control signals
- High-density modular assembly
- Die-cast aluminum chassis
- Replaceable fuse for short circuit protection and fault current coordination
Physical - Cast aluminum chassis, finished with textured epoxy paint
- Keyed to prevent insertion in inappropriately rated rack positions
- UL and cUL Listed for continuous duty at 100% of rated load
Circuit Breakers - Fully magnetic to eliminate nuisance tripping
- Rated for 100% switching duty applications
In the Box ETC ETCC20 Dual Constant Current Module (20 A) 8-Year Factory Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC ETCC20 Dual Constant Current Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 7083A1025 Specs | Ratings | Short Circuit Rating (SCCR):100,000A
UL and cUL Listed
Load Rating: 2.4 kW | | Circuit Breaker | Inrush Current Rating: 20x
Must-trip Rating: 125%, 10 to 120 seconds | | BTU Production | BTU: <10
<4 w
Efficiency: >99% Dimmer room HVAC systems must maintain ambient temperature of dimmer rack. Dimming systems operating within 10°F of upper/lower temperature limits must follow installation & operation guidelines. | | Compatibility | Installation racks: Sensor3, Sensor+, and Sensor
Touring Rack: Sensor+ 24 & 48 module (48 to 20 A dimmers & 96 to 20 A dimmers)
Portable Packs: Sensor3 & Sensor+ | | Efficiency | >99% | | Dimensions (H x W x D) | 1.5 x 11.8 x 4.9" (38 x 300 x 127 mm) | | Weight | 2.2 lb (1.1 kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.5 x 10.1 x 6.0" |
