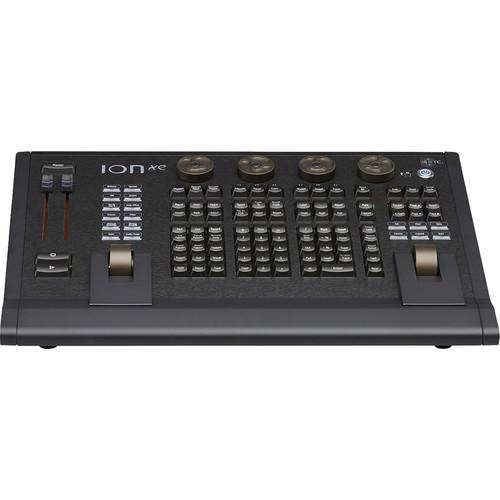

User Manual for ETC Ion Xe Console with 2048 Outputs Click to enlarge the picture
Contents of the user manual for the ETC Ion Xe Console with 2048
- Product category: Lighting Consoles & Controllers ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Lighting Consoles & Controllers
 |
User manual for the ETC Ion Xe Console with 2048 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More The Ion Xe Console from ETC provides complete control of conventional and moving lights, LEDs, and media servers. It features 2048 outputs, 16,000 control channels, and two motorized playback faders, and supports up to 99 users with partitioned parameter control and full backup, 10,000 cues, and 999 cue lists. The desk includes backlit buttons, four DMX/RDM ports, two Ethernet ports, and five USB ports for connecting flash drives, pointing devices, or keyboards. - Master playback pair with motorized faders
- User-definable direct selects
- Four discrete palette types (IFCB)
- Effects provide dynamic relational and absolute progressive behavior
- Central Information Area (CIA) accesses the browser and other controls
- Four pageable encoders for non-intensity parameter control
- Configurable high-density channel display, with format and flexi-channel modes
- Up to six abstract color spaces, tinting, spectrum, and fade path tools
- User-configurable, interactive Magic Sheets
- ETCNet2/Net3, ArtNet, and Avab UDP network output protocols
- Show import from Obsession, Express, Expression, Emphasis, Congo, Cobalt, Grand MA1, Grand MA2, Safari, and Strand 500/300 series
- Two individually configurable Ethernet ports
- Multiple MIDI and/or SMPTE TimeCode inputs, Analog/Serial inputs, OSC transmit/receive
- Virtual Media Server function for pixel mapped effects, images, and animations
- ETCnomad software for Mac/Windows available for download via ETC website
In the Box ETC Ion Xe Console with 2048 Outputs Dust Cover Littlite Console Light Mouse and Mousepad External Alphanumeric Keyboard 2 x Active DisplayPort-to-DVI Adapters Locking IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Ion Xe Console with 2048 Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Ion Xe Specs | System Capacity & Performance | 2048 outputs
16,000 control channels
10,000 cues
999 cue lists
200 active playbacks
999 submasters
100 fader pages
4 x 1000 palettes (intensity, focus, color, beam)
1000 presets
1000 groups
1000 effects (relative, absolute, or step)
99,999 macros
1000 snapshots
1000 curves
1000 color paths
Solid-state hard drive | | Output Protocol | ETCNet2/Net3 (powered by ACN), ArtNet, and Avab UDP | | Interfaces | 2 x Ethernet ports
4 x DMX/RDM ports
1 x Sub-D connector
2 x DisplayPorts
5 x USB
12 x analog inputs
12 x SPDT outputs
1 x RS-232
OSC transmit/receive
UDP transmit/receive
MIDI TimeCode, MIDI show control through Gateway
SMPTE TimeCode through Gateway | | Monitors | 2 x external monitors with DisplayPort connectivity
Windows 7 compatible
1280 x 1024 minimum resolution
Standard / touch / multi-touch | | Languages Supported | English, German, Spanish, French, Italian, Japanese, Korean, Russian, simplified Chinese, and traditional Chinese | | Power Input | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 1 A approx. at 120 V or 230/240 V, not including external monitors | | Dimensions | 4.1 x 19.6 x 14.2" / 10.4 x 49.7 x 36.2 cm | | Weight | 12.7 lb / 5.8 kg | | | | Package Weight | 20.6 lb | | Box Dimensions (LxWxH) | 27.0 x 18.5 x 9.25" |
