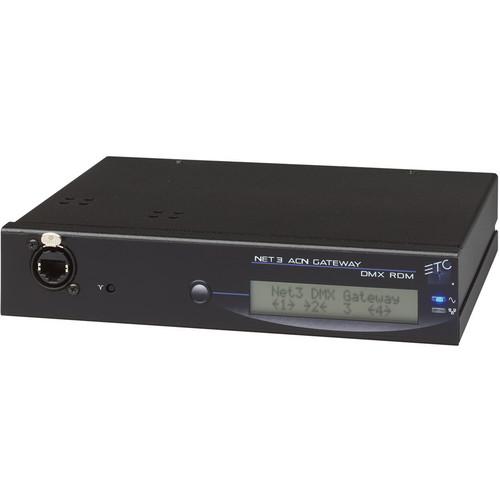

User Manual for ETC Net3 N34G-4B Four-Port Gateway Chassis Click to enlarge the picture
Contents of the user manual for the ETC Net3 N34G-4B Four-Port Gateway Chassis
- Product category: DMX Devices ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC DMX Devices
|
User manual for the ETC Net3 N34G-4B Four-Port Gateway Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The ETC Net3 N34G-4B Four-Port Gateway Chassis provides the basis for a data node for distribution of DMX information throughout lighting and computer systems using bidirectional Ethernet communication. This listing is for the Gateway Chassis only. The power supply is purchased separately (BH# ETPS406F). There are no DMX modules in this unit. Up to 4 modules can be installed by the user in whatever combination is required to suit a particular venue or event: DMX in, DMX out, DMX RJ45 or terminal strip.
The Gateway is a configurable gate for essential DMX, sACN and Remote Device Management data to be distributed throughout your entire network, ensuring not just basic control of your lights, but also peace of mind that all components are functioning as designed. RDM is a protocol enhancement to DMX512 that allows bi-directional communication between a lighting or system controller and attached RDM compliant devices over a standard DMX line. This protocol will allow configuration, status monitoring, and management of these devices in such a way that does not disturb the normal operation of standard DMX512 devices that do not recognize the RDM protocol. The Gateway is capable of handling up to 2048 channels of data in combination, input and output, when four modules are installed. The unit's LCD readout provides information on DMX port, RDM and network configurations.
The Gateway is fabricated from 16-gauge cold-rolled steel and is finished in fine-texture, scratch resistant black powder coat. - Supported Functions
-
- Supports Net3/ACN - ANSI E1.31 and E1.17
- Supports RDM - ANSI E1.20
- USITT DMX512 and ANSI E1.11 DMX512-A compliant
- Compliant with IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX and 802.3af for Power over Ethernet
- Advanced Input Patch (AIP) allows any incoming address to be associated with any sACN address
- Flexible Output Patch (FOP) allows a 512 address universe to begin at any output address
- Support for per-address or per-universe level priority
- Configuration
-
- Net3 Mode configuration provided by Gateway Configuration Editor (GCE) or directly from ACN
- Supports up to 512 DMX addresses per port
- Supports up to 63,999 Streaming ACN universes
- Up to 2048 channels of data input and output in combination
- DMX data input or output configurable by user
- Multiple outputs of a single DMX universe from a single gateway using a DMX splitter
- Supports discrete DMX universe outputs per port
- Multiple sources may be combined to the network with each source or address allowed an independent priority
- Individual port start address
- User configurable labeling
- Control Interface
-
- Backlit LCD Display for Gateway identification, Network configuration, DMX port configuration, DMX port status, RDM Configuration
- Menu Button for backlight/paging control
- Reset button for hard reset or forced reboot
- Front Panel RJ45 for connection to lighting network
- Front and rear Power and data indicators:
- Blue power indicators
- Green network activity indicator In the Box ETC Net3 N34G-4B Four-Port Gateway Chassis Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Net3 N34G-4B Four-Port Gateway Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC N34G-4B Specs | Power | IEEE802.3af Power over Ethernet
8-28 VDC external power supply (not included)
Maximum power consumption < 5 watts | | Connectors | 1 x RJ45 DMX connector
1 x Terminal strip connector
Fully optically-isolated input from the gateway electronics
Integrated DMX/RDM termination | | Environmental | Ambient operating temperature: 32° to 104°F (0° to 40°C)
Operating humidity: 5-95% non-condensing
CE compliant and ETL listed | | Data Signal | Maximum delay time from input to output < 22mS
Selectable DMX refresh rate with a maximum > 40 Hz | | Dimensions | Gateway: 8.5 x 8.2 x 1.7" (21.5 x 21.0 x 4.5 cm) | | Weight | 3 lb (1.4 kg) | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 15.0 x 12.4 x 3.0" |
