Product description

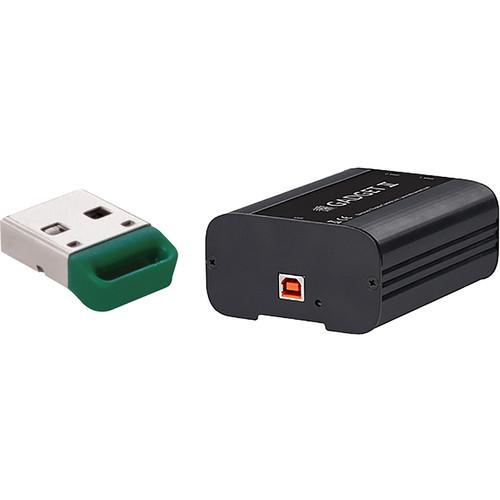

• Gadget II A portable USB-to-two-DMX interface, the ETC Gadget II connects via USB to any computer without need for a network infrastructure. When used with Windows- or Mac-based ETCnomad controllers, the Gadget II outputs levels via DMX and initiates bidirectional communication using RDM. The device can also be used with UpdaterAtor or Net3 Concert software to interact with RDM-enabled fixtures or to update a range of ETC devices.
  • Distributes DMX and RDM
  • Compatible with ETCnomad (requires Eos V2.4 / Cobalt V7.3 or higher), Net3 Concert, and UpdaterAtor software
  • USB activity indicators
  • Finished in fine-textured, powder-coat paint with matching overlay
• Nomad 512 Output Lighting Controller Kit The Nomad 512 Output Lighting Controller Kit from ETC is a full-featured Windows- and Mac-based lighting control application for use with conventional and moving lights, media servers, and LED luminaires. Nomad can be used with either Eos or Cobalt operating systems in a primary, backup, client, and offline environment. To output to a system, Nomad software requires the use of the Nomad key. When connected as a client, Nomad accesses the full output capacity of the connected system. Without the key, Nomad operates offline only. Optional fader wings, X-keys, and compatibility with USB-MIDI panels allow extended and customizable control.
  • When Nomad is connected as a client, output capacity is determined by the system it is connected to
  • Net3/ACN/sACN and Artnet Ethernet lighting protocols
  • DMX/RDM via ETC Gadget/Gadget 2
  • DMX/RDM via Net3 DMX/RDM Gateways
  • OSC transmit/receive
  • UDP transmit/receive

• Limited 1-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Gadget II

  Compatibility	Windows- and Mac-based computers Windows- and Mac-based ETCnomad controllers
  Supported Operating Systems	Windows 7 (32-bit and 64-bit) Windows 8 (32-bit and 64-bit) Mac OS X El Capitan (10.11) (ETCnomad software only)
  RDM	RDM (ANSI E1.20)
  DMX	USITT DMX512 and ANSI E1.11 DMX512-A

  DMX Connectors	2 x 5-pin XLR, DMX output ports
  USB Connector	1 x USB Type-B, female
  LED	Activity LED

  Power Requirements	5 V, via USB
  Compliant	RoHS (lead-free) & CE
  Ambient Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 - 95%, non-condensing

  Dimensions	1.7 x 4.2 x 3.3" / 44 x 107 x 83 mm
  Weight	0.49 lb / 0.22 kg

  Box Dimensions (LxWxH)	6.8 x 4.3 x 3.3"

• Nomad 512 Output Lighting Controller Kit

  Channels

  512

  Minimum Hardware Requirements

  Windows Intel-based multi-core processor with clock frequency higher than 2.0 GHz Windows 7 or 8 with >500 MB free disk space Screen resolution of at least 1280x1024 512 MB of RAM minimum (1 GB recommended) 64 MB video card (Cobalt requires hardware-accelerated OpenGL) RJ45 Ethernet network adapter (required to communicate with a lighting network, DMX output devices) USB ports for connection of Nomad dongle, accessories Mac Intel-based multi-core processor with clock frequency higher than 2.0 GHz Mac OS X Mavericks (10.9) with >500 MB free disk space Screen resolution of at least 1280 x 1024 512 MB of RAM minimum (1 GB recommended) 64 MB Video Card (Cobalt requires hardware accelerated OpenGL) RJ45 Ethernet network adapter (required to communicate with a lighting network, DMX output devices)

  Box Dimensions (LxWxH)	7.2 x 5.6 x 1.3"
