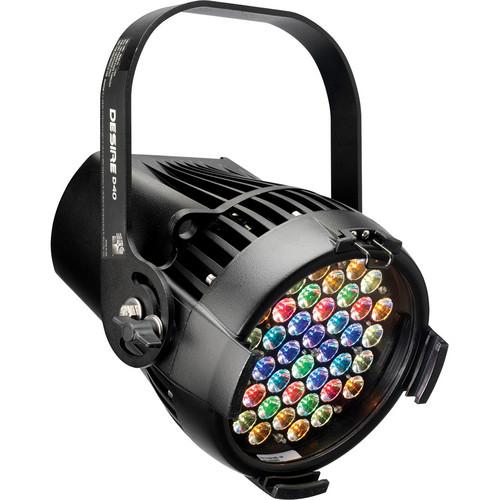

User Manual for ETC Selador Desire D40 Lustr LED Fixture with Edison Connector Click to enlarge the picture
Contents of the user manual for the ETC Selador Desire D40 Lustr LED
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Selador Desire D40 Lustr LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The white Selador Desire D40 Lustr+ LED Fixture with Edison Connector from ETC combines 40 Luxeon Rebel emitters in one unit, for bright, efficient lighting. The PAR-shaped washlight is a multipurpose tool that can be combined into a rig with conventional fixtures or used by itself. It features efficient primary lenses and careful color choices making it useful for stage and studio applications where strong color and high intensity are required.By combining up to seven LED colors per fixture, the x7 Color System creates a balanced blend of deep, saturated colored or natural white light. And with the Desire luminaires, you get even more color flexibility through the Adaptive Color Control system. The Selador x7 Color System produces a wide range of spectrally balanced, saturated, and tinted color choices.The user-interface on the rear of the unit puts the control in your hands – the Desire luminaire can be managed by any RDM-enabled controller or on their own. The fixture offers Quick Setup options, so you can quickly and easily adjust the luminaire’s performance.The additional red-shift option allows the Desire fixture to mimic a tungsten fade, and the Plus 7 Mode gives you control over each LED color to increase or decrease individual colors. Using the built-in color-pickers on ETC lighting control consoles (sold separately), you can pick a gel match for the Desire fixtures to produce, or you can modify the color to get the exact shade you want.You get amazing all-around theatrical-quality light from the D40 Lustr+ array. The x7 Color System is optimized in Lustr+ units to create clean white and tinted light, to bring out the beauty of set pieces and render individual skin tones naturally.A rugged, die-cast enclosure, noiseless fan-free operation, multiple lens options, and advanced user interface make this fixture a great choice for multiple applications. Note: All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Ambient temperatures and orientation affect thermal conditions. Based on the LED manufacturer's B50 l70 specification, a Selador luminaire will achieve approx. 70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels, which may eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs. - D40 Lustr+ front light wash fixture is optimized for skin tones and light tints for use as a theatrical front light
- Six colors plus high-intensity white LEDs create a front light wash fixture for full range color, with an emphasis on lighter colors and white
- 40 LED color mixing wash fixture
- Rated for IP20 dry location use
- Power and DMX in / thru connections for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Rugged, die-cast all-metal housing
- Easy access slots for secondary lenses and standard 7.5" (190mm) PAR accessories
- Hanging yoke is standard; optional yoke / floor stand available
- Neutrik power in and thru connections (dry location version)
- Up to 10 fixtures may be linked via power in / thru connectors per 15A circuit using 1mm² cables as supplied
- Requires power from a non-dim source
- 50,000 hour LED life (50,000 hours to 70% intensity)
- 40 Luxeon Rebel 2.5W LED emitters
- Broad spectrum color interacts seamlessly with conventional sources
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Exclusive optional red-shift option emulates tungsten dimming performance characteristics
- Additional secondary lenses available for multiple beam spread options
- Each fixture ships with a very narrow secondary lens
- DMX512 in and thru via 5-pin XLR connectors
- Multiple control options including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades
- RDM functionality for address and setting changes
- Active electronic thermal management for droop-free operation
- No-noise, fan-free convection cooling for use in acoustically sensitive installations
- Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free airflow around fixture housing
- Primary field angle of 17°
- Round and oblong beam-diffusers (sold separately)
- UL 1573-rated for indoor use
In the Box ETC Selador Desire D40 Lustr+ LED Fixture with Edison Connector (White) Parallel-Blade U-Ground Connector (Edison) Hanging Yoke Very Narrow Secondary Lens Bare End Power Lead Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Selador Desire D40 Lustr LED Fixture with Edison Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D40 Lustr Specs | Rating | D40 Lustr+ at 3200 K
CRI: 8
CQS: 88
Color Fidelity: 88
Duv: 0.000
D40 Lustr+ at 5600 K
CRI: 93
CQS: 92
Color Fidelity: 90 A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint. | | Mode | Boost-Cold:
Degree: 17°
Candela: 144,207
Field Lumens: 3,102
Beam Lumens: 1,488
Lumens/W: 30.3
Regulated:
Degree: 17°
Candela: 129,832
Field Lumens: 2,788
Beam Lumens: 1,333
Lumens/W: 29.8 | | Illuminance | 13,078 lux (1,215 fc) @ 10.0' (3.0 m) throw distance & 3.1' (0.9 m) field diameter
5,813 lux (540 fc) @ 15.1' (4.6 m) throw distance & 4.6' (1.4 m) field diameter
3,270 lux (304 fc) @ 20.0' (6.1 m) throw distance & 6.2' (1.9 m) field diameter
2,093 lux (194 fc) @ 25.0' (7.6 m) throw distance & 7.7' (2.3 m) field diameter
10.76 lux (1 fc) @ 348.0' (106.0 m) throw distance | | Power Input | 100 to 240 VAC, 50/60 Hz, universal power input | | Maximum Power Consumption | 110 W, 1.0 / 0.5 A, 120/240 V at full intensity | | Field Angle | 17° (primary) | | Ambient Operating Temperature | -4 to 104°F (-20 to 40°C) | | Dimensions (W x H x D) | Overall: 10.6 x 19.3 x 10.4" (269.2 x 490.2 x 264.1 mm) | | Weight | 14.1 lb (6.4 kg) | | | | Box Dimensions (LxWxH) | 21.0 x 18.0 x 16.0" |
