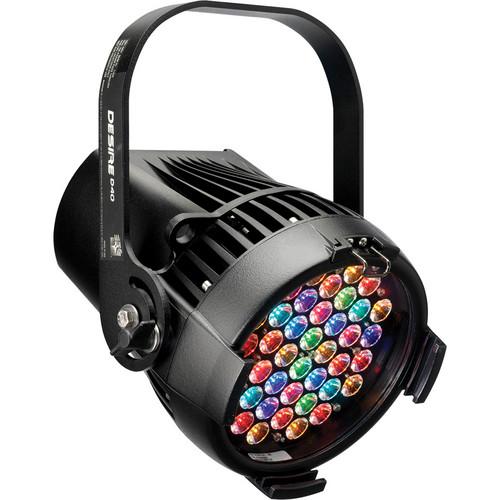

User Manual for ETC Selador Desire D40 Vivid LED Fixture Click to enlarge the picture
Contents of the user manual for the ETC Selador Desire D40 Vivid LED
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Selador Desire D40 Vivid LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The black Selador Desire D40 Vivid LED Fixture from ETC combines 40 Luxeon Rebel emitters in one unit, for bright, efficient lighting. The PAR-shaped washlight is a multipurpose tool that can be combined into a rig with conventional fixtures or used by itself. It features efficient primary lenses and careful color choices making it useful for stage and studio applications where strong color and high intensity are required.By combining up to seven LED colors per fixture, the x7 Color System creates a balanced blend of deep, saturated colored or natural white light. And with the Desire luminaires, you get even more color flexibility through the Adaptive Color Control system. The Selador x7 Color System produces a wide range of spectrally balanced, saturated, and tinted color choices.The user-interface on the rear of the unit puts the control in your hands – the Desire luminaire can be managed by any RDM-enabled controller or on their own. The fixture offers Quick Setup options, so you can quickly and easily adjust the luminaire’s performance.The additional red-shift option allows the Desire fixture to mimic a tungsten fade, and the Plus 7 Mode gives you control over each LED color to increase or decrease individual colors. Using the built-in color-pickers on ETC lighting control consoles (sold separately), you can pick a gel match for the Desire fixtures to produce, or you can modify the color to get the exact shade you want.The Desire D40 Vivid luminaires give you a broad color range for spectrally-balanced saturated and tinted light and are able to match the color from your gelled tungsten sources.A rugged, die-cast enclosure, noiseless fan-free operation, multiple lens options, and advanced user interface make this fixture a great choice for multiple applications. - D40 Vivid wash fixture designed for high-intensity color mixing across the spectrum for wide color wash use
- x7 Color System array balanced for best all-round use as a color changing wash luminaire
- 40 LED color mixing wash fixture
- Rated for IP20 dry location use
- Power and DMX in / thru connections for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Rugged, die-cast all-metal housing
- Easy access slots for secondary lenses and standard 7.5" (190mm) PAR accessories
- Hanging yoke is standard; optional yoke / floor stand available
- Neutrik power in and thru connections (dry location version)
- Up to 10 fixtures may be linked via power in / thru connectors per 15A circuit using 1mm² cables as supplied
- Requires power from a non-dim source
- 50,000 hour LED life (50,000 hours to 70% intensity)
- 40 Luxeon Rebel 2.5W LED emitters
- Broad spectrum color interacts seamlessly with conventional sources
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Exclusive optional red-shift option emulates tungsten dimming performance characteristics
- Additional secondary lenses available for multiple beam spread options
- Each fixture ships with a very narrow secondary lens
- DMX512 in and thru via 5-pin XLR connectors
- Multiple control options including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades
- RDM functionality for address and setting changes
- Active electronic thermal management for droop-free operation
- No-noise, fan-free convection cooling for use in acoustically sensitive installations
- Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free airflow around fixture housing
- Primary field angle of 17°
- Round and oblong beam-diffusers (sold separately)
- UL 1573-rated for indoor use
In the Box ETC Selador Desire D40 Vivid LED Fixture (Black) Hanging Yoke Very Narrow Secondary Lens Bare End Power Lead Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Selador Desire D40 Vivid LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D40 Vivid Specs | Rating | D40 Vivid at 3200 K
CRI: 87
CQS: 89
Color Fidelity: 89
Duv: 0.000
D40 Vivid at 5600 K
CRI: 90
CQS: 92
Color Fidelity: 92
Duv: 0.000 A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint. | | Mode | Boost-Cold:
Degree: 17°
Candela: 115,088
Field Lumens: 2,705
Beam Lumens: 1,208
Lumens/W: 26.7
Regulated:
Degree: 17°
Candela: 96,152
Field Lumens: 2,234
Beam Lumens: 996
Lumens/W: 26.5 | | Illuminance | 10,968 lux (1,019 fc) @ 10.0' (3.0 m) throw distance & 3.1' (0.9 m) field diameter
4,875 lux (453 fc) @ 15.1' (4.6 m) throw distance & 4.6' (1.4 m) field diameter
2,742 lux (255 fc) @ 20.0' (6.1 m) throw distance & 6.2' (1.9 m) field diameter
1,755 lux (163 fc) @ 24.9' (7.6 m) throw distance & 7.7' (2.3 m) field diameter
10.76 lux (1 fc) @ 319.0' (97 m) throw distance | | Power Input | 100 to 240 VAC, 50/60 Hz, universal power input | | Maximum Power Consumption | 110 W, 1.0 / 0.5 A, 120/240 V at full intensity | | Field Angle | 17° (primary) | | Ambient Operating Temperature | -4 to 104°F (-20 to 40°C) | | Dimensions (W x H x D) | Overall: 10.6 x 19.3 x 10.4" (269.2 x 490.2 x 264.1 mm) | | Weight | 14.1 lb (6.4 kg) | | | | Box Dimensions (LxWxH) | 21.0 x 18.0 x 16.0" |
