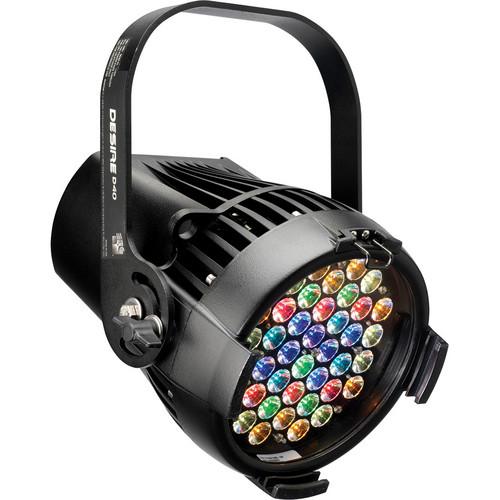

User Manual for ETC Selador Desire D40XT Lustr LED Fixture with Stage Pin Connector Click to enlarge the picture
Contents of the user manual for the ETC Selador Desire D40XT Lustr LED
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Selador Desire D40XT Lustr LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The black Selador Desire D40XT Lustr+ LED Fixture with Stage Pin Connector from ETC can withstand heat, cold, rain and snow, without skimping on lighting features. The durable Desire D40XT luminaire has an IP rating of 66, meaning that the unit’s housing completely protects the electrical components from dust, water, and the formation of ice, and can withstand temperatures ranging from -4 to 104°F (-20 to 40°C). From coatings and seals, to vents and cord grips, the D40XT fixture’s hardware can stand up to extreme temperatures, UV rays, and atmospheric changes. And the luminaire’s attached cabling is UL Listed for extra-hard usage and outdoor ratings.The D40XT luminaire features 40 high-efficiency emitters. It also includes a user-interface with an expanded LCD display for control options. Quick Setups like General, Stage, XT (Exterior)/Architectural, High-Impact, and Studio simplify your lighting tasks, by giving specific operating behaviors for any application.The x7 Color System combines up to 7 different LED colors on one unit into the D40XT fixture so you can take dazzling colored and crisp white light outdoors where you need it. The x7 Color System carefully balances its lighting to give you a range of adjustable color options to fit your needs.For beautiful, pure white light and rich color, choose the D40XT Lustr+ array. The Lustr+ luminaire – with adjustable white and tinted light – is a theatrical-quality fixture for lighting talent outdoors or highlighting architectural features on building exteriors.A rugged, die-cast enclosure, noiseless fan-free operation, multiple lens options, and advanced user interface make this fixture a great choice for multiple applications. It is suitable for working outside at festivals, theme parks, video shoots, and architectural installations. Note: All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Ambient temperatures and orientation affect thermal conditions. Based on the LED manufacturer's B50 l70 specification, a Selador luminaire will achieve approx. 70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels, which may eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs. - D40 Lustr+ front light wash fixture is optimized for skin tones and light tints for use as a theatrical front light
- Six colors plus high-intensity white LEDs create a front light wash fixture for full range color, with an emphasis on lighter colors and white
- 40 LED color mixing wash fixture
- ETL listed to Ul1573 - the standard for stage and studio lighting units
- Power and DMX in / thru connections for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Rugged, die-cast all-metal housing
- Easy access slots for secondary lenses and standard 7.5" (190mm) PAR accessories
- Hanging yoke is standard; optional yoke / floor stand available
- Up to 10 fixtures may be linked via power in / thru connectors per 15A circuit using 1mm² cables as supplied
- Requires power from a non-dim source
- 50,000 hour LED life (50,000 hours to 70% intensity)
- 40 Luxeon Rebel 2.5W LED emitters
- Broad spectrum color interacts seamlessly with conventional sources
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Exclusive optional red-shift option emulates tungsten dimming performance characteristics
- Additional secondary lenses available for multiple beam spread options
- Each fixture ships with a very narrow secondary lens
- DMX512 in and thru via 5-pin XLR connectors
- Multiple control options including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades
- RDM functionality for address and setting changes
- Active electronic thermal management for droop-free operation
- No-noise, fan-free convection cooling for use in acoustically sensitive installations
- Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free airflow around fixture housing
- Primary field angle of 17°
- Round and oblong beam-diffusers (sold separately)
- UL 1573-rated for indoor use
In the Box ETC Selador Desire D40XT Lustr+ LED Fixture with Stage Pin Connector (Black) Two Pin and Ground (Stage Pin) Hanging Yoke Very Narrow Secondary Lens Bare End Power Lead Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Selador Desire D40XT Lustr LED Fixture with Stage Pin Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D40XT Lustr Specs | Rating | D40 Lustr+ at 3200 K
CRI: 86
CQS: 88
Color Fidelity: 88
Duv: 0.000
D40 Lustr+ at 5600 K
CRI: 93
CQS: 92
Color Fidelity: 90 A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint. | | Mode | Boost-Cold:
Degree: 17°
Candela: 121,500
Field Lumens: 2,980
Beam Lumens: 1,450
Lumens/W: 30.3
Regulated:
Degree: 17°
Candela: 109,100
Field Lumens: 2,680
Beam Lumens: 1,300
Lumens/W: 29.8 | | Illuminance | 13,078 lux (1,215 fc) @ 10.0' (3.0 m) throw distance & 3.1' (0.9 m) field diameter
5,813 lux (540 fc) @ 15.1' (4.6 m) throw distance & 4.6' (1.4 m) field diameter
3,270 lux (304 fc) @ 20.0' (6.1 m) throw distance & 6.2' (1.9 m) field diameter
2,093 lux (194 fc) @ 25.0' (7.6 m) throw distance & 7.7' (2.3 m) field diameter
10.76 lux (1 fc) @ 348.0' (106.0 m) throw distance | | Power Input | 100 to 240 VAC, 50/60 Hz, universal power input | | Maximum Power Consumption | 110 W, 1.0 / 0.5 A, 120/240 V at full intensity | | Field Angle | 17° (primary) | | Ambient Operating Temperature | -4 to 104°F (-20 to 40°C) | | Dimensions (W x H x D) | Overall: 10.6 x 19.3 x 10.4" (269.2 x 490.2 x 264.1 mm) | | Weight | 14.1 lb (6.4 kg) |
