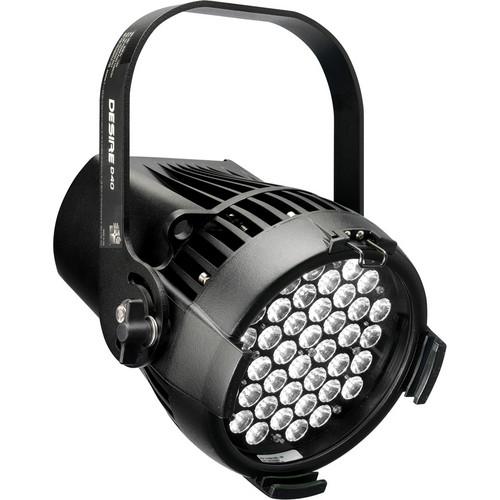

User Manual for ETC Selador Desire D60 Studio Daylight Wash Luminaire with Edison Connector Click to enlarge the picture
Contents of the user manual for the ETC Selador Desire D60 Studio Daylight
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Selador Desire D60 Studio Daylight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The black Selador Desire D60 Studio Daylight Wash Luminaire with Edison Connector from ETC uses high-output, white light LEDs to create a suitable fixture for video, film, and other white light only applications where color temperature and skin-tone rendering are critical.It offers a rugged die-cast enclosure, quiet, fan-cooled operation, multiple lens options, and an advanced user interface that enables easy configuration and specific features for video and film professionals.The fixture can be configured to operate under control of a studio lighting control desk or via standalone ‘no console required’ settings for location lighting. The D60 Studio Daylight contains sixty energy-saving 5600 K LEDs for high-intensity, non-variable cool white output. It provides enhanced color rendering to the eye, particularly at higher color temperature settings such as 5600 K. This round, PAR-shaped washlight is well-suited for stage, studio, and places where brightness and color flexibility are required.The Studio Luminaire comes with 60 powerful emitters that produce stronger light output than other LEDs. The D60 Studio Luminaire is designed for indoor broadcast, theater, or architectural uses. Note: All LED sources experience some lessening of light output and color shift over time. LED output varies with thermal conditions. Ambient temperatures and orientation affect thermal conditions. Based on the LED manufacturer's B50 l70 specification, a Selador luminaire will achieve approx. 70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs are used for different durations and levels, which may eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs. - 60 LED variable white light wash fixture
- CE compliant, ETL listed to UL1573, the standard for stage and studio lighting units
- IP20-rated for indoor use
- Power and DMX In / Through connections for easy setup
- User-friendly control interface with multiple modes and fixture settings for console-free operation
- Rugged die-cast all-metal housing
- Easy access slots for secondary lenses and accessories
- Uses 225mm lenses and accessories
- Hanging yoke standard, yoke / floor stand sold separately
- Neutrik power in and through connections
- DMX512 in and thru via 5-pin XLR connectors
- Up to 9 fixtures can be linked via power in/thru connectors per 15A circuit using 1.0mm2 cables as supplied
- Requires power from a non-dim source
- Rebel ES white light emitters for higher output
- Studio Daylight's optional red-shift option emulates tungsten dimming performance characteristics
- Fixture comes with a 25° lens
- Additional secondary lenses available for multiple beam spread options
- Multiple control options including strobe and console-free Master / Slave mode
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades
- RDM functionality for address and setting changes
- Active electronic thermal management for droop-free operation
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
- Primary field angle of 17°
- Native field angle of 18°
- The fan in this D60 fixture is thermostatically controlled to run as needed with 60% fan speed at high intensities at room temperature
- Studio profile Quick Set enables control of intensity from luminaire U/I with no console required
- Regulated output for intensity stability
- The fixture uses Luxeon Rebel ES emitters specified by strict binning standards
- The fixture with non-variable single-color daylight array such as Studio Daylight can use standard color correction filters (Rosco 3314, Rosco 3316 or similar) to achieve desired on-camera result
- On-camera LED response varies with different cameras and settings
- Daylight LEDs can appear slightly greener than other 5600 K sources on camera
- Studio control mode allows fixtures to be operated with no DMX console required
- Compatible with 25°, 35°, 45°, and 75° round field diffuser lenses and 20 x 40°, 30 x 70° and 35 x 80° oblong diffuser lenses (sold separately)
- IP20-rated D60 for indoor use
In the Box ETC Selador Desire D60 Studio Daylight Wash Luminaire with Edison Connector (Black) Hanging Yoke 25° Secondary Lens 1.5m PowerCON to Bare Ends Power Cable Edison Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Selador Desire D60 Studio Daylight Wash Luminaire with Edison Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D60 Studio Daylight Specs | Power Input | 100 to 240 VAC 50/60 Hz, universal power input | | Power Consumption | 161 W, 0.7 A, 230 V at full intensity | | LED Life | 50,000 hour LED life (to 70% intensity) | | Emitter | LED: 60 Luxeon Rebel 2.5 W | | Field Angle | Primary: 17° | | Control | DMX512 in and through via 5-pin XLR connectors | | Mode | Boost-Cold:
Degree: 22°
Candela: 189,500
Field Lumens: 7,880
Beam Lumens: 4,100
Lumens/W: 55.3
Regulated:
Degree: 22°
Candela: 174,800
Field Lumens: 7,290
Beam Lumens: 3,800
Lumens/W: 54.8 | | Rating | At 5600 K
CQS: 70
CRI: 71
DUV: 0.001
Color Fidelity: 69 | | Illuminance | 20,398 lux (1,895 fc) @ 9.84' (3.00 m) throw distance & 3.94' (1.20 m) field diameter
9,066 lux @ (842 fc) @ 15.09' (4.60 m) throw distance & 5.91' (1.80 m) field diameter
5,099 lux @ (474 fc) @ 20.01' (6.10 m) throw distance & 7.87' (2.40 m) field diameter
3,264 lux @ (303 fc) @ 24.93' (7.60 m) throw distance & 9.51' (2.90 m) field diameter | | Broadcasting System | Acoustical:
Speed: 30%; Sound Pressure Level: 25.0 dBA
Speed: 51%; Sound Pressure Level: 37.4 dBA
Speed: 60%; Sound Pressure Level: 38.6 dBA
Speed: 100%; Sound Pressure Level: 43.1 dBA | | Operating Temperature | -4 to 104°F (-20 to 40°C) | | Overall Dimensions (H x W x D) | 14.2 x 12.2 x 8.2" (361.0 x 309.0 x 209.0 mm) | | Weight | 19.1 lb (8.7 kg) | | | | Box Dimensions (LxWxH) | 21.5 x 15.0 x 12.5" |
