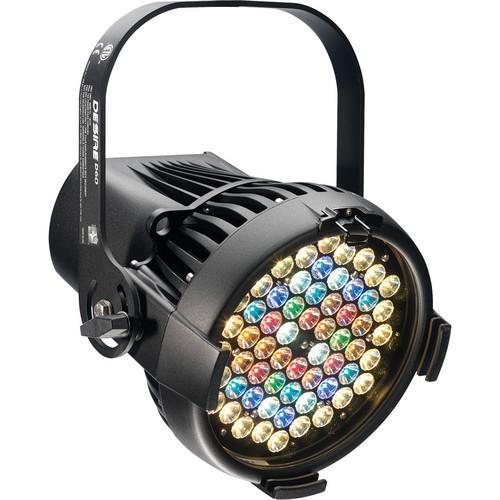

User Manual for ETC Selador Desire D60 Studio HD LED Luminaire with Edison Connector Click to enlarge the picture
Contents of the user manual for the ETC Selador Desire D60 Studio HD
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Selador Desire D60 Studio HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The black Selador Desire D60 Studio HD LED Luminaire with Edison Connector from ETC uses high-output, white light LEDs to create a suitable fixture for video, film, and other white light only applications where color temperature and skin-tone rendering are critical.The luminaire offers a rugged, die-cast enclosure, quiet, fan-cooled operation, multiple lens options, and an advanced user interface that enables easy configuration and specific features for video and film professionals.The fixture can be configured to operate under control of a studio lighting control desk or via stand-alone, no console required settings for location lighting. The D60 Studio HD uses the patented x7 Color System, mixing 5 colors with 2 different white LEDs to create brilliant HD white light with higher color-rendering qualities. It combines warm white and cool white LEDs for variable color temperature mixing. Added to this are 5 carefully chosen LED colors from the Selador x7 Color System to fill in the white LED spectral gaps.The D60 Studio HD provides a rich variable white light possible in an LED fixture. The Luminaire comes with a hanging yoke, a 25° secondary lens, and 1.5m PowerCON to Edison power cable.The fixture uses Luxeon Rebel ES emitters specified by the strictest binning standards. However, on-camera LED response varies with different cameras and settings. Note: All LED sources experience some lessening of light output and color shift over time. LED output will vary with thermal conditions. Ambient temperatures and orientation affect thermal conditions. Based on the LED manufacturer's B50 l70 specification, a Selador luminaire will achieve approx. 70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels, which may eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs. - 60 LED variable white light wash fixture
- IP20-rated for indoor use
- Power and DMX In / Through connections for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Rugged die-cast all-metal housing
- Additional secondary lenses available for multiple beam spread options
- Up to 9 fixtures (15 A maximum) can be linked via a power thru connector
- Requires power from a non-dim source
- It produces variable white light with broad spectrum richness
- Fixture comes with a 25° lens; additional lenses are sold separately
- Multiple control options including RBG, strobe, and console-free Master / Slave mode
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades
- RDM functionality for address and setting changes
- Active electronic thermal management for droop-free operation
- Low-noise fan cooling; the fan is thermostatically controlled to run as needed
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
- Studio control mode allows fixtures to be operated with no DMX console required
In the Box ETC Selador Desire D60 Studio HD LED Luminaire with Edison Connector (Black) Hanging Yoke 25° Secondary Lens 1.5m PowerCON to parrallel blade U-ground (Edison) connector power cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Selador Desire D60 Studio HD LED Luminaire with Edison Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC D60 Studio HD Specs | Power Input | 100 to 240 VAC 50/60 Hz, universal power input | | Power Consumption | 161 W, 1.35/0.68 A, 120/240 V at full intensity | | LED Life | 50,000 hours LED life (to 70% intensity) | | Emitter | LED: 60 Luxeon Rebel 2.5 W | | Field Angle | Primary: 17°
Native: 18° | | Rating | At 3,200 K
CRI: 89
CQS: 90
Color Fidelity: 91
Duv: 0.000
At 5,600 K
CRI: 92
CQS: 94
Color Fidelity: 94
Duv: 0.000 A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint. | | Mode | Boost - Cold:
Degree: 16˚
Candela: 222,200
Field Lumens: 4,920
Beam Lumens: 2,530
Lumens Per Watt: 33.4
Regulated:
Degree: 16˚
Candela: 208,500
Field Lumens: 4,610
Beam Lumens: 2,380
Lumens Per Watt: 33.7 | | Broadcasting System | Acoustical:
Fan Speed: 30%; Sound Pressure Level: 25.0 dBA
Fan Speed: 51%; Sound Pressure Level: 37.4 dBA
Fan Speed: 60%; Sound Pressure Level: 38.6 dBA
Fan Speed: 100%; Sound Pressure Level: 43.1 dBA | | Illuminance | 23,917 lux (2,222 fc) @ 10.0' (3.0 m) throw distance & 2.8' (0.9 m) field diameter
10,630 lux (988 fc) @ 15.0' (4.6 m) throw distance & 4.2' (1.3 m) field diameter
5,979 lux (556 fc) @ 20.0' (6.1 m) throw distance & 5.6' (1.7 m) field diameter
3,827 lux (356 fc) @ 25.0' (7.6 m) throw distance & 7.0' (2.1 m) field diameter | | Operating Temperature | -4 to 104°F (-20 to 40°C) | | Overall Dimensions | 9.80 x 11.42 x 12.17" (249.00 x 290.00 x 309.00 mm) | | Weight | 19.18 lb (8.70 kg) | | | | Box Dimensions (LxWxH) | 21.5 x 15.0 x 12.5" |
