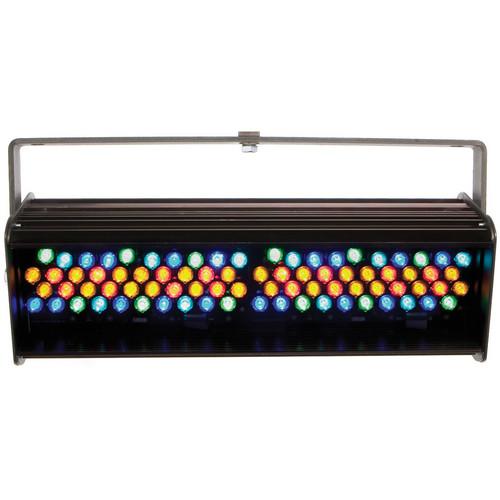

Product description The Selador Lustr 21" LED Fixture by ETC, with its 12° beam spread, is perfect for use as a fill light, downlight, stage wash light or Cyc light in theaters, studios, convention centers, schools, studios or hotels. The x7 Color System contains 80 Luxeon Rebel 2.5W LEDs in 2 independently controlled cells that produce the broadest color spectrum of any LED fixture. The LEDs are especially suited to theatrical uses where they render whites and tints that accurately depict natural skin quality. The DMX controllable Lustr features 50,000 hour LEDs that are virtually maintenance-free while the multi-voltage power supply lets the Lustr do its magic anywhere there's electricity. -
- x7 Color Mixing system - seven-color LEDs providing the broadest color spectrum in any LED fixture
- Luxeon Rebel 2.5W LED emitters
- 2 independently controlled sources
- Incandescent-quality light with low power consumption
- The permanence of a 50,000-hour source
- LED lighting technology backed by ETC's acclaimed technical service
- Interacts seamlessly with conventional sources
- Beautifully illuminates skin tones and other objects for a natural appearance with high color rendering
- Secondary lenses install in fixture front to change distribution of light (optional)
- Use a combination of (optional) vertical and horizontal lenses to spread light in both directions
-
- Rugged all-metal extruded housing
- Easy access slots for secondary lenses
- Yoke, trunnion (floor stand) and hanging bracket mounting options
- Requires power from non-dim sources
- Advanced thermal management (fan) for long LED life
- Superior control electronics for smooth low-end dimming
- ETL rated for dry indoor use
- IP 20 rated
- Available in black
- Available in 11", 21", 42", and 63" unit lengths
- 100 - 240V AC 50/60 Hz internal power supply
- DMX in and thru via 5-pin XLR connectors
- Ambient operating temperature: 34 - 104°F (1 - 43°C)
- Fixture is designed for continuous use at 104°F (40°C) ambient temperature
In the Box ETC Selador Lustr 21" LED Fixture 5' Power Lead Factory-fitted Connector Two Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Selador Lustr 21" LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Selador Lustr Specs | Rating | 2 cells: 40x Luxeon Rebel 2.5W LEDs per cell (total 80)
Lamp life: 50,000 hours
CRI: 90 | | Material | All-metal extruded | | Beam Spread | 12° | | Colors | 7-color LEDs. 90 CRI | | Color Temperature | 800 - 20,000K | | Mounting | Optional yoke, floor mount and bracket mount | | Yoke | Yes, optional for 11" and 21" versions only | | Cable | 5' (1.52 m) Neutrik PowerCon input connector to optional factory-fitted connector | | Control | DMX512, 8 channels via 5-pin XLR | | Power | 100 - 240V AC, 50 / 60Hz | | Dimensions | 21.5 x 7.1 x 6.5" (547 x 180 x 165 mm) | | Weight | 20 lb (9.1 kg) | | | | Box Dimensions (LxWxH) | 26.25 x 25.0 x 12.25" |
