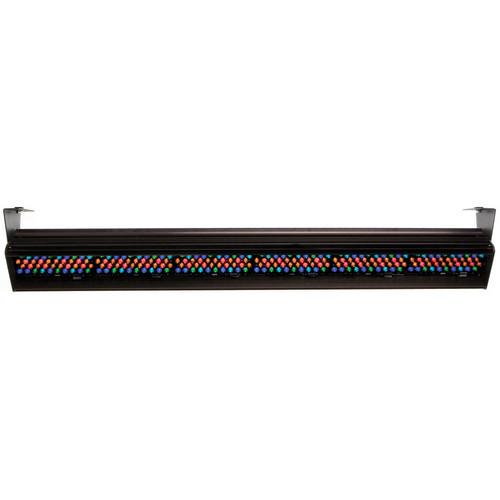

User Manual for ETC Selador Lustr 63" LED Fixture Click to enlarge the picture
Contents of the user manual for the ETC Selador Lustr 63" LED Fixture
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Selador Lustr 63" LED Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The Selador Lustr 63" LED Fixture by ETC, with its 12° beam spread, is perfect for use as a fill light, downlight, stage wash light or Cyc light in theaters, studios, convention centers, schools, studios or hotels. The x7 Color System contains 240 Luxeon Rebel 2.5W LEDs in 6 independently controlled cells that produce the broadest color spectrum of any LED fixture. The LEDs are especially suited to theatrical uses where they render whites and tints that accurately depict natural skin quality. The DMX controllable Lustr features 50,000 hour LEDs that are virtually maintenance-free while the multi-voltage power supply lets the Lustr do its magic anywhere there's electricity. -
- x7 Color Mixing system - seven-color LEDs providing the broadest color spectrum in any LED fixture
- Luxeon Rebel 2.5W LED emitters
- 6 independently controlled sources
- Incandescent-quality light with low power consumption
- The permanence of a 50,000-hour source
- LED lighting technology backed by ETC's acclaimed technical service
- Interacts seamlessly with conventional sources
- Beautifully illuminates skin tones and other objects for a natural appearance with high color rendering
- Secondary lenses install in fixture front to change distribution of light (optional)
- Use a combination of (optional) vertical and horizontal lenses to spread light in both directions
-
- Rugged all-metal extruded housing
- Easy access slots for secondary lenses
- Trunnion (floor stand) and hanging bracket mounting options
- Requires power from non-dim sources
- Advanced thermal management (fan) for long LED life
- Superior control electronics for smooth low-end dimming
- ETL rated for dry indoor use
- IP 20 rated
- Available in black
- Available in 11", 21", 42", and 63" unit lengths
- 100 - 240V AC 50/60 Hz internal power supply
- DMX in and thru via 5-pin XLR connectors
- Ambient operating temperature: 34 - 104°F (1 - 43°C)
- Fixture is designed for continuous use at 104°F (40°C) ambient temperature
In the Box ETC Selador Lustr 63" LED Fixture 5' Power Lead Factory-fitted Connector Two Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Selador Lustr 63" LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Selador Lustr Specs | Rating | 6 cells: 40x Luxeon Rebel 2.5W LEDs per cell (total 240)
Lamp life: 50,000 hours
CRI: 90 | | Material | All-metal extruded | | Beam Spread | 12° | | Colors | 1 billion | | Color Temperature | 800 - 20,000K | | Mounting | Optional floor mount and bracket mount | | Yoke | No, optional for 11" and 21" versions only | | Cable | 5' (1.52 m) Neutrik PowerCon input connector to optional factory-fitted connector | | Control | DMX512, 8 channels via 5-pin XLR | | Power | 100 - 240V AC, 50 / 60Hz | | Dimensions | 63.5 x 7.1 x 6.5" (1613 x 180 x 165 mm) | | Weight | 53 lb (24.1 kg) | | | | Box Dimensions (LxWxH) | 68.25 x 62.0 x 12.5" |
