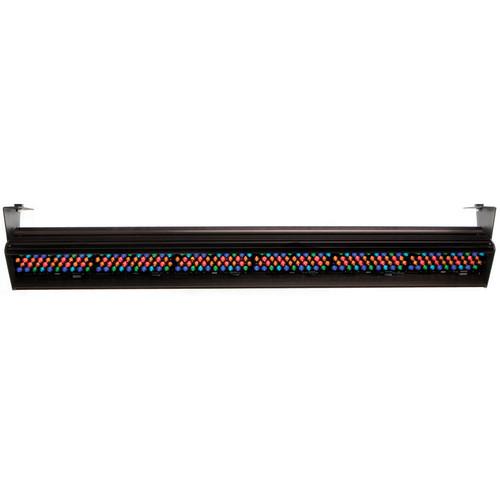

User Manual for ETC Selador Vivid-R LED Fixture - 63" Click to enlarge the picture
Contents of the user manual for the ETC Selador Vivid-R LED Fixture -
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Selador Vivid-R LED Fixture - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description In terms of color and intensity, the Selador Vivid-R LED Fixture - 63" from ETC is the dynamo of the Selador series. As they say at ETC, think oil paints in comparison to pastels! An LED light fixture for long-throw stage lighting applications, the Vivid-R series is designed for use in theatres and film and TV studios, but having increased its light output compared to the Vivid series while using less power, the Vivid-R is also ideal for churches, hotels, convention centers and schools, anywhere where bold color, high intensity lighting is required. Using ETC's trademarked x7 Color System, the Vivid-R fixtures produce the widest range of spectrally balanced, saturated and tinted colors available. Combined with highly efficient primary lenses, the Vivid-R will produce a sharp, tight beam of colored light. Maximized for deep color and high-brightness, the Vivid-R fixtures still maintain the Selador series' unique ability to match warm, tungsten white light, vibrant daylight white. and soft, tinted gel colors. Ultra-bold colors, long throw and less power consumption mean you can keep your lights burning without fear of overheating your equipment or your performers.Vivid-R fixtures utilize 40 Luxeon Rebel 2.5W LED emitters per individually controlled cell and come in four sizes: 11", 21", 42" and 63". The 63" model houses six cells and can be mounted via a trunnion or hanging bracket..Each fixture includes a 5' (1.5m) lead and a factory-fitted connector. Connector options include: bare-end pigtail, parallel-blade U-ground pigtail, 20 amp stage pin and 20 amp twistlock pigtail. - General
- Strongest color, longest throw and highest intensity LED fixtures in the Selador series
- Electrical
-
- 100V AC to 240V, 50/60 Hz universal power input
- Neutrik PowerCon input connector
- 5' power lead supplied
- Requires power from non-dim source
- LED
-
- 50,000 hour LED life
- 40 Luxeon Rebel 2.5W LED emitters per cell
- Color
-
- Exclusive x7 Color System 7-color LED array
- Vivid-R - optimized for strong saturated colors at maximum brightness
- Interacts seamlessly with conventional sources
- Illuminates skin tones for a natural appearance with high color rendering
- Optical
-
- Native tight beam spread of 19°
- Secondary lenses install in fixture front to change distribution
of light- Use a combination of vertical and horizontal lenses to spread
light in both directions- Lenses must be ordered separately
- Control
-
- DMX512 in and thru via 5-pin XLR connectors
- 63" fixture provides 6 independently controlled cells
- 8 channel control: (7 color plus intensity)
- Intensity channel minimizes color shift during dimming
- 15-bit internal control for smooth low-end dimming
- Thermal
-
- Ambient operating temperature of 32-104°F (0- 40°C)
- Fixture case can become extremely hot (approx. 85ºC) under long-term, high-output, continuous usage
- Fixture is designed for continuous usage at 40°C ambient temperature. Requires free air flow around fixture
- Fan speed thermostatically controlled for no-noise operation except as required for high heat or low air flow situations
- Physical
-
- Available in black
- Rugged all-metal extruded housing
- Easy-access slots for secondary lenses
- Combine secondary lenses for desired horizontal and vertical beam spread
In the Box ETC Selador Vivid-R LED Fixture - 63" 5' Power Lead Factory-fitted Connector Two Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Selador Vivid-R LED Fixture - 63" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Selador Vivid-R Specs | Rating | 6 cells: 40x Luxeon Rebel 2.5W LEDs per cell (total 240)
Lamp life: 50,000 hours
| | Material | All-metal extruded | | Beam Spread | 19° | | Colors | 7-color LED array | | Color Temperature | NSBM | | Mounting | Optional yoke, floor mount and bracket mount | | Yoke | Yes, optional for 11" and 21" versions only | | Cable | 5' (1.52 m) Neutrik PowerCon input connector to optional factory-fitted connector | | Control | DMX512, 8 channels via 5-pin XLR connector | | Power | 100 - 240V AC, 50 / 60Hz | | Dimensions | 63.5 x 7.1 x 7.1" (1613 x 180 x 180 mm) | | Weight | 53 lb. (24.1 kg) | | | | Box Dimensions (LxWxH) | 68.25 x 62.0 x 12.5" |
