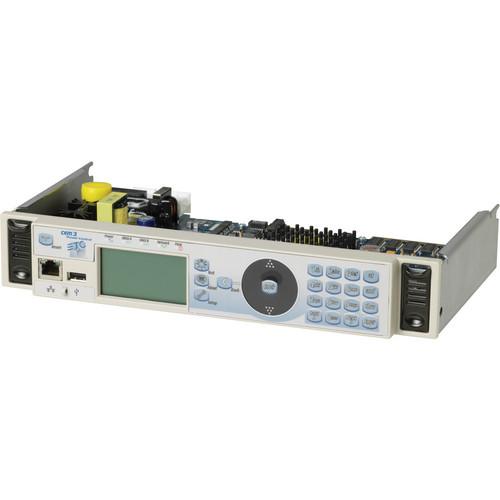

Product description ETC's CEM3 Power Controller forms the basis for essential control of your Sensor dimmer rack. It is the network information hub, input monitor and dimmer module control center, all in one. The CEM3 is designed to simplify the task of getting your lighting system up and running as quickly as possible and, more importantly, keep it running. The intuitive input panel with scroll wheel, keypad and eight-line LCD display enables full 16-bit control of each dimmer module. It is capable of handling up to 48 separate dimmer modules in a single rack and individually controlling their output.
Through the incorporation of remote device management, the CEM3 can instantly relay the health and status of your power supply to the lighting console. A system short or voltage imbalance can be diagnosed and rectified before they become a problem.
The CEM3 is fully Net3 network compliant via ethernet which enables control from multiple locations as well as vital backup and data retrieval. The front USB slot gives the user the ability to download essential settings to a thumb drive for future use and for backup in the event of power failure. - Setup
-
- Setup dimmer: Firing Mode, Curve, Scale Voltage and Name
- Patch control input
- Set rack priority per DMX port
- Data Loss Behavior: Hold last Look, Wait and fade, Play Preset
- Name the rack using ACN
- Custom dimmer numbering
- Get Config and save Config to USB
- Electrical
-
- Accepts: Single phase, Three phase WYE or Delta
- Universal Voltage range 91-139VAC and 181-259VAC
- Line feed frequencies from 47-53 Hz and 57-63 Hz
- Automatic frequency variation compensation
- Two configurable DMX512 inputs - 2500V opto-isolated
- Control Features
-
- Eight-line x 20-character graphical LCD for system configuration, live control, and status display
- Full number pad for quick access to dimmers
- Shortcut buttons for Setup, About, and live control override
- Five status LED indicators: Power, Network activity, DMX-A, DMX-B, and Panic
- 64 user-programmable presets
- Single Panic circuit with flexible programming
- Replacement CEM3 automatically loads rack configuration
- Configuration backups saved on USB or network
- Dimmer outputs regulate to maintain constant power ±1V
- Individual output scale voltage settings for load wiring compensation
- Selectable Firing Modes: Normal, Forward Phase, Reverse Phase, Dimmer Doubled, Sinewave, and Fluorescent
- Control Modes: Dimmed, Switched, Latch/lock, Always On, and Off
- Selectable Dimmer Output Curves: Linear, Modified Linear, Square, Modified Square, and Sensor 2.0, and five custom curves
- 16-Bit fade resolution, >30,000-Step Resolution per 1/2 cycle
- Selectable Data Loss Behavior
- Diagnostic Feedback
-
- All Sensor racks with CEM3 modules include basic system diagnostic reporting
- Standard rack feedback includes: DMX input status, Rack power status, and Rack temperature
- Advanced Features. Provides dimmer specific status and load feedback: requires AF dimmer rack and AF dimmer modules
- Status Menu
-
- modules: module type, mode, control source, and module location, overtemp
- AF modules: module removed, breaker trip, recorded and actual load
- Rack: temperature, rack type, Run Hours
- Network: IP address, SubNet mask, Gateway and active link
- Rack Data Ports: status for DMXA and B, and sACN
- About Rack Power: frequency, voltage per phase, and voltage headroom
- About Software: version number
- Additional Features
-
- Dimmer Doubling - doubles the quantity of circuits you have without having to rewire your electrical facilities - supported only at 60hz. Dimmers set as Dimmer Doubled shall allow a single dimmer to set two different levels on one dimmer circuit by splitting the AC power into positive and negative half cycles. Additional equipment is required
- Backup Looks - 64 Presets with programmable fade times and priority allowing for take-control, pile on, or live control failover sources. In the event of catastrophic loss of data basic control of your system is still possible
- Net3 Uplink - connect to Net3 lighting network using the Ethernet jack on the front of the control module
- Local Live Control - Set Levels, Preset Activation, and Dimmer Check
- Quick Setup Wizard - builds a simple system in a single step
- Power Outage Options - Ride Through supports the processor electronics for a few seconds during a power outage while Battery Pack powers the processor electronics as long as the battery remains charged
In the Box ETC Sensor CEM3 Dimmer Power Control for Sensor3 Dimmer Rack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Sensor CEM3 Dimmer Power Control for Sensor3 Dimmer Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 7140A1003 Specs | Inputs | 2 x DMX
1 x Cat 5 RJ45 | | Power Requirement | Universal; Single or 3-Phase
91-139/181-259VAC | | Environment Requirements | UL/cUL and CE Compliant | | Dimensions | 7.0 x 11.8 x 2.1" (18 x 30 x 5.2 cm) | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 14.4 x 12.5 x 6.0" |
